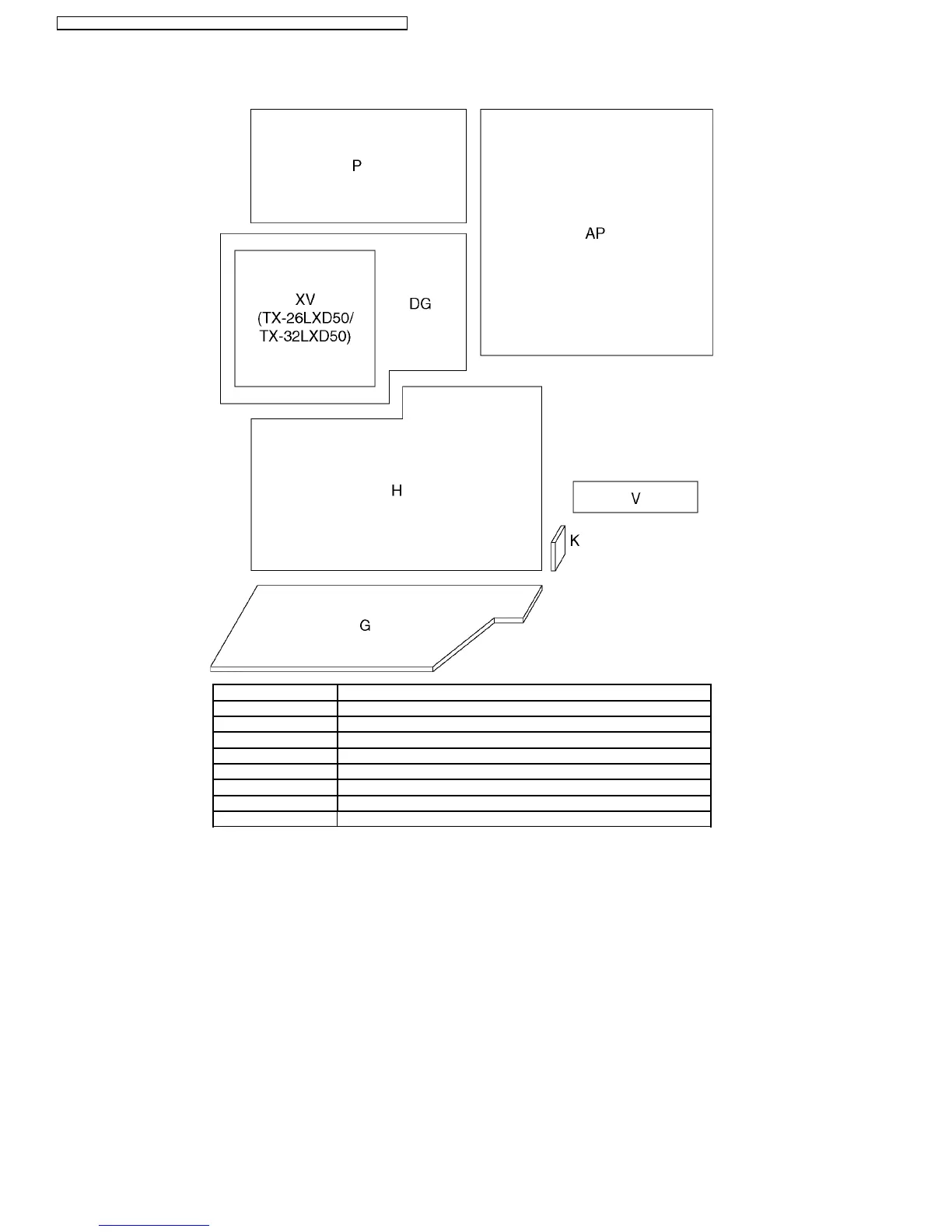

5 Chassis Board Layout
Board Name Function
AP-Board Regulator
DG-Board Global Core, A/D Converter, MCU
H-Board AV connector, TV Tuner, AV Switch
K-Board Power Switch
G-Board Front AV & HP connector, Key Switch
P-Board DC Power Supply
V-Board Remote Receiver, LED
XV-Board DVB Tuner
8
TX-32LXD50 / TX-26LXD50 / TX-32LX50F / TX-32LX50P / TX-26LX50F / TX-26LX50P
