Ornament Panel
1. The Ornament Panel is secured by (3) striker pins.
Grip the Ornament Panel at the side corner pull to
remove.
Cabinet ( Top )
1. Remove (11) Screws
Speaker Grille
1. Remove (2) screws.
Speaker Ass’s
1. Remove (10) screws.

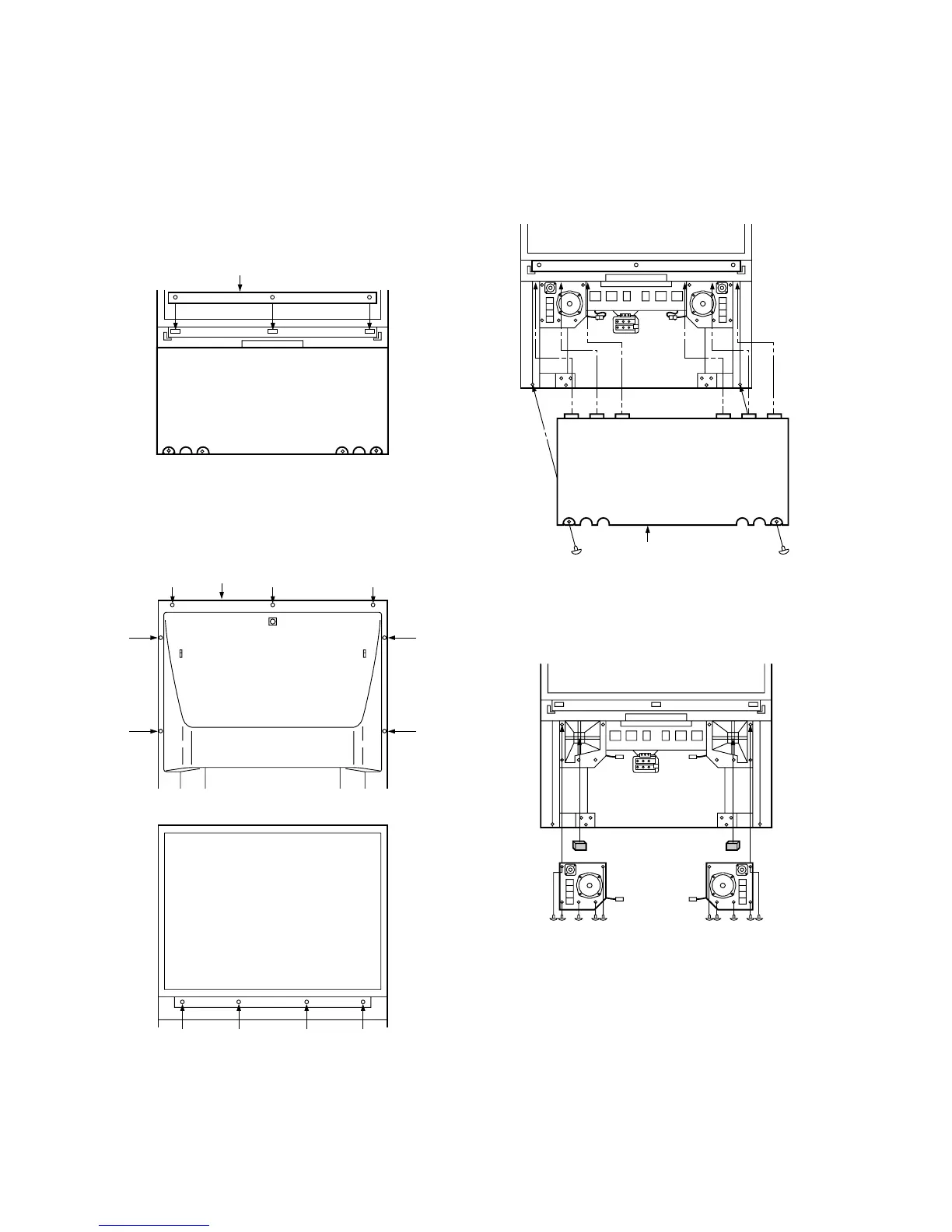

Ornament Panel
(11) Screws
Top Cabinet
(11) Screws
(2) Screws
Speaker Grille
(10) Screws
Note: Board ground wires may have to be disconnected to disassemble some boards. All ground wires must be
reconnected using jumper leads if necessary before power is applied to Receiver for service.
