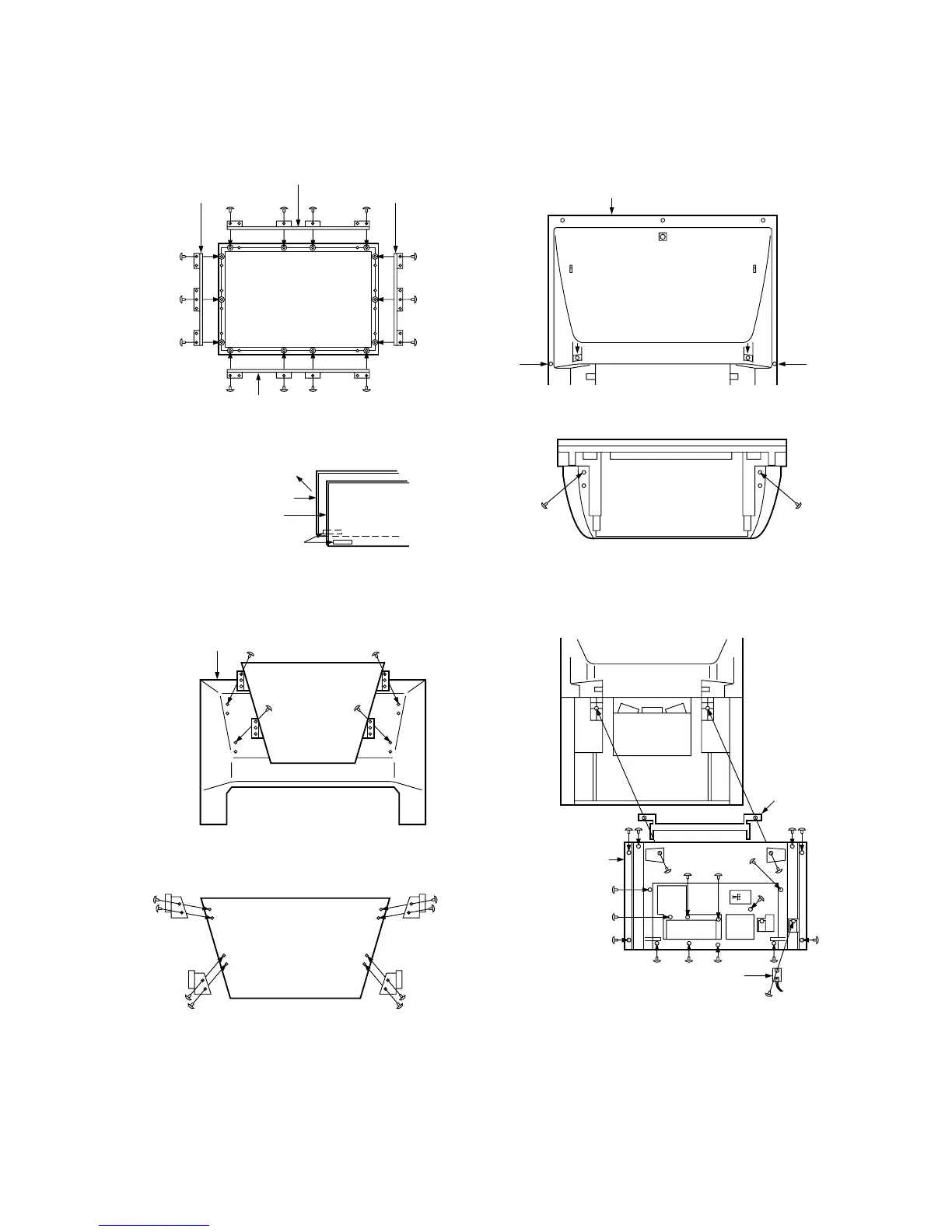

Screen
1. Remove (14) screws.
Mirror
1. Remove (4) screws.
2. Remove (8) screws.
Rear Cover (Top)
1. Remove (4) screws.
2. Remove (2) screws.
Rear Cover (Bottom)
1. Remove (18) screws.
2. Remove (1) screws.
Screen Frame (R) Screen Frame (L)
Top Cabinet
Screen Frame (Top)
Screen Frame (Bottom)
(14) Screws
Screen Lenticular Lens
Screen Fresnel Lens
Front Side
Part No. Lavel
Mirror (Rear View)
(4) Screws
Rear Cover (Top)
Mirror (Rear View)
(8) Screws
(4) Screws
Top Cabinet
Screw
(18) Screws
AC Cord Cover
(1) Screw
plate
Rear Cover
(Bottom)
