Connecting the Audio Out Terminals (TX-86PW100A & TX-76PW100A)

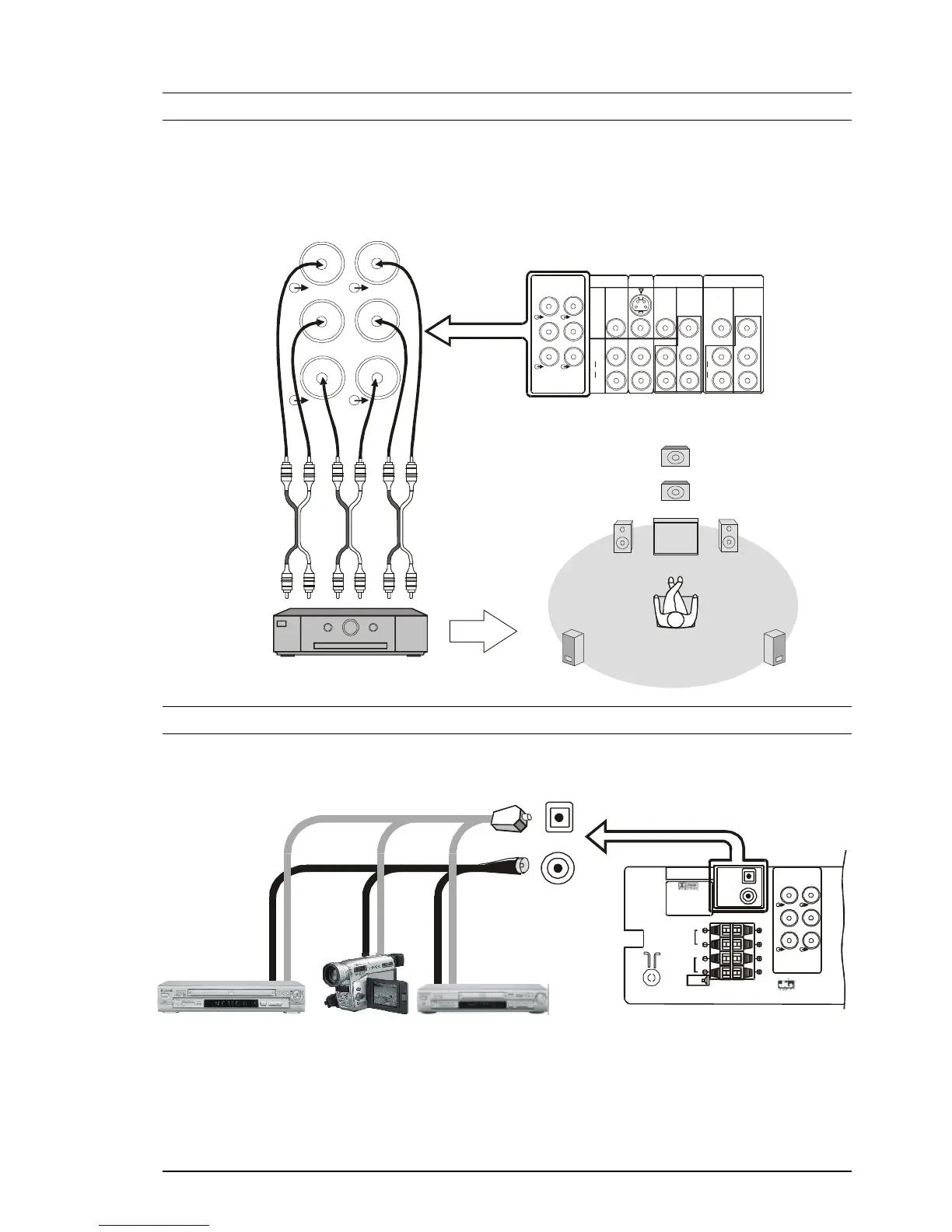

The Audio Out sockets on the rear of the TV allow you to create a custom sound system using an
external amplifier and external speakers.
You may decide, for example to use an external DTS/Dolby Digital amplifier to connect external left and
right front speakers, left and right rear surround speakers and a subwoofer (LFE speaker) as shown
below.
Connecting the Digital Audio Input (TX-86PW100A & TX-76PW100A)
Additional equipment can be connected to the rear of the AV1/AV2/AV3/AV4 and via the two digital audio
input sockets (coaxial or optical).
MONITOR
OUT
AV1
IN
S-VIDEO
VIDEO
AV2
IN
AV4
IN
AUDIO
L
R
AUDIO
L
R
MONO
MONO
MONO
VIDEO
YY
P
B
P
B
P
R
P
R
DVD
Y-P-P
B R
DVD
Y-P-P
B R
L
L
R
R
C
W
FRONT
REAR
CENTRE
SUB WOOFER
Centre
Speaker
Subwoofer
Speaker
Left
Speaker
Front
Right
Speaker
Front
Left Rear
Surround
Speaker
Right
Surround
Speaker
Rear
AUDIO - OUT
L
L
R
R
C
W
FRONT REAR
CENTRE SUB WOOFER
DTS/Dolby Digital Amplifier
To Speakers
Use Phono (RCA)
connectors.
(L)(R) (R)(L)
Front
Centre Sub
woofer
Rear
OPTICAL
OPTICAL CABLE
COAXIAL
COAXIAL CABLE
Camcorder
DVD PlayerVideo Disk Player
PCM/AC-3
DIGITAL AUDIO INPUT
EXT
FRONT
OPTICAL
AUDIO - OUT
L
L
R
R
C
W
FRONT
REAR
CENTRE
SUB WOOFER
COAXIAL
REAR
L
L
R
R
