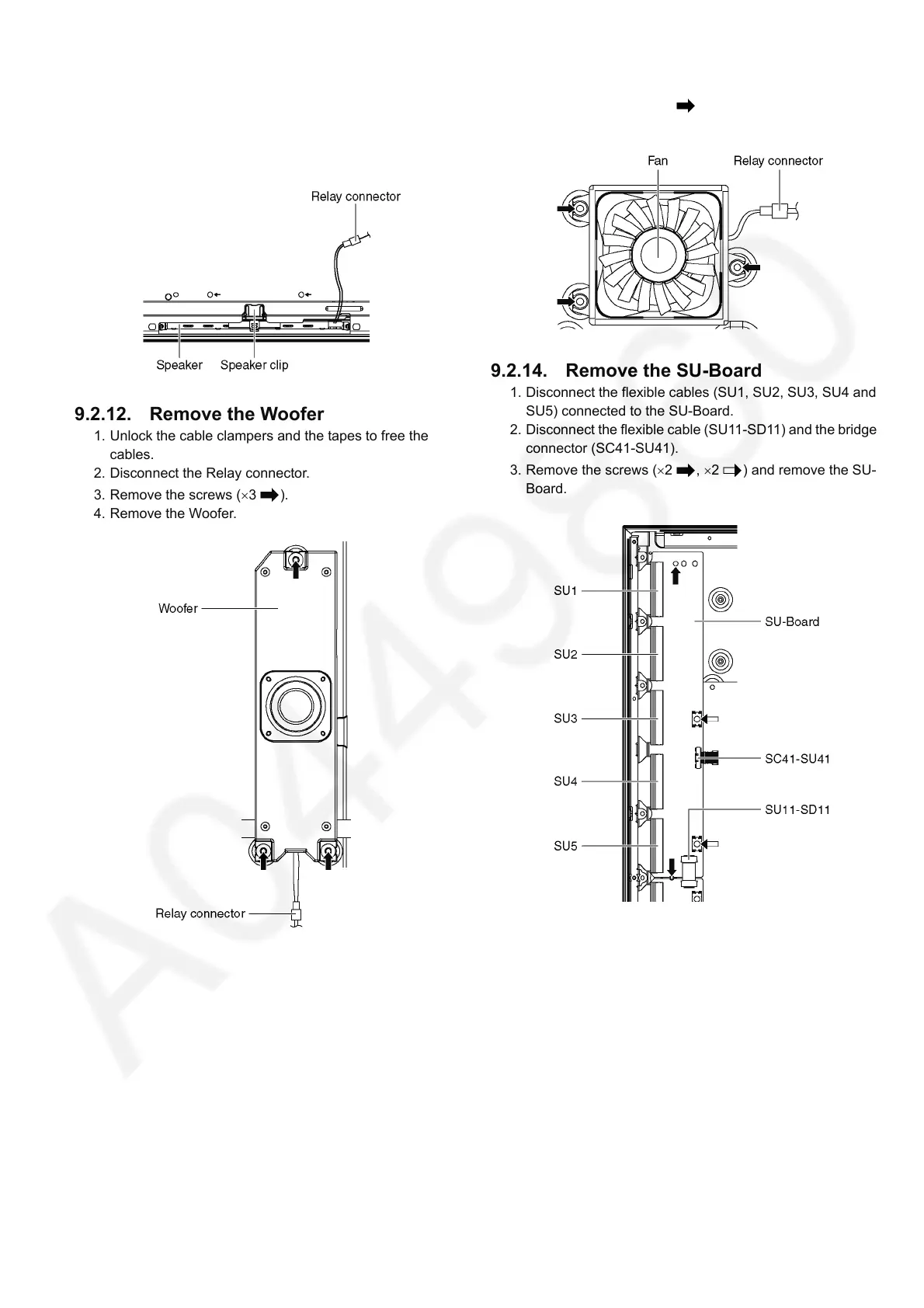

9.2.11. Remove the Speakers
1. Unlock the tapes to free the cables.
2. Disconnect the Relay connector.
3. Remove the Speaker clip (each) and remove the
Speakers (L, R).
9.2.12. Remove the Woofer
1. Unlock the cable clampers and the tapes to free the
cables.
2. Disconnect the Relay connector.
3. Remove the screws (×3 ).
4. Remove the Woofer.
9.2.13. Remove the Fan
1. Remove the screws (×3 ).
2. Remove the Relay connector and remove the Fan.
9.2.14. Remove the SU-Board
1. Disconnect the flexible cables (SU1, SU2, SU3, SU4 and
SU5) connected to the SU-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).
3. Remove the screws (×2 , ×2 ) and remove the SU-
Board.
