Wall-hanging bracket

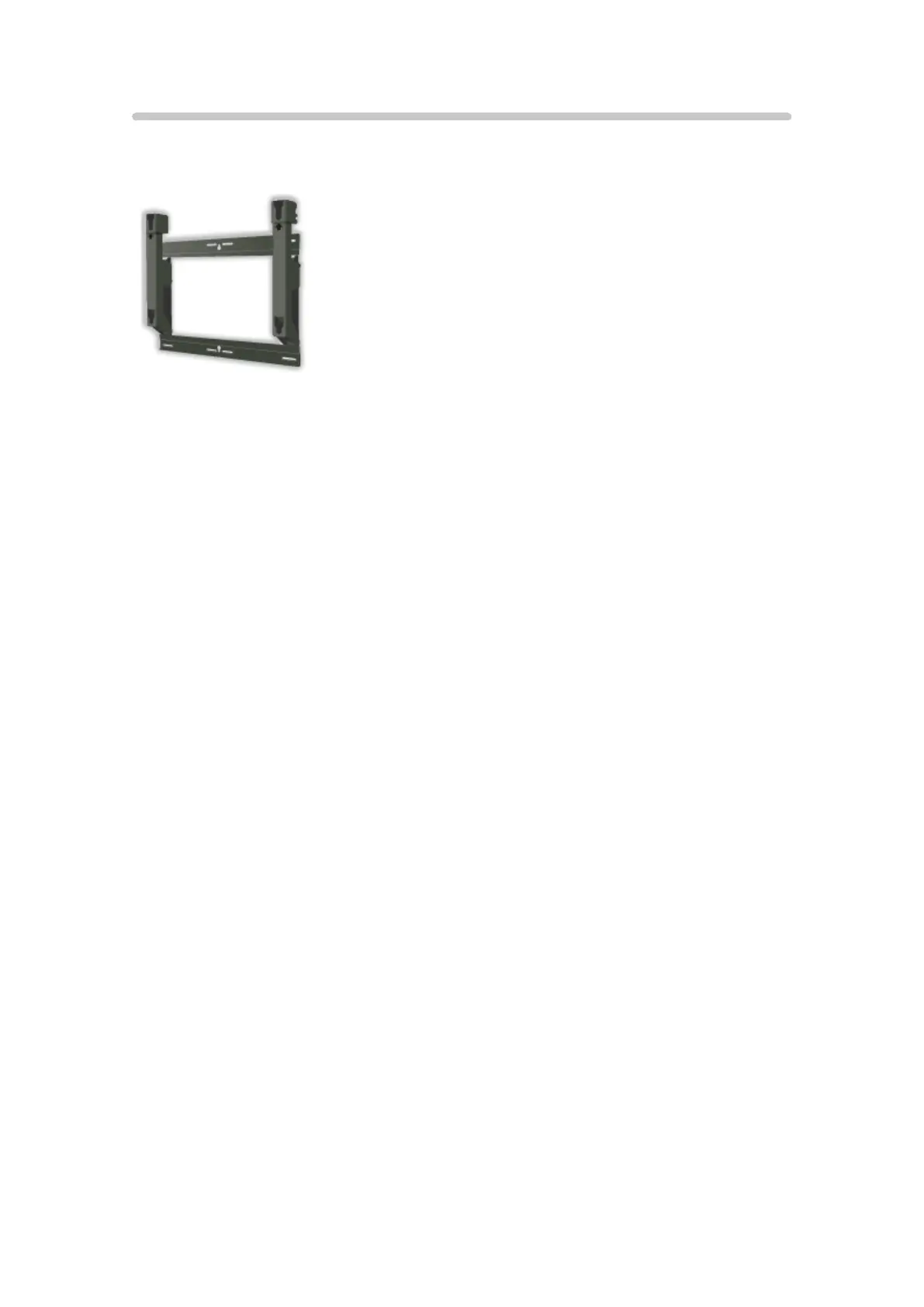

■ Wall-hanging bracket
●
TY-WK4P1RW
– For 42 / 50 inches model
– Tilting angle for the TV:
0 (vertical) to 20 degrees (42 inches model)
0 (vertical) to 10 degrees (50 inches model)
●
TY-WK5P1RW
– For 55 / 60 inches model
– Tilting angle for the TV:
0 (vertical) to 15 degrees (55 inches model)
0 (vertical) to 20 degrees (60 inches model)
●
TY-WK6P1RW
– For 65 inches model
– Tilting angle for the TV:
0 (vertical) to 10 degrees
= Warning =
●
Using other wall-hanging brackets, or installing a wall-hanging bracket
by yourself have the risk of personal injury and product damage. In order
to maintain the unit’s performance and safety, be absolutely sure to ask
your dealer or a licensed contractor to secure the wall-hanging brackets.
Any damage caused by installing without a qualified installer will void your
warranty.
●
Carefully read the instructions accompanying optional accessories, and be
absolutely sure to take steps to prevent the TV from falling off.
●
Handle the TV carefully during installation since subjecting it to impact or
other forces may cause product damage.
●
Take care when fixing wall brackets to the wall. Always ensure that there
are no electrical cables or pipes in the wall before hanging bracket.
