Foam mat or thick
soft cloth
WARNING
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Antenna terminal Pin terminals HDMI terminal
greenbluered
green
Firmly tighten by hand.
Match colors of plugs and terminals.
Insert firmly.
Insert firmly.
Reference of connection

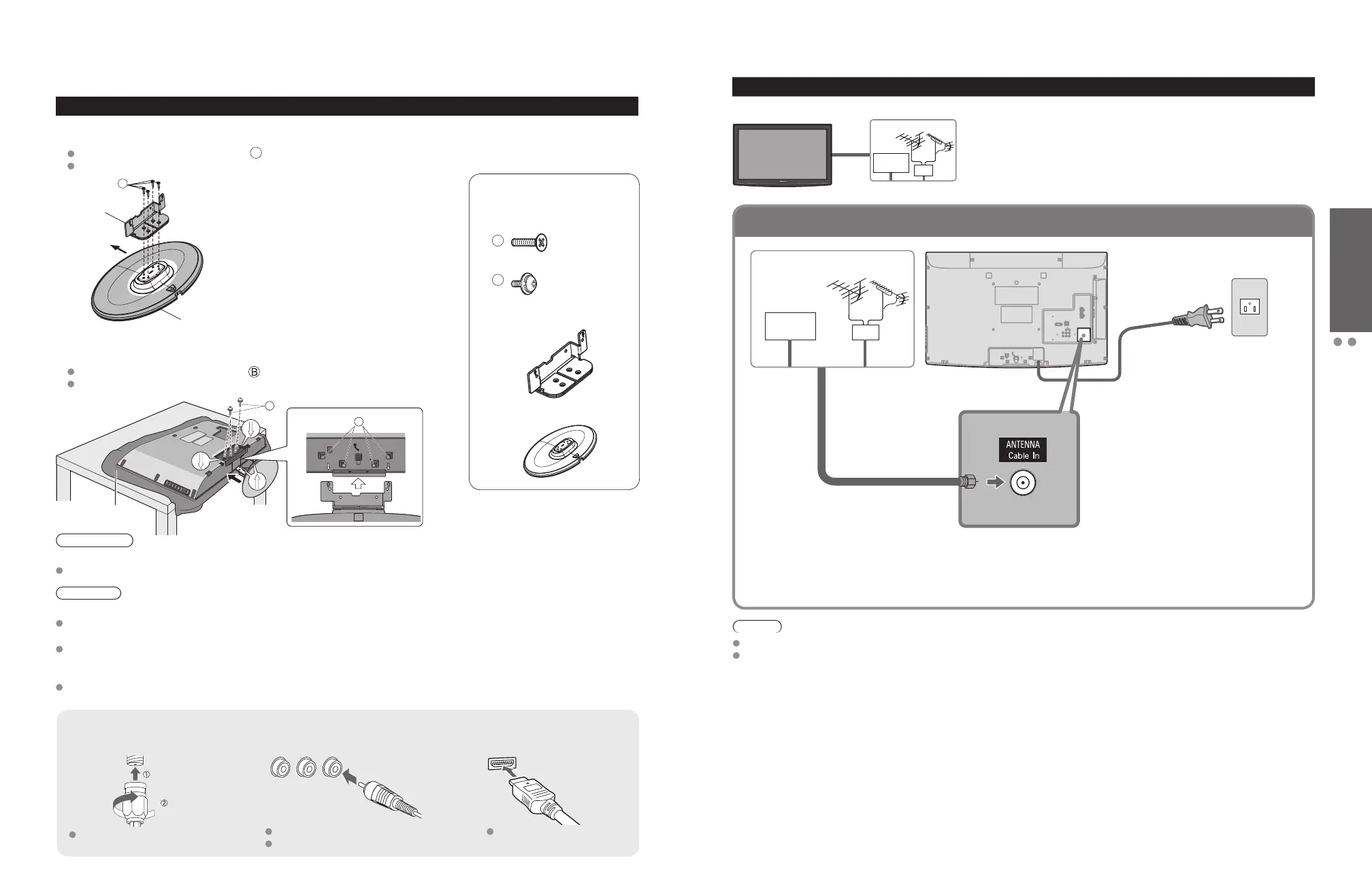

Attaching the pedestal to TV
Basic Connection
Note
Not all cables and external equipment shown in this book are supplied with the TV.
For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.
Example
Connecting Antenna (To watch TV)
Cable TV
VHF/UHF Antenna
TV
Cable
•
You need to subscribe to a cable TV service to enjoy viewing their programming.
•
To view high-definition programming select the correct video input. (p. 20)
Power Cord
(Connect after all the
other connections.)
Back of the TV
Cable TV
AC 110-127 V
60 Hz
VHF/
UHF A
ntenna
or
