Advanced
•

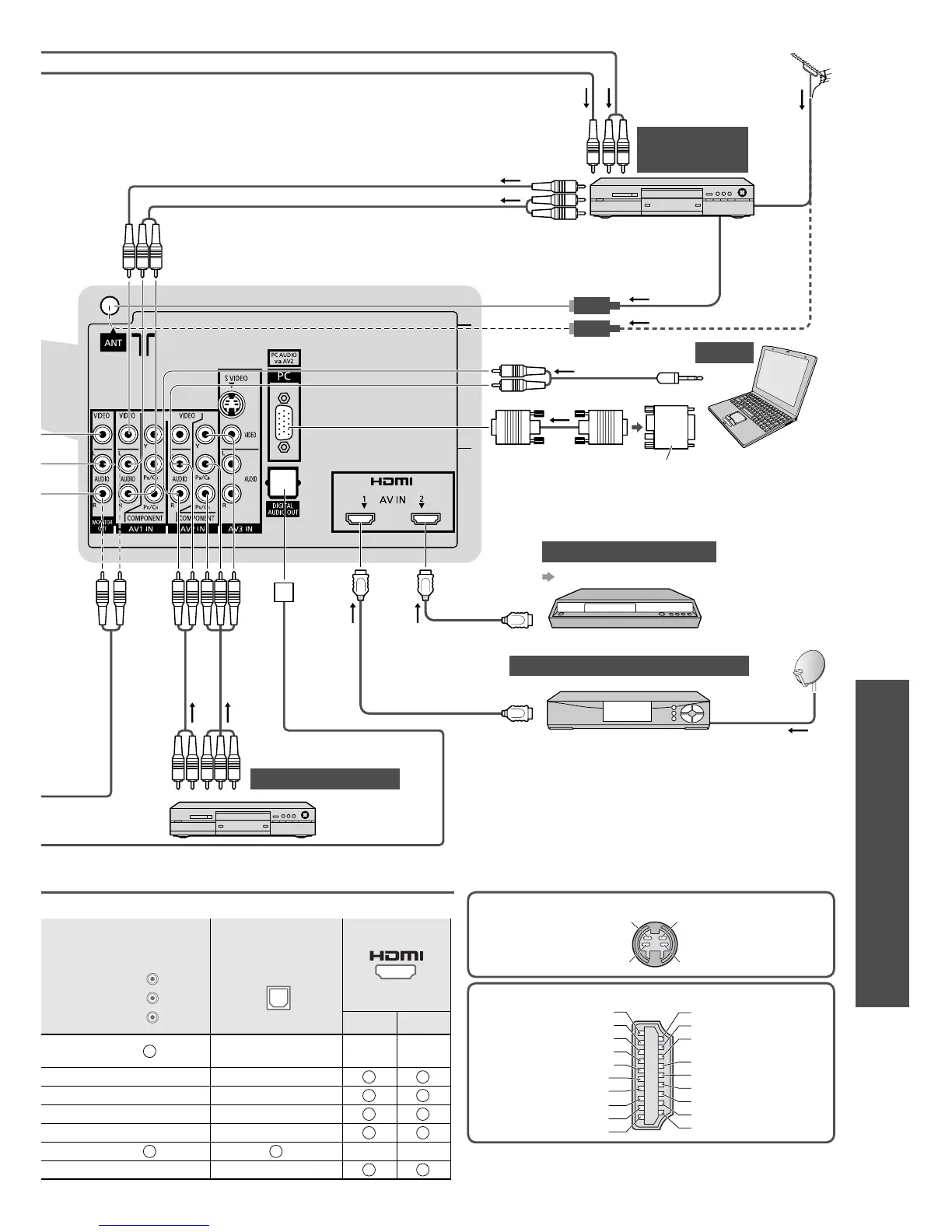

External Equipment
MONITOR
OUT
VIDEO
AUDIO
L
R
DIGITAL
AUDIO OUT
1 2
43
PC
(Viewing)(Listening)
Conversion adapter (if necessary)
Set top box
DVD Recorder /
VCR
RF cable
To watch satellite broadcasts
To record /
playback
To watch DVDs
DVD player
Fully wired HDMI
compliant cable
(Viewing)
(Listening)
Computer
or
Optical digital audio cable
HDMI equipment
DVD Recorder
Fully wired HDMI
compliant cable
S VIDEO 4 pin terminal
Chrominance in
Chrominance earth
Luminance in
Luminance earth
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield
11
TMDS Data0í 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2í 3
TMDS Data2+ 1
18 +5V Power
16 SDA
14 Reserved
(in cable but N.C. on device)
12 TMDS Clockí
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1í
4 TMDS Data1+
2 TMDS Data2 Shield
HDMI terminal
•
Connect the S VIDEO or VIDEO terminal when using
AV3 / AV4 IN terminals.
•
Connect the COMPONENT or VIDEO terminal when
using AV1 / AV2 IN terminals.
