Accessories / Options
Installing / removing remote’s batteries
1
Pull open
Hook
2
Note the correct
polarity (+ or -)
Close
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
Do not mix old and new batteries.
R
eplace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
Do not burn or break up batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
Make sure you dispose of batteries correctly.
Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.
Do not disassemble or modify the remote control.

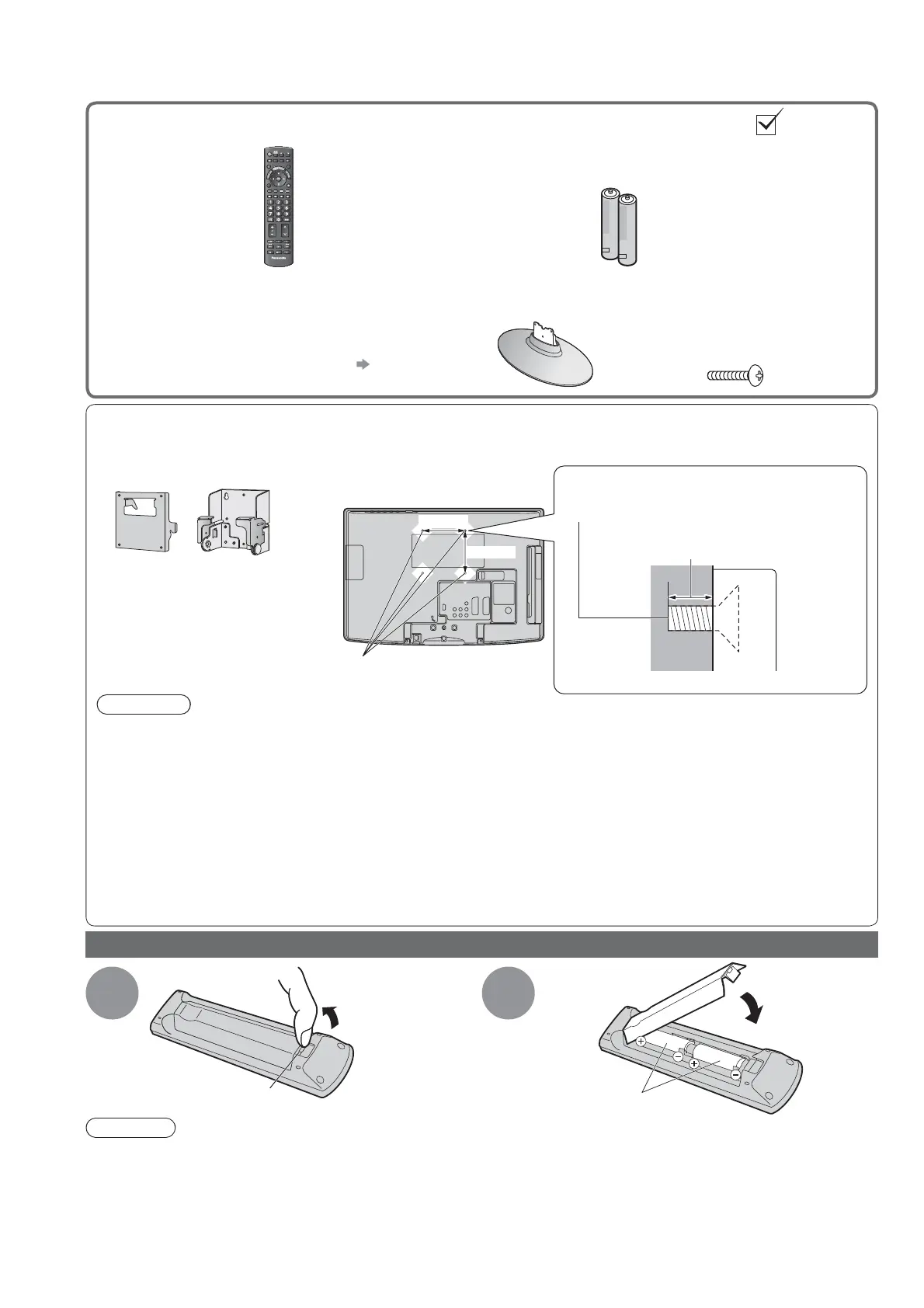

Standard accessories Check that you have the accessories and items shown
Remote Control
N2QAYB000328
TV
EXIT
DIRECT TV REC
ASPECT
OPTION
RETURN
TEXT
PROGRAMME
STTL
INDEX HOLD
MENU
N
INPUT
TV AV
Batteries for the
Remote Control (2)
R6 (UM3)
Operating Instructions
Pan European
Guarantee Card
Pedestal
7A7040084A
(TX-L19C20B)
7A7040086A
(TX-L19C20BW)
p. 7
Assembly screw for Pedestal (3)
XTB4+15JFJK
(TX-L19C20B)
XTB4+15JFJ
(TX-L19C20BW)
Optional accessories
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
(View from the side)
Rear of the TV
Holes for wall-hanging
bracket installation
100 mm
Depth of screw:
minimum 9 mm, maximum 12 mm
100 mm
Screw for fixing the TV onto the
wall-hanging bracket
(not supplied with the TV)
Wall-hanging bracket
TY-WK23LR2W
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal
injury and product damage. In order to maintain the unit’s performance and safety, be sure to ask your
dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing
without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product
damage which will void your warranty.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give
off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal
within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an
extended period of time.
To Next Page
