HDMI
AV 1
COMPONENT
AUDIO
OUT
PC
AUDIO IN
AV 2
RGB
VIDEO
S VIDEO
RGB
VIDEO
PB
PR
L
R
Y
L
R
60
Types of connectable equipment to each terminal
Terminal
Recording / Playback
(equipment)
AV1 AV2
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use amplifier with speaker system
Q-Link
VIERA Link
(with HDMI) (with HDMI)
Direct TV Recording
: Recommended Connection
External Equipment
Conversion adapter
(if necessary)
DVD Recorder
HDMI equipment
Fully wired HDMI
compliant cable

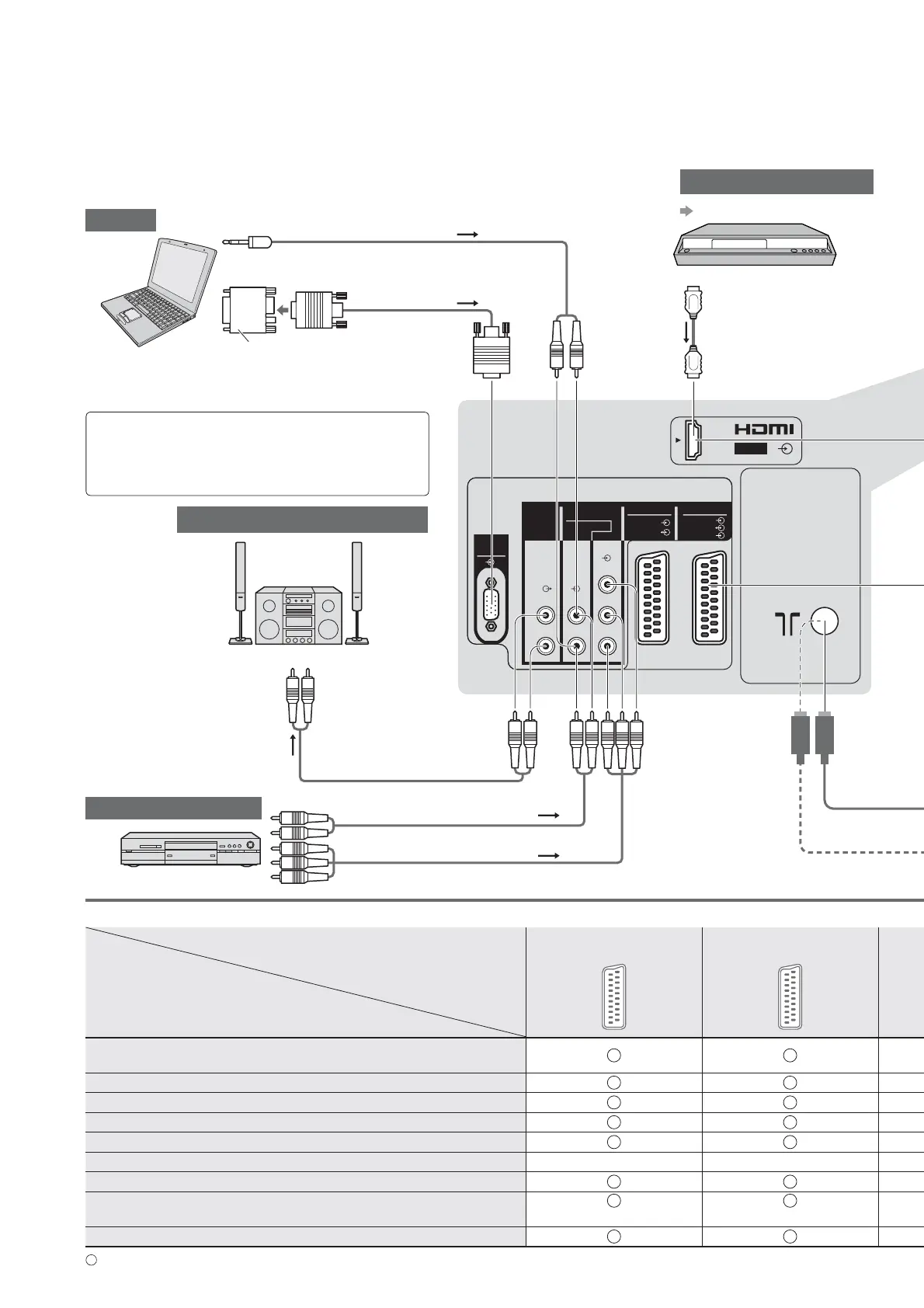

These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifications (p. 71).
Computer
PC
To watch DVDs
(Viewing)
RCA
cable
(Listening)
DVD player
To listen with speakers
“HDMI connection” (p. 63)
(Viewing)
(Listening)
Amplifier with speaker system
To enjoy the sound from the external equipment
in multi-channel sound (e.g. Dolby Digital
5.1ch), connect the equipment to the amplifier.
For the connections, read the manuals of the
equipment and amplifier.
To Next Page
