Basic Connection
11
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

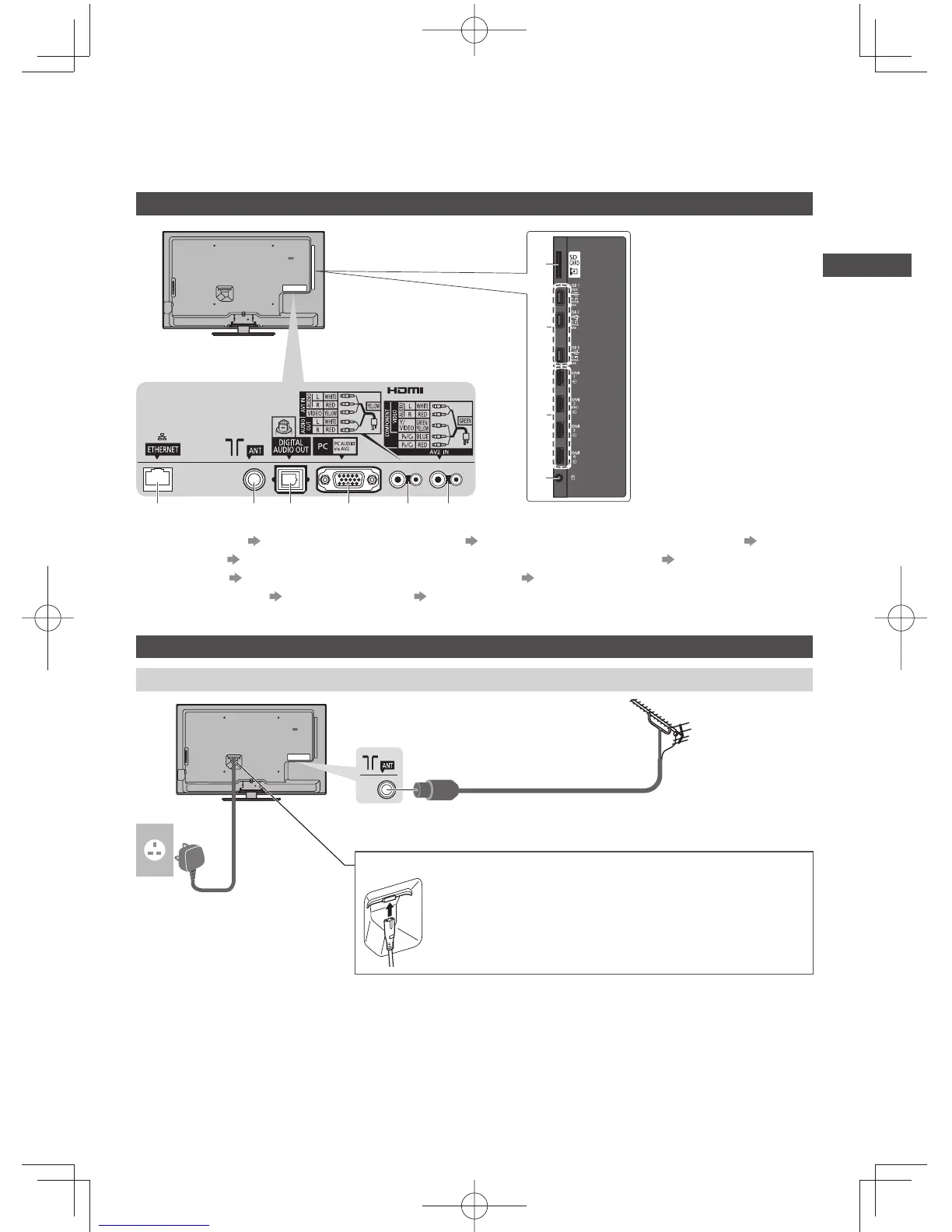

Terminals
6 7 8 9 10 5
2
4
3
1
1
SD Card slot (p. 50, 54)
2
USB 1 - 3 (p. 50, 54, 83)
3
HDMI1 - 4 (p. 12, 82)
4
Headphone jack (p. 83)
5
ETHERNET (p. 13, 66)
6
Antenna terminal (see below)
7
DIGITAL AUDIO OUT (p. 82)
8
PC (p. 83)
9
AV1 IN / AUDIO OUT (p. 82)
10
AV2 IN (p. 82, 83)
Connections
Mains lead and aerial
■ Digital TV, Analogue TV
AC 220 V
50 / 60 Hz
Mains lead
Aerial
RF cable
■ Mains lead
Insert the mains plug (supplied) firmly into place.
●
When disconnecting the mains lead, be absolutely sure to
disconnect the mains plug at the socket outlet first.
To Next Page
