Products, functions and technical data
Bi-Bloc system
Outdoor unit
1,340
400 355 320
900
320
2
3
620
140 140
1
24

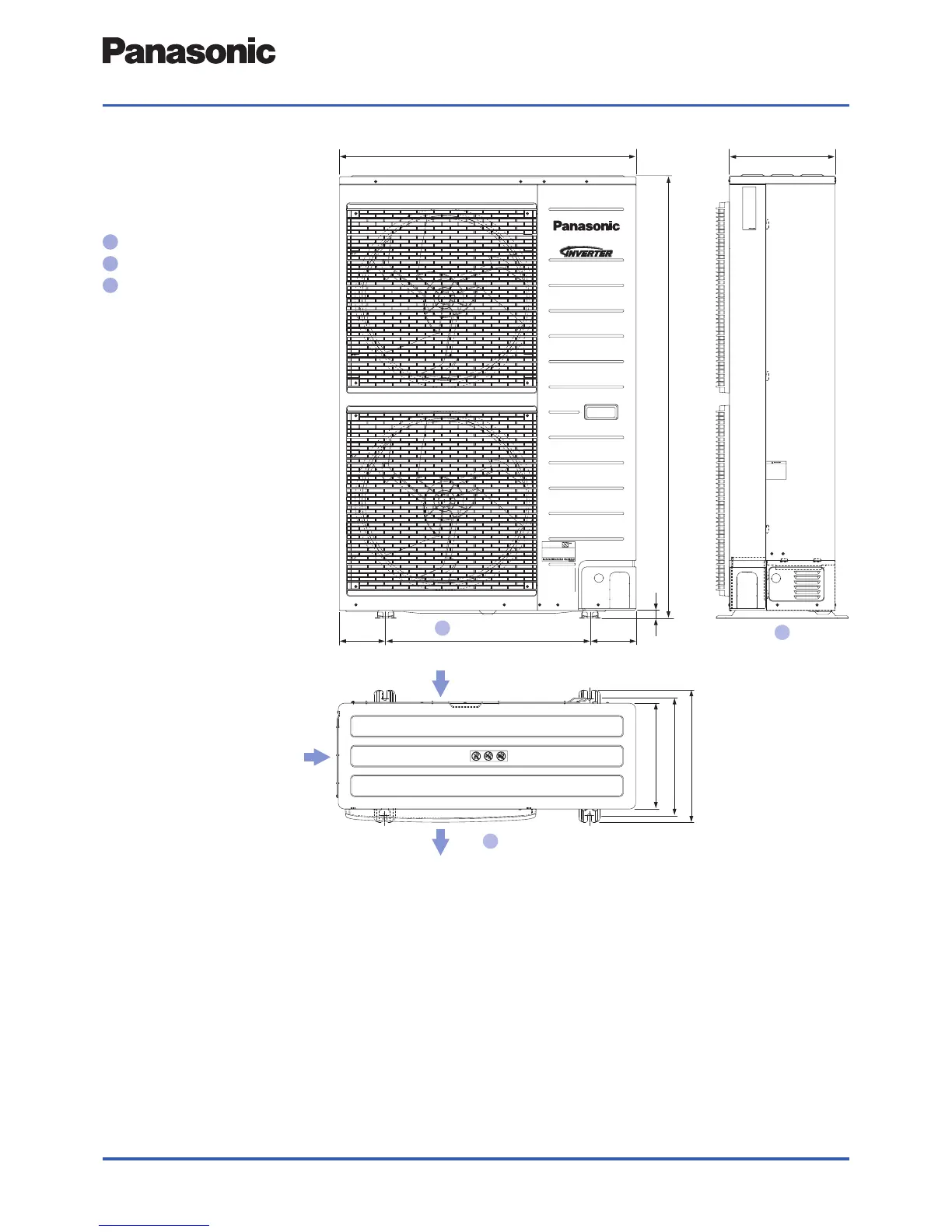

Dimensional drawing
for outdoor unit with
two fans
1
Front view
2
Side view
3
Top view
Dimensions of outdoor unit with two fans in mm. The air ow is depicted by arrows.
