Project Design
Planning of installation room

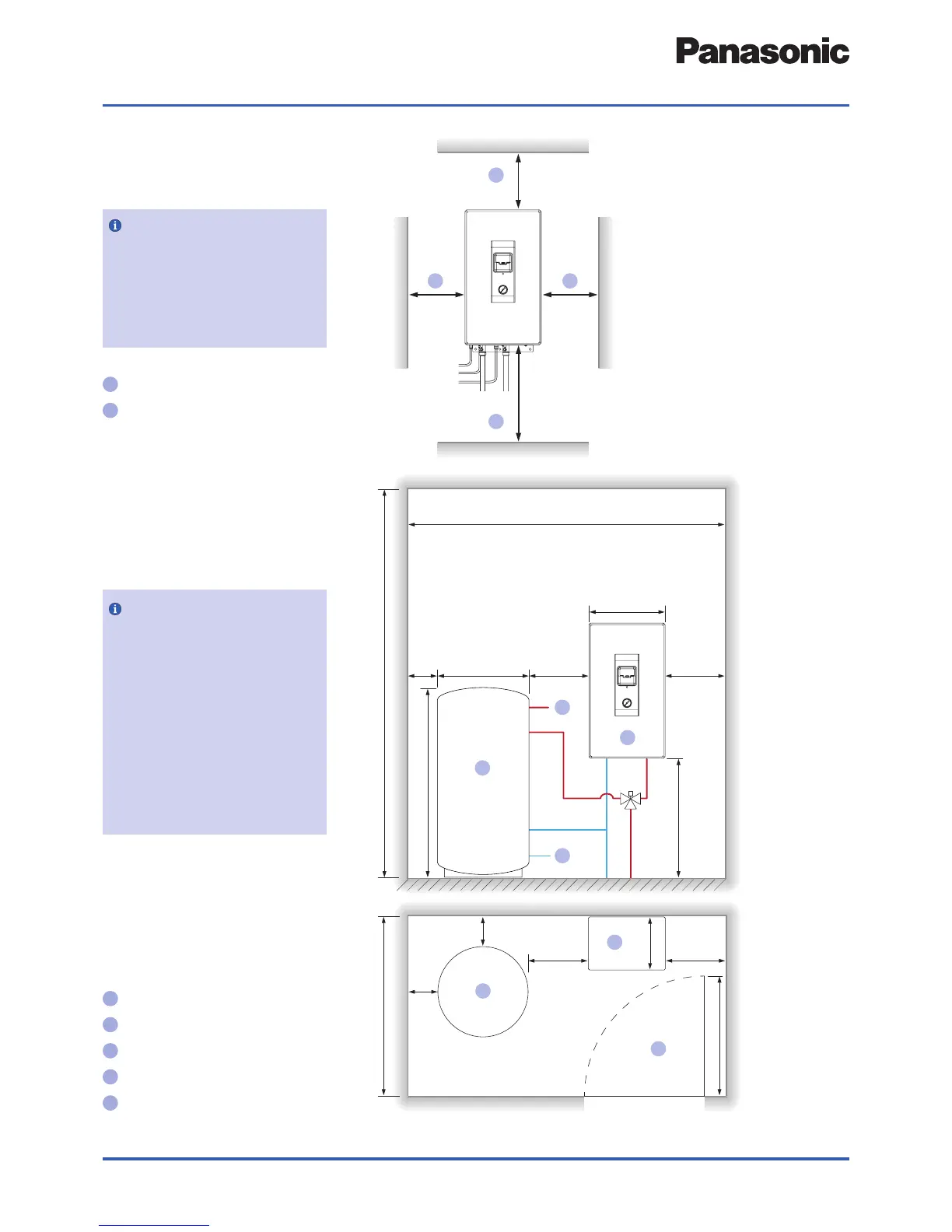

Assembly conditions and minimum distances from hydromodule
1
Minimum distance 300 mm
2
Minimum distance 600 mm
Minimum distances from the hydro-
module to walls, ceiling and oor
1
Hot water tank
2
Hydromodule
3
Hot water
4
Cold water
5
Door
1
1
2
1
3
4
502
580 400400
200
200
200
1,340
400400
~ 2.5 m²
800
800
353
1
2
5
1
2
2,100
Note
Because of an installation room
volume of 6.25 m³ in the example,
it is suitable only for Aquarea LT
single phase devices up to 9 kW
heating capacity. The use of
a device with a larger amount
of refrigerant would exceed
the practical limit value c
(for R410A c = 0.44 kg / m³ and
for R407C c = 0.31 kg / m³)
Note
The compressor is located in
the outdoor unit of the bi-bloc
system. The only noise from the
hydromodule will solely come
from circulation pump operation.
Example of an installation
room with a hydromodule
and hot water tank
WH-TD20E3E5
Side view
Top view
