Placing Originals (Copy)
■■
■■

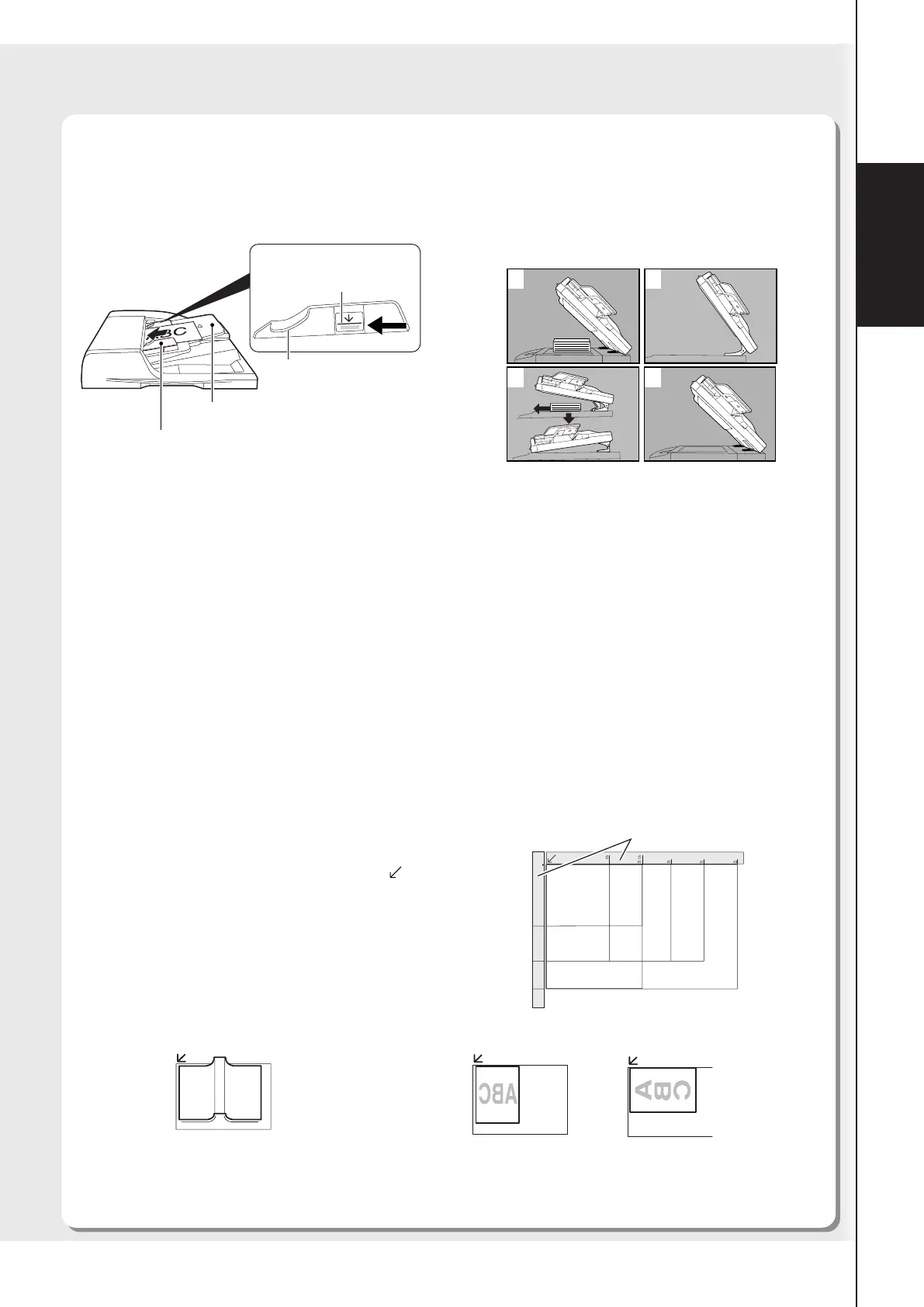

■ How to Place Originals
● On the ADF
Notice for Platen
Align the original to top left corner mark ( ).
● If the original is not positioned properly, a portion of the
original may not be copied.
● For originals smaller than 5.5" x 8.5" (Invoice) size,
position the original within the 5.5" x 8.5" area and
select 5.5" x 8.5".
Ex: Book Original Ex: Sheet Original
● On the Platen
Set the originals up to the
upper limit indicator.
ADF Tray
Original Guides
Adjust to the original’s width
Upper Guide
Upper Limit
Indicator
When copying a thick Booklet, open the
ADF and verify that the ADF Hinge was
returned to original position if the rear of
the ADF was raised.
Notice for ADF
● Once the originals are set, press Start key, and do not touch the originals as it may cause them to jam.
● Before setting the originals on the ADF, make sure they are free of clips or staples.
Originals that cannot be used
● Drawing papers, Transparencies, Labeling paper, Heavy weight papers, Thin Art papers, Film, Thermal
papers
Inappropriate Originals
● Papers which are curled, ripped, creased, folded, punched, glued, stapled or self adhesive.
● Originals of assorted (mixed) width size (except for the combination of Ledger and Letter)
● Paste-ups
● Pressure sensitive or carbon backed papers
● Paper with excessive curl
● Stapled originals
● Freshly printed copies from a laser printer which is still wet with color ink or whiteout.
● Originals with fresh White-Out (Liquid paper correction fluid)
Original Guides
INV
INV
LTR
LGL
LDR
LTR
LDR
INV
LTR
LGL
INV
INVOICE
INVOICE-R
LETTER-R
LEGAL
LEDGER
LETTER
LTR
