User Manual For CYCLONE FX Programmers 74
Cyclone images, you can view and modify properties, you can modify licenses and see the
Cyclone screen remotely.
8.4.2.1 The Images Tab
The Images tab allows to modify the Cyclone images both in internal Cyclone memory and in
external memory cards. To add a new image to the Cyclone, click on the “Add Image Internal”
button and selected the image you want to add. For the changes to take effect, the “Apply
Changes” button needs to be clicked, this will place the image in the Cyclone memory.

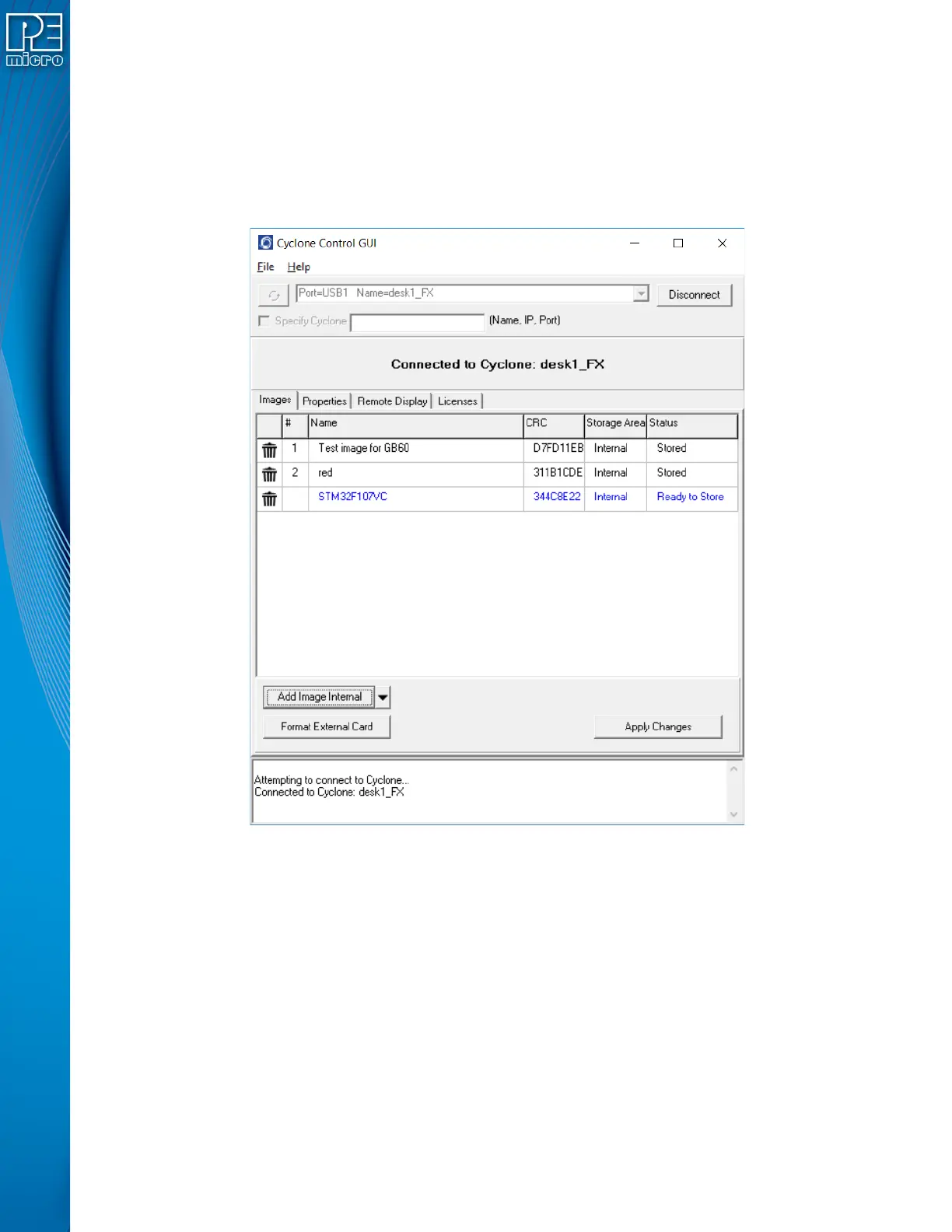

Figure 8-4: Images Tab
To store an image in the external memory of the Cyclone, change the storage area by clicking on
the drop down menu next to the “Add Image” button. Changing the storage area can also right click
on the uncommitted image and select the “Switch storage to External” option.
