User Manual For CYCLONE FX Programmers 13
PIN 17 - NC* GND - PIN 18
PIN 19 - NC* GND - PIN 20
Note: *The pin is reserved for internal use within the PEmicro interface.

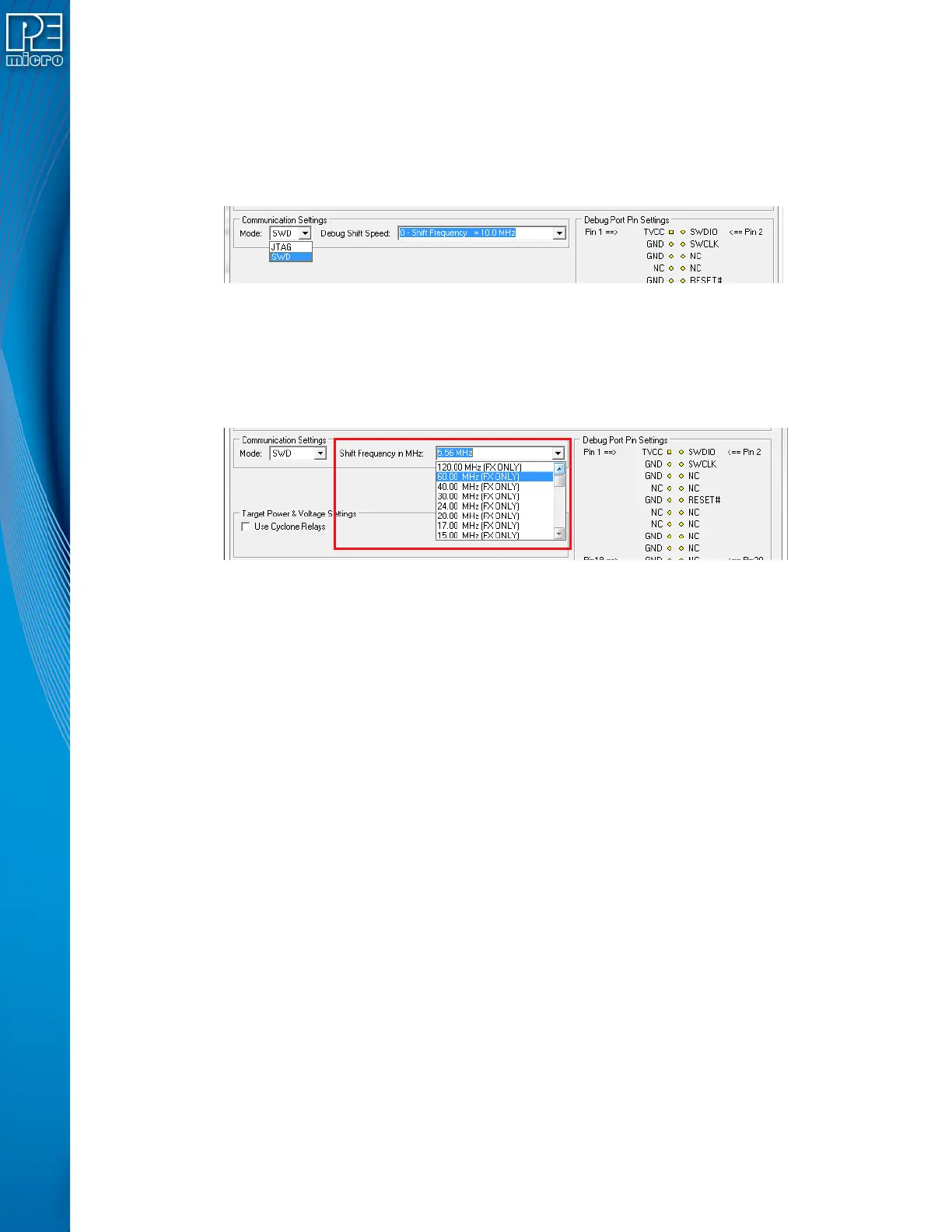

SWD Mode is selected from the “Communication Mode” drop-down box in the Cyclone Image
Creation Utility:
Figure 3-12: Communications Mode Selection
3.18.3.2.1 High-Performance Communications
If high-performance options are available for the selected device they will appear in the “Shift
Frequency in MHz” drop-down. CYCLONE FX programmers are capable of high-performance
communications when using certain ARM Cortex targets in SWD mode.
Figure 3-13: High-Performance Options
3.19 Target Headers For Part# CYCLONE_UNIVERSAL_FX
PEmicro Part# CYCLONE_UNIVERSAL_FX features 6 ports labeled A-H.
3.19.1 PORT A: 10-Pin Keyed Mini Connector (Kinetis, S32 (ARM), other PEmicro-Supported ARM
devices)
3.19.1.1 JTAG Mode Pin Assignments
The Cyclone provides a keyed 10-pin 0.050-inch pitch double row connector for ARM targets. The
location of the this header is indicated as PORT A in Figure 3-5. The 10-pin keyed mini connector
pin definitions for JTAG mode are as follows:
10-Pin Keyed Mini Connector JTAG Mode Pin Assignments
PIN 1 - TVCC TMS - PIN 2
PIN 3 - GND TCK - PIN 4
PIN 5 - GND TDO - PIN 6
PIN 7 - NC TDI - PIN 8
PIN 9 - NC* RESET - PIN 10
*The pin is reserved for internal use within the PEmicro interface.
3.19.1.2 SWD Mode Pin Assignments
CYCLONE FX programmers also support SWD Mode. This replaces the JTAG connection with a
clock and single bi-directional data pin.
10-Pin Keyed Mini Connector SWD Mode Pin Assignments
PIN 1 - TVCC TMS/SWDIO - PIN 2
PIN 3 - GND TCK/SWCLK - PIN 4
