CRAC/CRAH Sensor Hardware Installation Manual
- 14 -
Follow these steps to install a sensor kit in an upflow CRAC/CRAH unit.

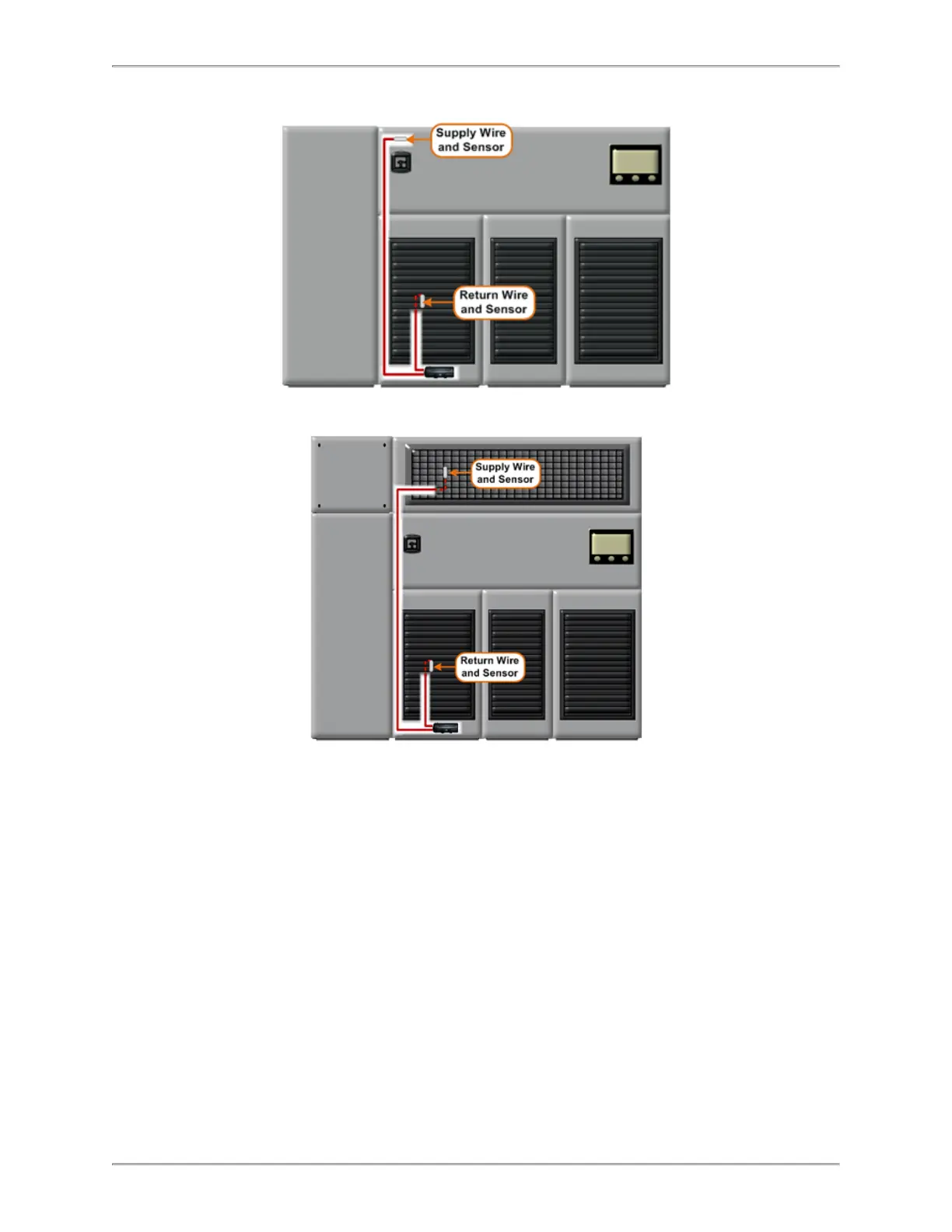

1. Route and install the supply sensor to the filter area.
a. Route the supply sensor wire along the mounting rim in the filter area.
b. Secure the supply wire with a cable clip, allowing the sensor to hang over the
mounting rim in the supply airflow path.
c. Route the supply wire to the corner filter area using cable clips as needed along
the mounting rim of the filter.
To Next Page
