CRAC/CRAH Sensor Hardware Installation Manual
- 23 -

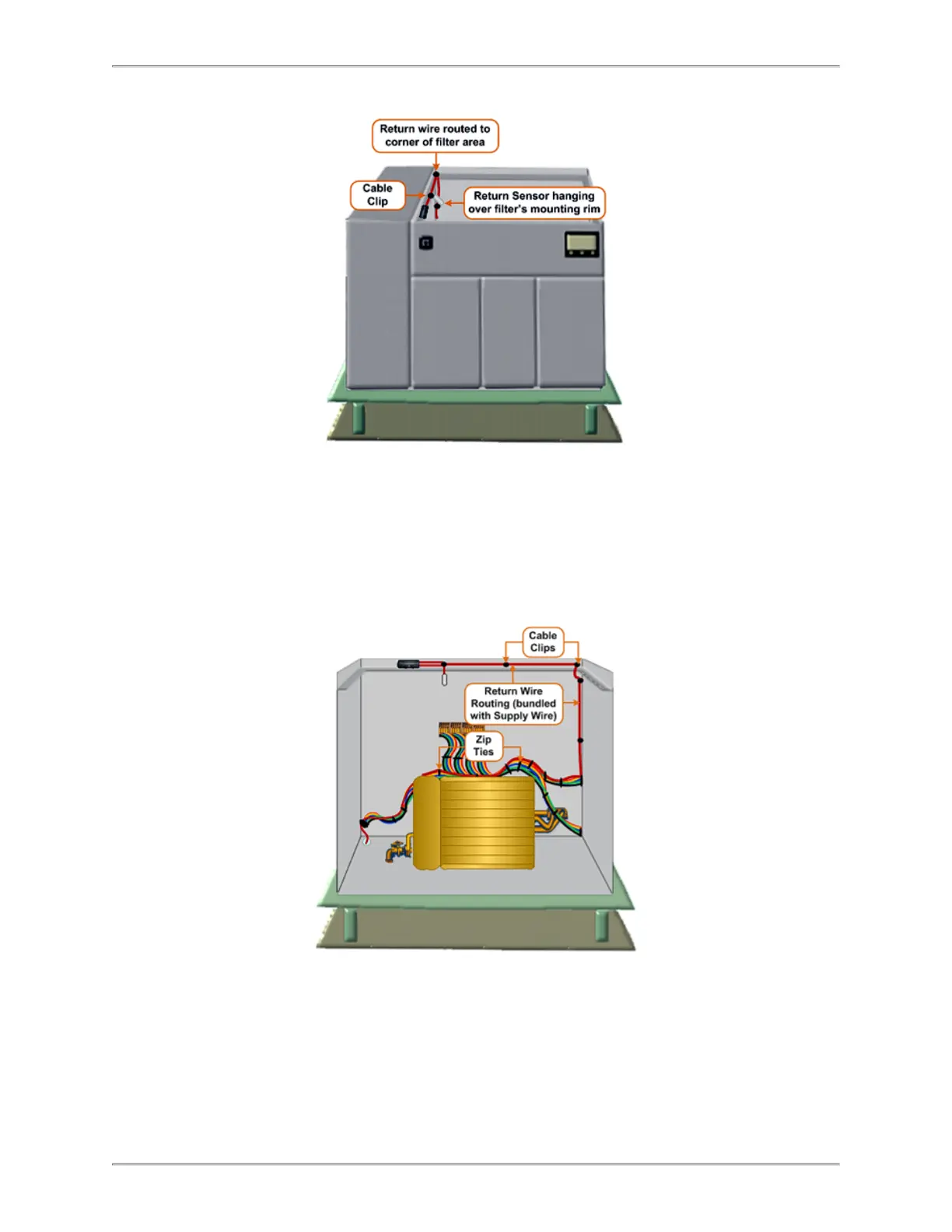

4. Route the return wire in the unit.
a. Route the return wire from the return area to join the supply wire and existing
wires in the unit.
b. Secure the return wire with zip ties to the unit wiring, leaving enough length for
the ThermaNode installation.
5. Mount the ThermaNode.
a. Clean the ThermaNode installation area (in the return area) with alcohol
wipes. Allow area to dry.
b. Attach 3M Command Strips to the underside of the ThermaNode (if not
already present).
To Next Page
