CRAC/CRAH Sensor Hardware Installation Manual
- 28 -

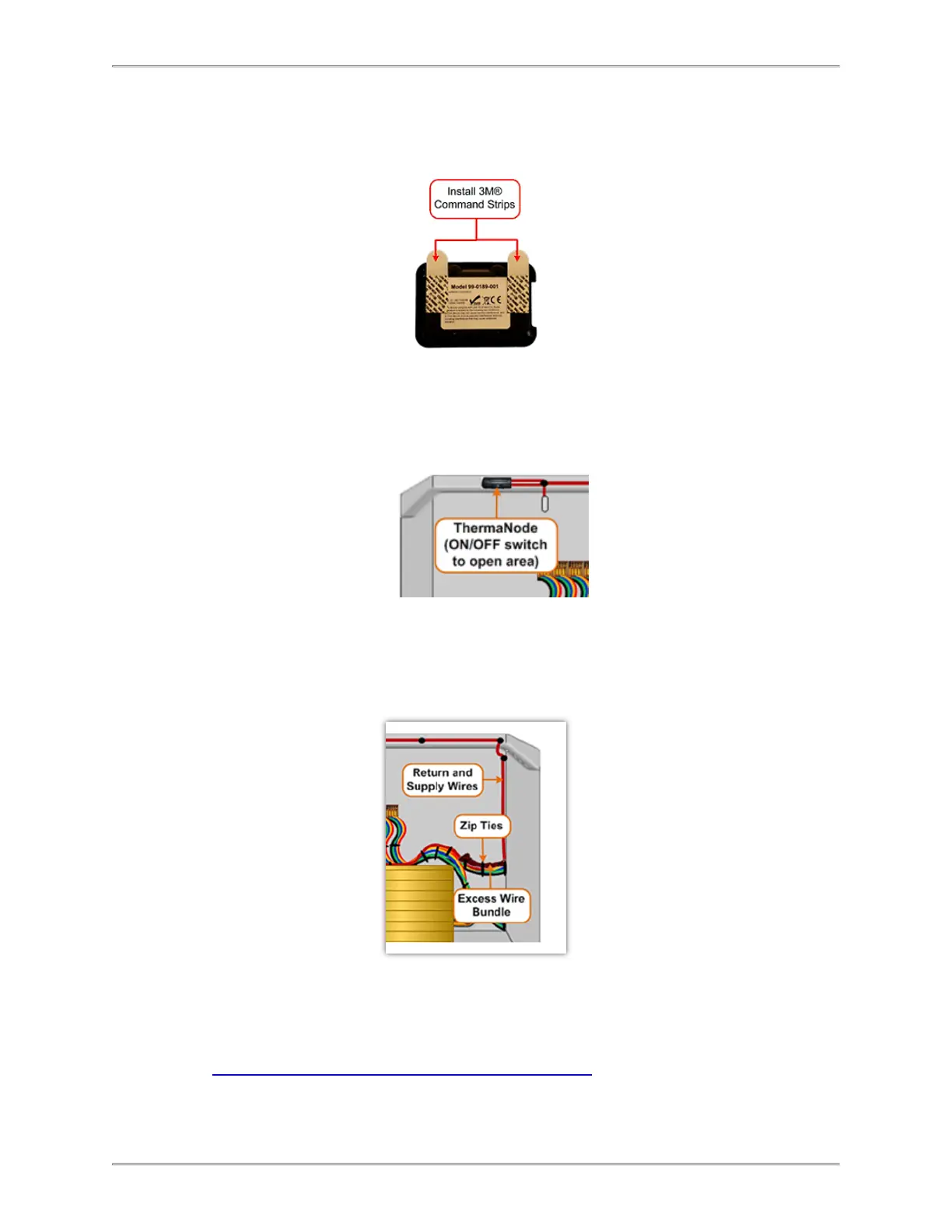

b. Attach 3M Command Strips to the underside of the ThermaNode (if not
already present).
6. Plug the cable assembly connector into the ThermaNode.
7. Temporarily install the unit with the ThermaNode LED facing toward the open area
(ON/OFF switch accessible).
8. Secure excess wiring.
a. Bundle and secure excess wiring with zip ties.
b. Secure bundle to existing wires in the unit.
9. Complete the installation.
Continue to Validating and Commissioning the Installation to validate and commission
the installation.
