Shutter Actuator Output Connector

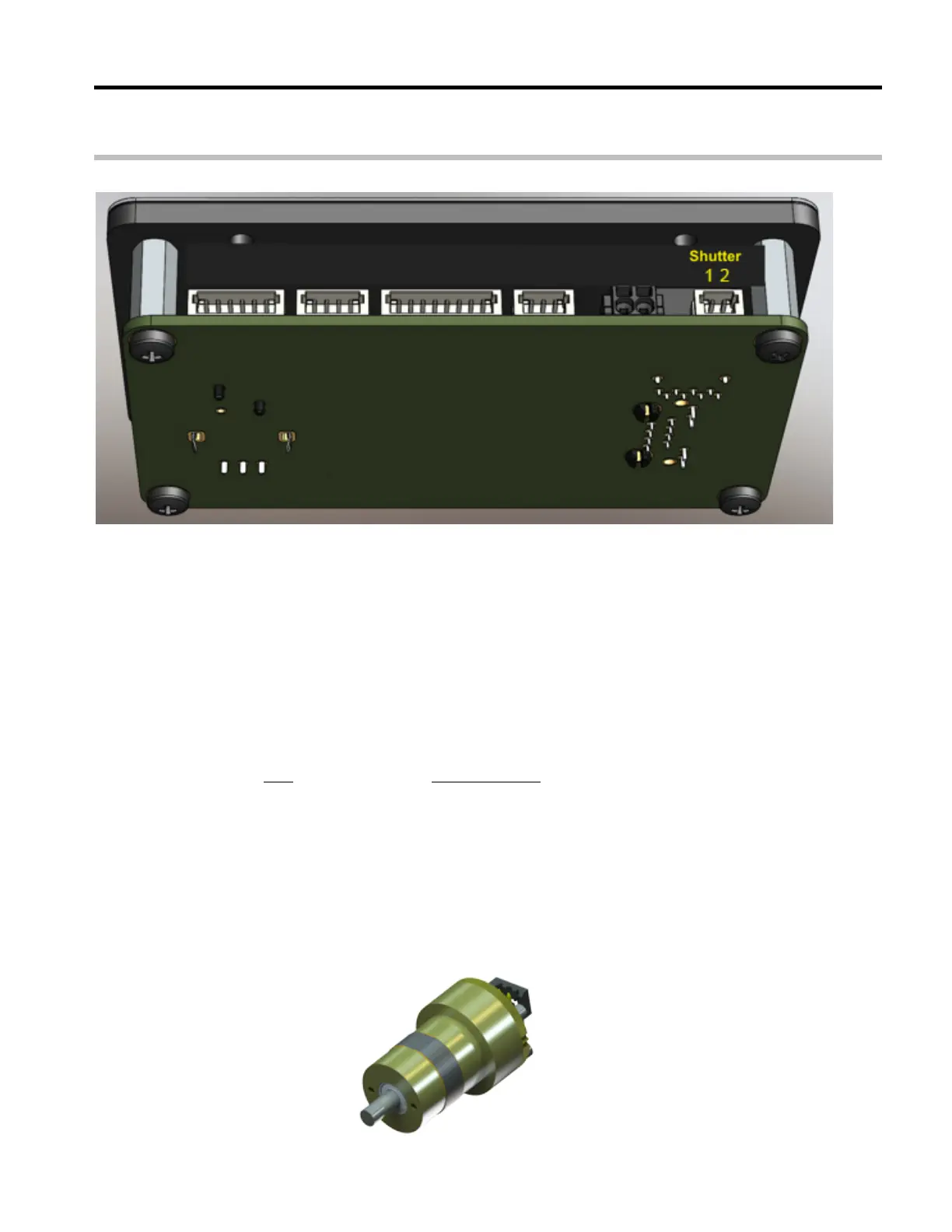

FB4 has a built-in PWM output which may be connected directly to
an actuator, for the purposes of implementing a redundant mechanical
shutter. The signals are described below.
Shutter Actuator Output
Pin Signal name
1 GND
2 PWM Voltage Output
As a shutter actuator, we recommend the VRAD 1510 or VRAD 506
actuator from the ScannerMAX division of Pangolin.
