Appendix A
FB4 Connections
Note that this manual is currently evolving, and FB4 includes some
features that are not yet documented.
Power Input Connector

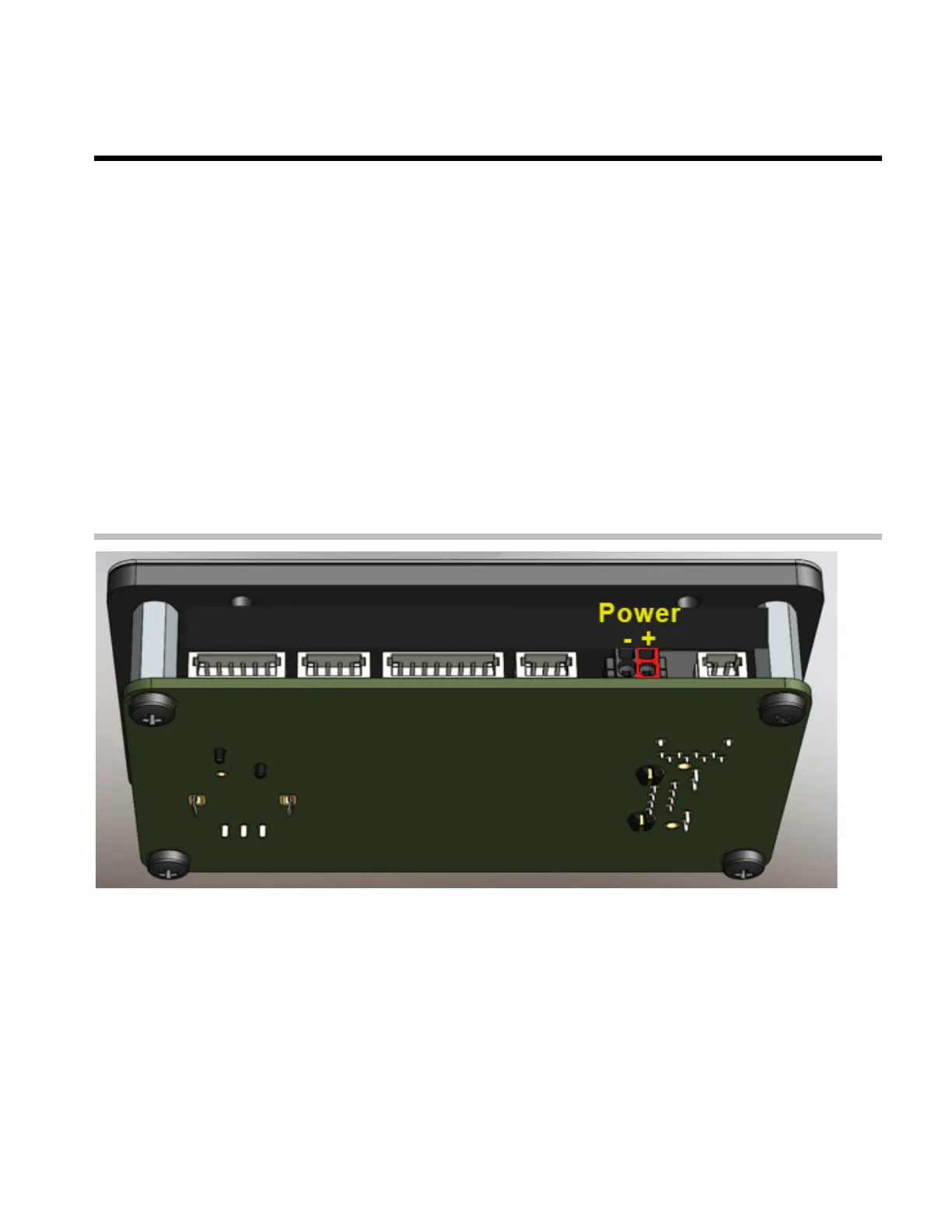

The Power connector is located at the top as shown in the picture.
A stripped and tinned wire must be firmly pressed into to the holes in
the connector. To release a wire after it has been inserted, insert a
small pin or the tip of an X-ACTO knife trough the small slits
adjacent to each hole, and then pull on the wire.
FB4 requires +5 to +30 volts DC, at 2 watts. If you use the optional
DMX or ILDA daughterboards, 2.5 watts of power should be
budgeted.
