4 FB4 User Manual
If you need to remove the power wires from the FB4, each wire may
be released by inserting a very small pin or tip of an X-ACTO knife
into the small slots adjacent to each hole.

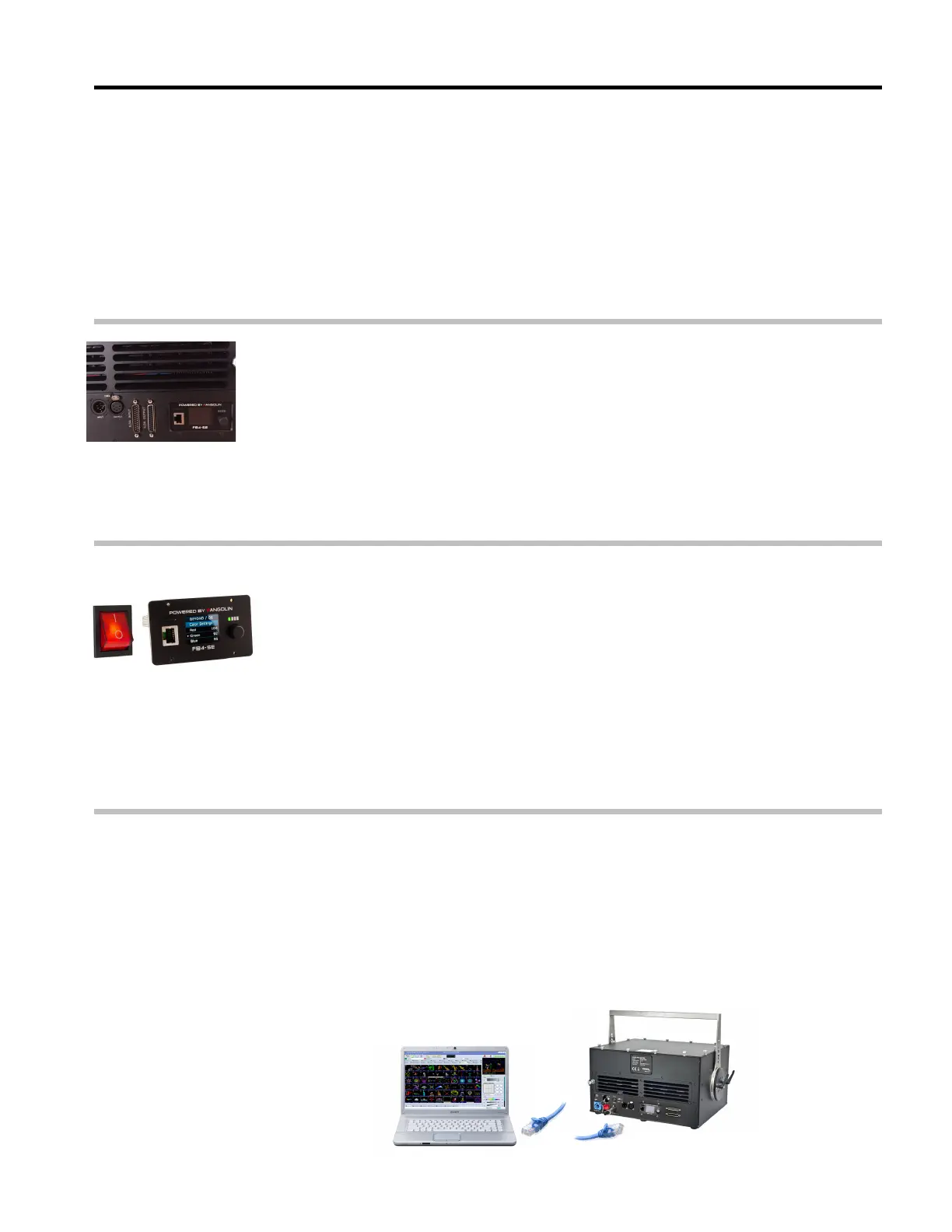

Connecting to a Projector
The FB4 has "Axis output" and "Color output" signals having a
voltage level that is compatible with the ILDA-ISP standard.
If your FB4 is not already installed on your projector, please refer to
the Appendix A for the pinouts.
Turning it on
When power is applied to the FB4, a green light will illuminate.
Pressing down on the knob will wake up the FB4 for configurations.
FB4 is configured at the factory to be usable with Pangolin's
QuickShow or BEYOND software. However, other operational modes
are possible, including DMX, OSC, as well as the ability to access
internal test patterns when they are stored on the removable SD
memory card.
Initial Operation
Connect FB4 to your computer or local area network using a standard
CAT5 or CAT6 Ethernet cable. When FB4 detects a network, the
yellow light on FB4 should flash indicating network activity. From
the factory, the FB4 is initially configured to use an automatic IP
address, but FB4 may also be assigned to a manual IP address using
the menus accessed using the dial on the front.
To Next Page
