12 Lasershow Player model FB4 User Manual

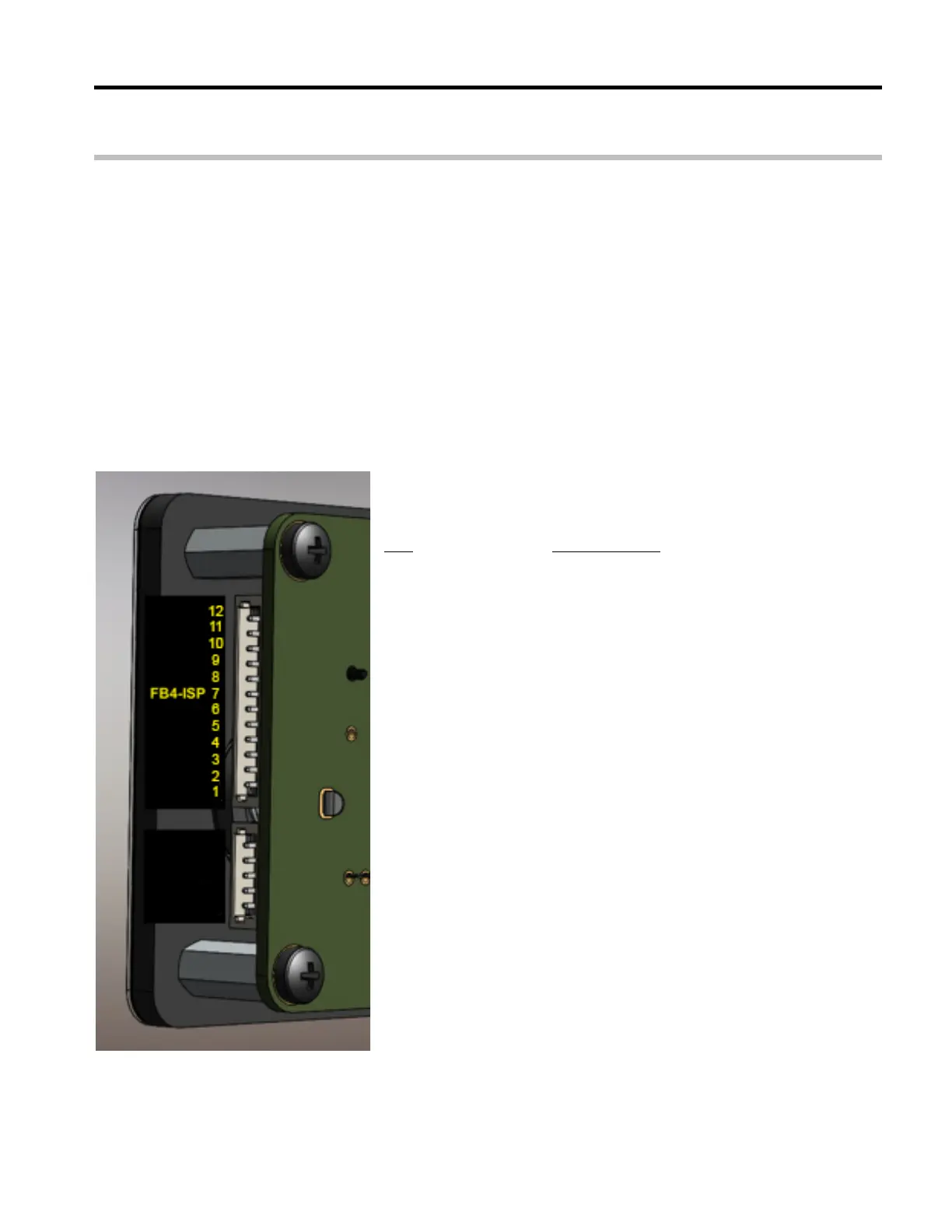

FB4 ILDA Daughterboard Connector
FB4 may be connected to an optional daughterboard which provides
ILDA-Input and ILDA-Through capability. When this daugherboard
is used, FB4 can direct the ILDA Input through FB4 circuitry for
signal modification, before forwarding those signals to the Axis and
Color outputs on the FB4. The signal modification includes the ability
to adjust the color level and color shift as well as the orientation of the
ILDA input. All of these ILDA input signal modifications are
accessible through the FB4 menus.
ISP Input
Pin Signal name
1 GND
2 I2C SDA
3 I2C SCL
4 I2C INT
5 VCC (3.3V)
6 B IN
7 G IN
8 R IN
9 Y IN
10 X IN
11 VSS (-5.8V)
12 VDD (5.8V)
