Pantech WH2950 - Install Wind Vane

7
2
Wind Speed Sensor (measures wind
speed)
8
UV Sensor
3
Solar collector
9
Solar Radiation Sensor
4
Rechargeable battery compartment
10
Rain Collector (self emptying)
5
LED transmission indicator (turns on for
4 seconds on power up, flashes once
per 16 seconds)
11
Bubble Level
6
Reset button
5.3.1 Install Wind Vane

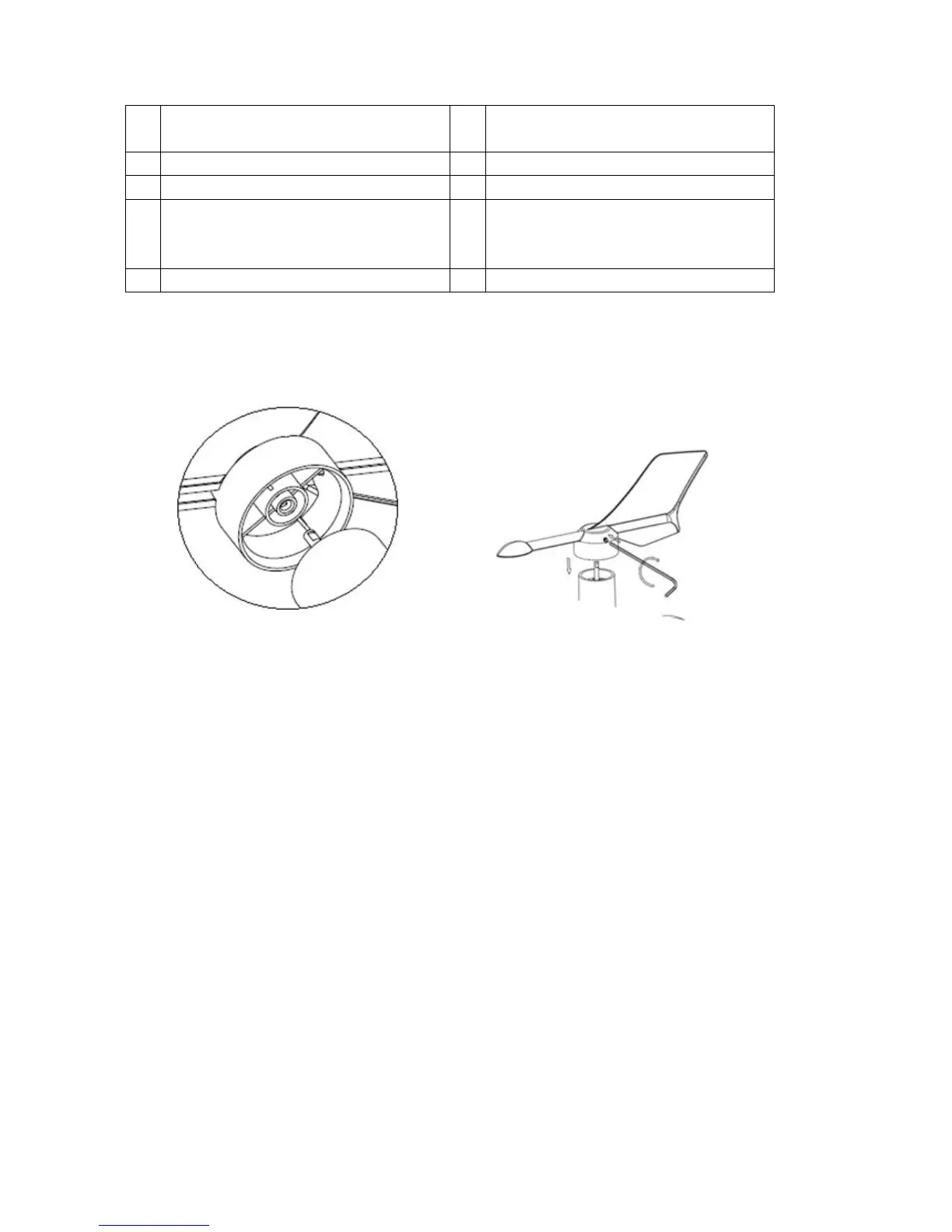

Reference Figure 2. (a) Locate and align the flat key on the wind vane shaft to the flat key on the wind
vane and push the vane on to the shaft. (b) tighten the set screw with the hex wrench (included).
(a)
(b)
Figure 2
