Panther 55 - Mounting the Trim & Tilt Bracket

MOUNTING THE TRIM & TILT BRACKET

Thetrimandltbracketispre-drilledwiththemarineindustrystandardBIAboltholepaern.Ifyourboat
alreadyhasthecorrectboltholepaerndrilled,youmayproceedtoStep4.Ifnewholesneedtobemade,
followthesesteps:












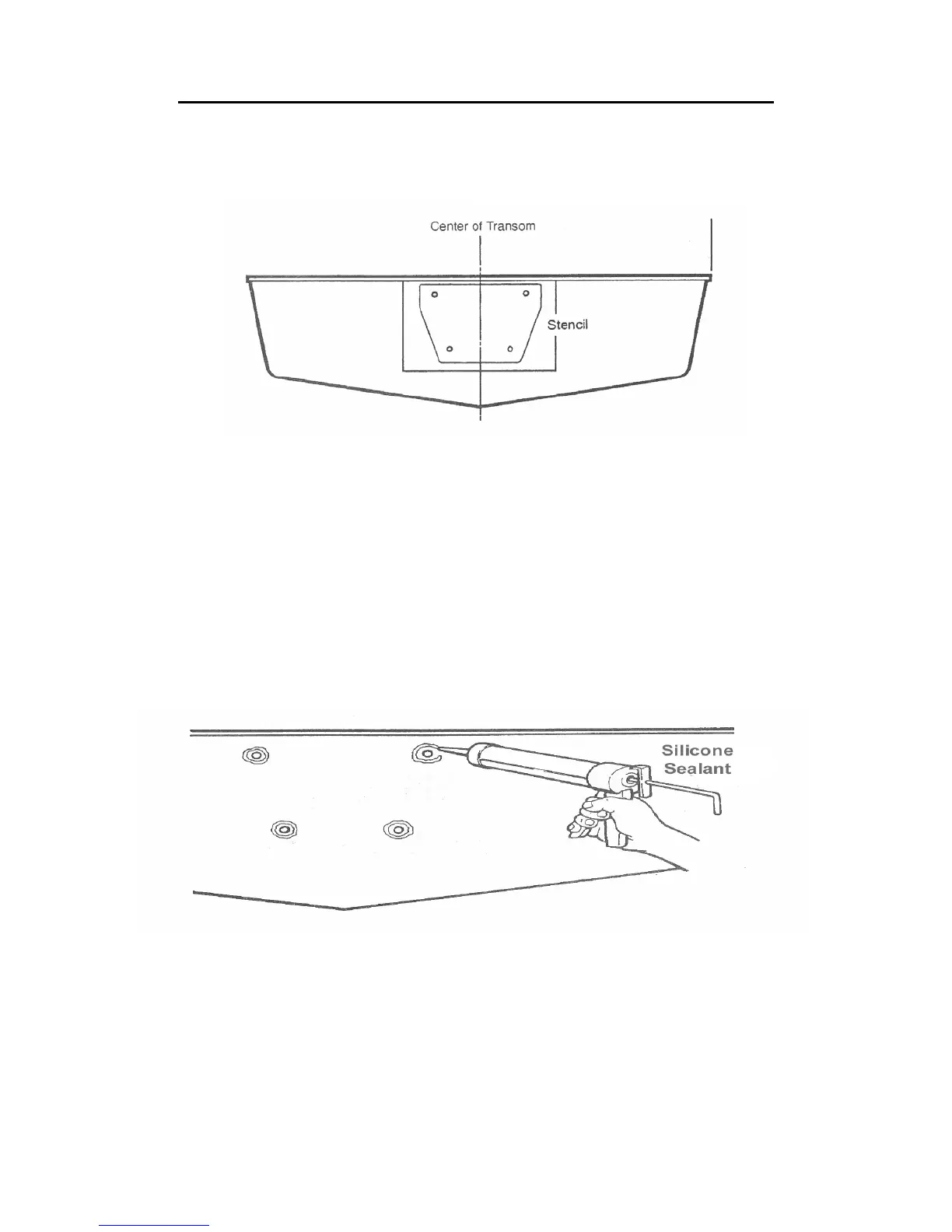

1. Posionthetransomplateinthecenterofthetransom.Checktomakesurethattheholeplacement
willnotinterferewithanymoldings,rivets,etc.

2. Onceposioned,useapunchtomarktheholelocaon.

3. Usinga3/16bit,drillapilotholeineachlocaontomakesuretheholesareproperlyalignedandthat
therewillbenointerferencewiththemounngbolts.Thenfinishdrillingtheholeswitha½inchdrill
bit.

4. Beforemounngtheunit,applyabeadofRTVsiliconesealantaroundtheedgeofeachholetoinsure
awaterghtseal.











5. Tomountthetrim&ltbrackettothetransom,usefour½inchdiameterstainlesssteelboltswith
washersandnylonlockingnuts.Startbyplacingaboltwithawasherintoeachoftheupper
mounngholes.Sckapieceoftapeovertheheadofeachbolttoholdtheminplace,thenlithe
unituptothetransom,aligntheboltsandslidetheunitintoplace.Installthewashersandthenuts
insidetheboat.Donotghtenthenutscompletelyunlthelowerboltshavebeeninstalled.

NOTE: To provide more clearance for installing the mounng bolts, you may have to temporarily
connect the unit to a baery to run the bracket to an open posion. This will make installing the upper
bolts easier.
