3/8 X i"
Siep 9
A.

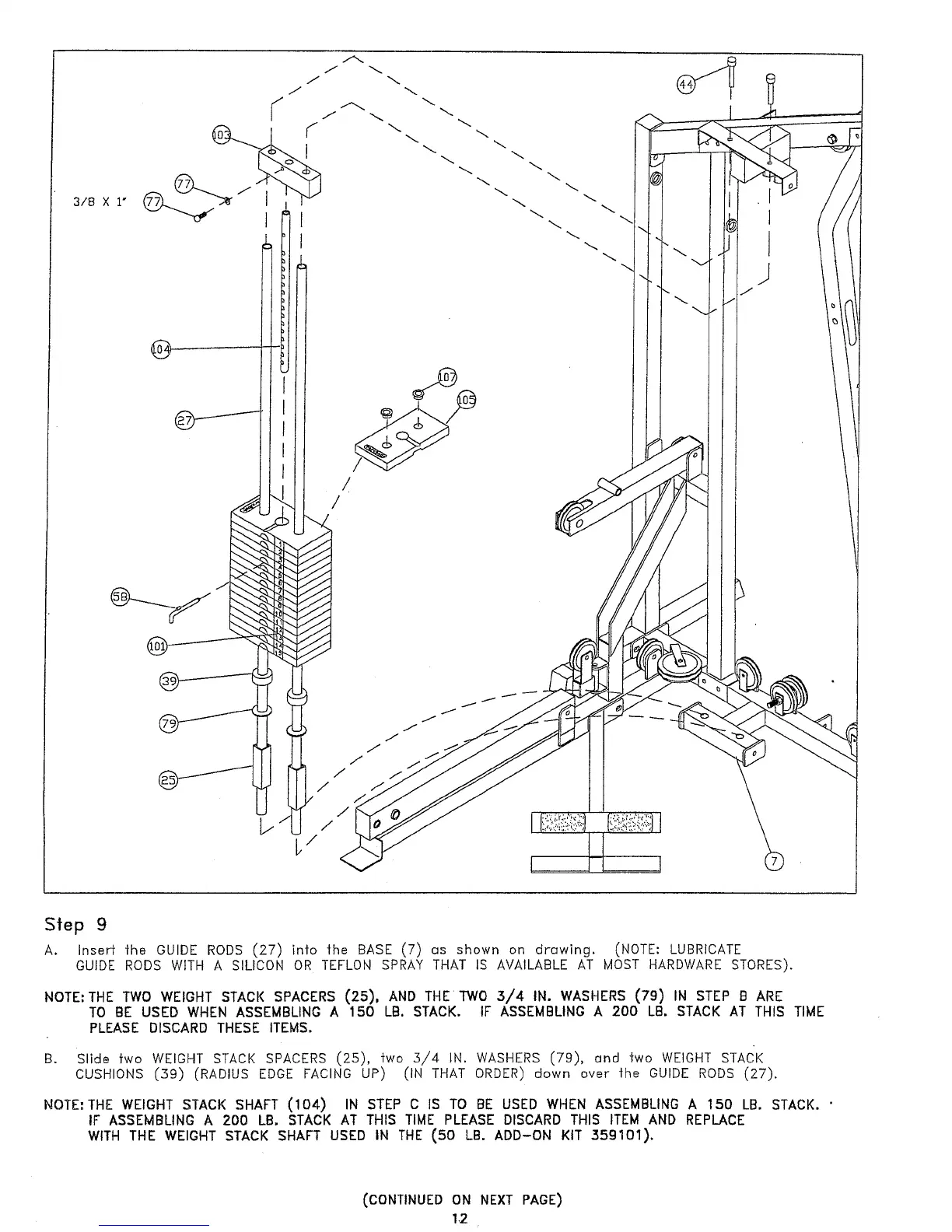

Inserf the GUIDE RODS (27) into ihe BASE (7) os shown on drawing. (NOTE: LUBRICATE
GUIDE RODS WITH A SILICON OR TEFLON SPRAY THAT IS AVAILABLE AT MOST HARDWARE STORES).
NOTE:THE TWO WEIGHT STACK SPACERS (25), AND THE TWO ,3/4 IN. WASHERS (79) IN STEP B
TO BE USED WHEN ASSEMBLING A 150 LB, STACK. IF ASSEMBLING A 200 LB. STACK AT THIS TIME
PLEASE DISCARD THESE ITEMS.
B. Slide fwo WEIGHT STACK SPACERS (25), fwo 3/4 IN. WASHERS (79), and ~wo WEIGHT STACK
CUSHIONS (39) (RADIUS EDGE FACING UP) (IN THAT ORDER) down over ihe GUIDE RODS
NOTE:THE WEIGHT STACK SHAFT (104) IN STEP C IS TO BE USED WHEN ASSEMBLING A 150 LB. STACK,
IF ASSEMBLING A 200 LB. STACK AT THIS TIME PLEASE DISCARD THIS ITEM AND REPLACE
WITH THE WEIGHT STACK SHAFT USED IN THE (50 LB. ADD-ON KIT
(CONTINUED ON NEXT PAGE)
