LEG CURL/EXTENS[rlN CABLE (6569001)
MULTI-PRESS CABLE (6536001)t

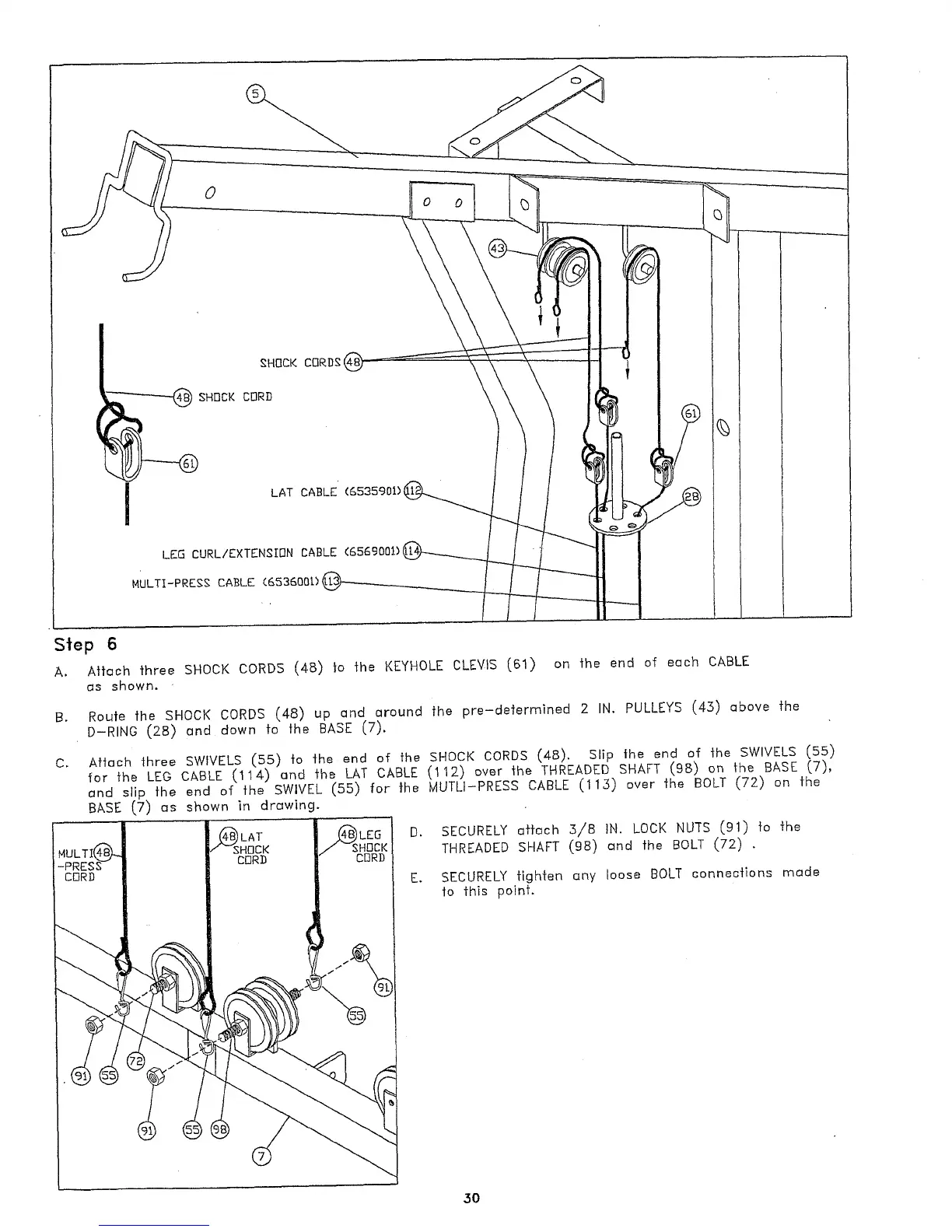

Step 6
A.
AHach ].hree SHOCK CORDS (48) to ].he KEYHOLE CLEVIS (61)
Bo
on ].he end of each CABLE
as shown.
Rou].e the SHOCK CORDS (48) up and around the pre-determ;ned 2 IN. PULLEYS (43) above
D-RING (28) und down fo the BASE (7).
A].tach three SWIVELS (,55) to ].he end of the SNOCK CORDS (48). Slip the end of ]-he SWIVELS (,5,5)
for the LEG CABLE (114) end the LAT CABLE (1 12) over ].he THREADED SHAFT (98) on the BASE
und slip the end of ].he SWIVEL (55) for ].he MUTLI-PRESS CABLE (1 15) over the BOLT (72)
BASE (7) us shown in drawing.
LAT
D,
SECURELY attach 5/B IN. LOCK NUTS (91) to ].he
3CK THREADED SHAFT (98) and the BOLT (72)
E.
SECURELY tighten any loose BOLT connections made
].o this poinf.
To Next Page
