ParaBody 893103 - Assembly: Knee Support, Pulleys, and Pec Arms; Steps 10-11: Swivel Knee Support Installation

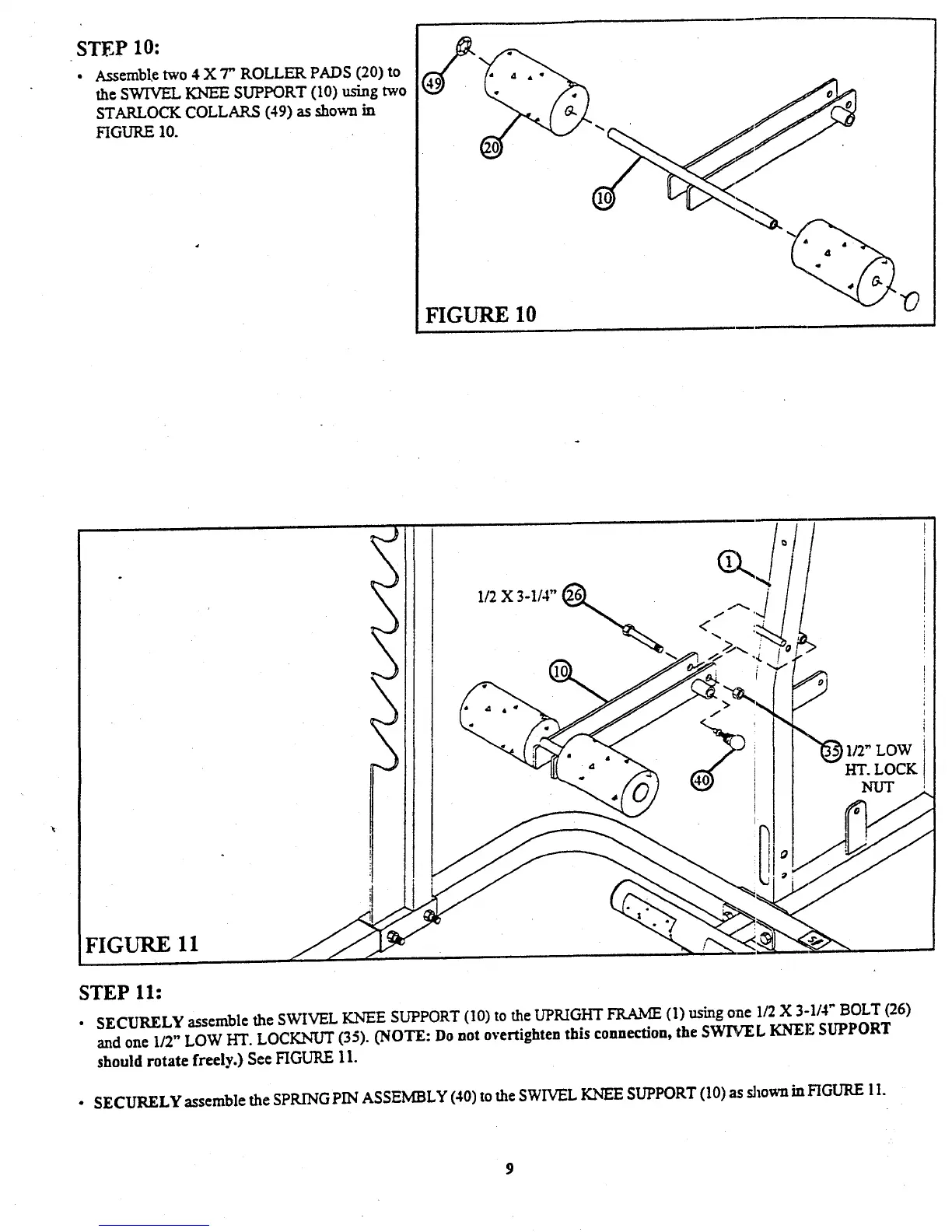

STEP 10:
¯
Assemble two 4 X 7" ROLLER PADS (20)
the SWIVEL KNEE SUPPORT (10) using two
STARLOCK COLLARS (49) as shown
FIGUR~ I0.
FIGUR~ 10
FIGURE 11
1/2 X 3-1/4" ~
}1/2" LOW
HT. LOCK
NUT
STEP 11:
¯
SECURELY assemble the SWIVEL KNEE SUPPORT (10) to the UPRIGHT FRAME (1) using one 1/2 X 3-1/4" BOLT
and one 1/2" LOW HT. LOCK_NUT (35). (NOTE: Do not overtighten this connection, the SWIVEL KNEE SUPPORT
should rotate freely.) See FIGURE 11.
¯ SECURELY assemble the SPRING PIN ASSEMBLY (40) to the SWIVEL KNEE SUPPORT (10) as shown in FIGURE
