ParaBody GS2 - Page 13

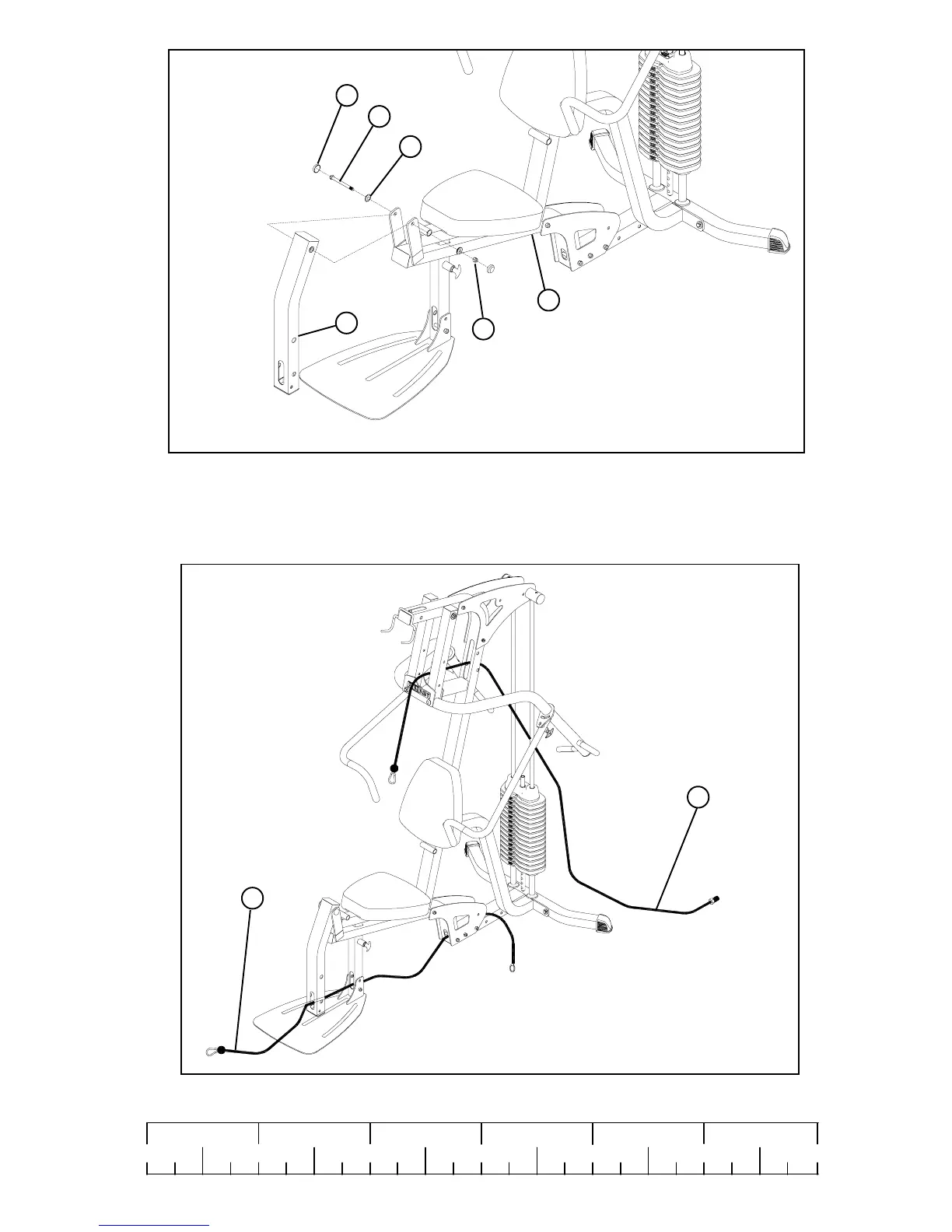

FIGURE 11
STEP 11:
• Assemble the LEG PEDESTAL (11) to the FRAME (1) using one 1/2 X 104mm BOLT (32), two RH WASHERS (56)
and one 1/2” LOW HT LOCK NUT (35)
• Assemble two RH CAPS (55) to the 1/2” RH WASHERS (56) as shown in FIGURE 11
• Route LAT CABLE (20) and LOW CABLE (21) as shown in FIGURE 12
32
20
55
STEP 12:
21
1
11
56
35
FIGURE 12
1/2 X 104mm
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
13
