ParaBody GS2 - Page 15

15
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
• Refer to cable ILLUSTRATION “A” on page 14 for cable routing while installing pulleys.
STEP 13:

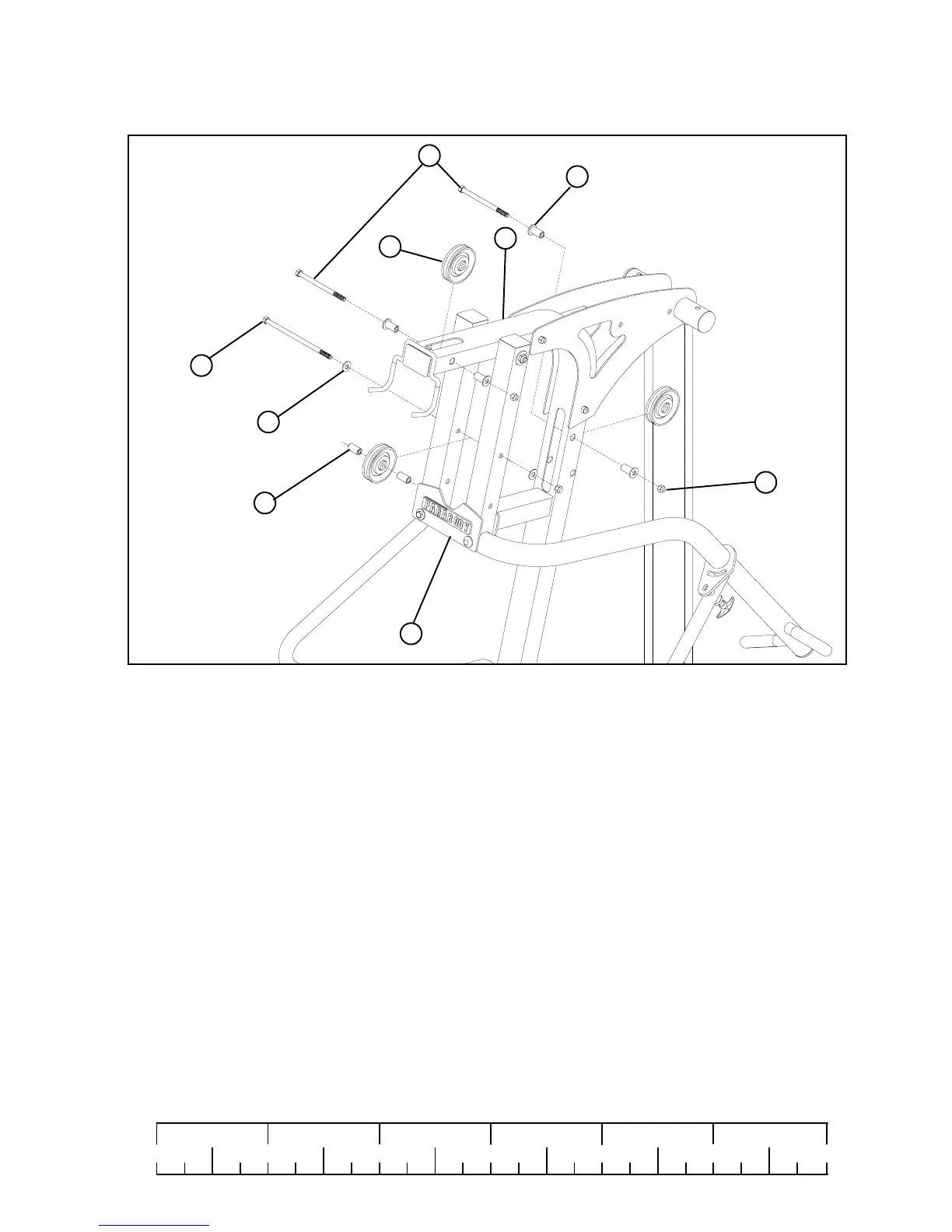

FIGURE 13
• Assemble one 3-1/2” PULLEY (24) into PRIMARY PIVOT (9) upper hole using one 3/8 X 8-3/4” BOLT (31),
two 3/8” FLAT WASHERS (36), two 3/8 X 1-1/2” SPACERS (44) and one 3/8” LOCK NUT (34) and tighten securely
• Assemble two 3-1/2” PULLEYS (24) into FRAME (1) using two 3/8 X 3-3/4” BOLTS (30), four 3/8 X 1-1/16”
FLANGE SPACERS (42) and two 3/8” LOCK NUTS (34) and tighten securely.
9
34
36
24
42
44
31
30
1
3/8 X 3-3/4”
3/8 X 8-3/4”
