• Attach two 4 X 7” ROLLER PADS (15) to the LEG PEDESTAL (11) using one 3/4 X 17” TUBE (14) and two
3/4” STARLOCK COLLARS (54) as shown in FIGURE 18.
STEP 18:
• Attach two 4 X 7” ROLLER PADS (15) to the SEAT ADJUST (10) using one 3/4 X 17-1/2” TUBE (18), two PLASTIC
WASHERS (39) and two 3/4” STARLOCK COLLARS (54) as shown in FIGURE 18.
• Attach two 4 X 7” ROLLER PADS (15) to the FRAME (1) using one 3/4 X 17-1/2” TUBE (18),
two PLASTIC WASHERS (39) and two 3/4” STARLOCK COLLARS (54) as shown in FIGURE 18.
54

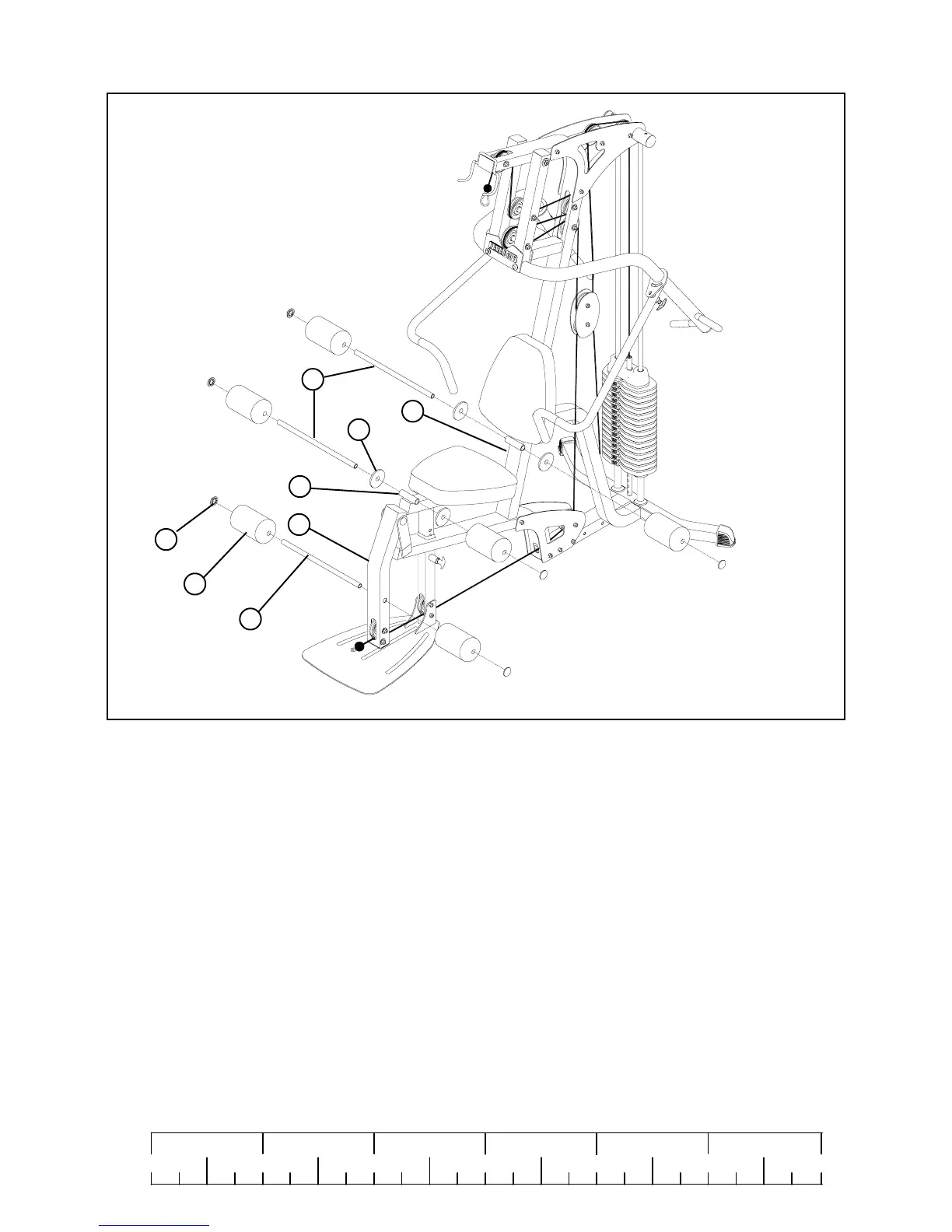

FIGURE 18
15
14
39
10
1
11
18
