IPR512: IP Monitoring Receiver 7 of 8 Quick Start
Step 13: Installation and Set Up Complete
This completes the basic installation and set up required to get the receiver up and running. The next step is to register
Paradox reporting modules to the receiver. No monitoring station operator action is required to register a module.
Registration is initiated by the installer upon installation of the module. However, the monitoring station must provide the
installer with the following information that is entered by the installer.
• Account # for each partition of the site.
• IP Address and Port of the receiver(s) you wish that site to report to. See item #2 in “Step 10: Configure the Receiver”
on page 4.
• Receiver Password (1 to 32 digits). See item #8 in “Step 10: Configure the Receiver” on page 4.
• Security Profile (2 digits). See “Step 12: Set Security Profile” on page 6.
Once the installer has entered this information, the installer then initiates communication with the receiver and the Paradox
reporting module will be automatically registered in the receiver. Refer to “Installer Instructions” on page 8.
--------------------------------- This completes installation and setup of the IPR512 ---------------------------------
Trouble and LED Display
Trouble Display
If a trouble occurs on the receiver, the TROUBLE LED will turn on and the screen will display “XX Troubles, click
[OK] to view”. Press OK to access the trouble menu, which will display one or more of the following troubles.
• Automation software communication failed
• LAN: Not connected to a network
• WAN1: Not connected to a network
• WAN1: Not connected to Internet
• WAN2: Not connected to a network
• Memory card not connected
• Memory card init failed
• Time server inaccessible
LED Display
The Status LEDs on the front of the receiver provide the following information:
LED On Status
DATA (memory card) Accessing (reading/writing) the memory card (back up).
WAN1 OK Network connection is detected on WAN1 port.
WAN1 DATA Sending or receiving data through WAN1 port.
WAN1 OK Network connection is detected on WAN2 port.
WAN2 DATA Sending or receiving data through WAN2 port.
LAN Network connection is detected on the LAN port.
SERIAL Connected with the automation software on COM1 (ACK/NACK must be enabled, see
item# 5 in “Step 10: Configure the Receiver” on page 4).
TROUBLE Trouble with the unit is detected. Troubles can be viewed through the LCD.
AC The IPR512 is powered.

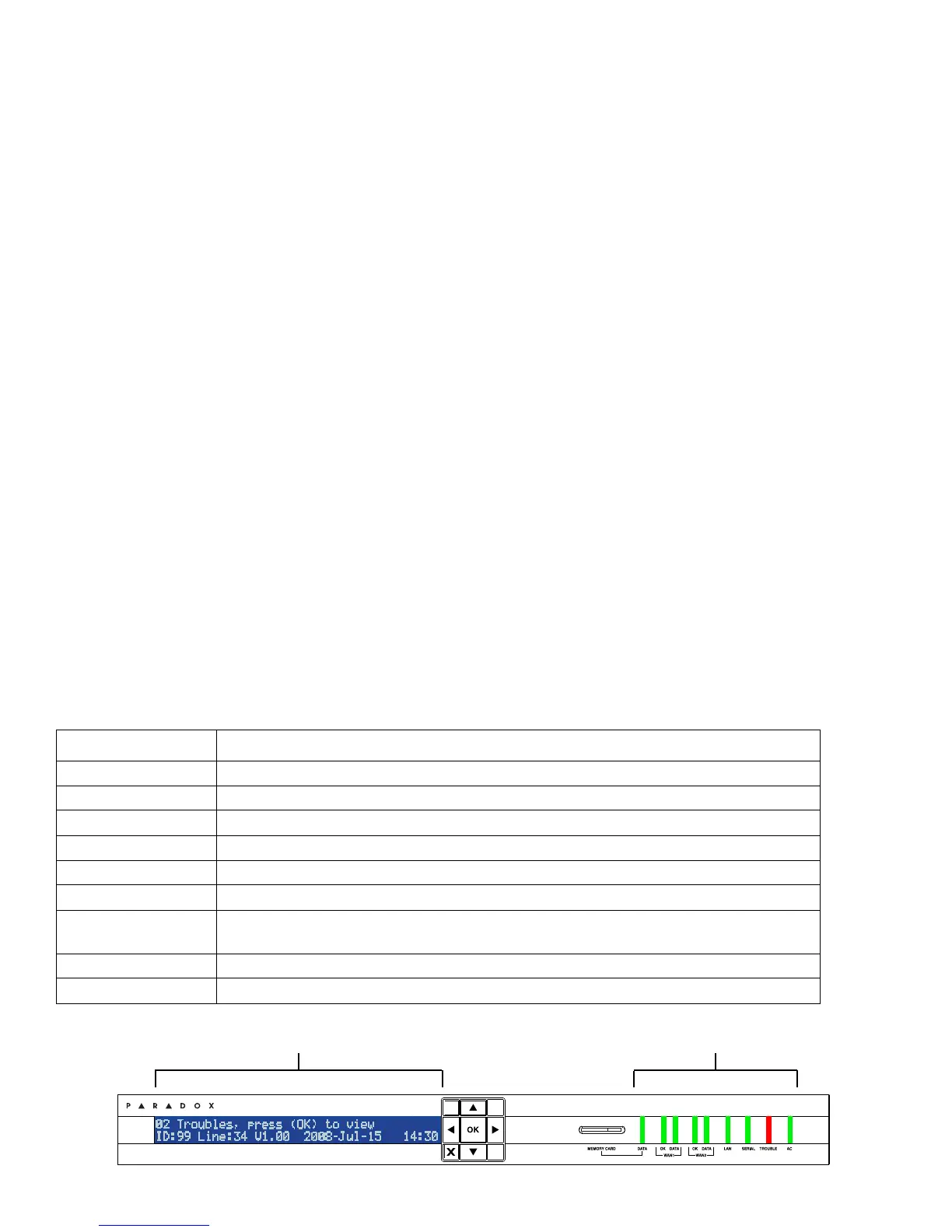

IP Monitoring Receiver
IPR512
Trouble Display LED Display
To Next Page
