2. If using surface mounted cabling, you will need to knock out the plastic tab #1
at the top or bottom of the K641+ backplate in order to for the cable to pass
through, refer to figure 3.
3. Insert needle nose pliers into the appropriate plastic tab and carefully break off.

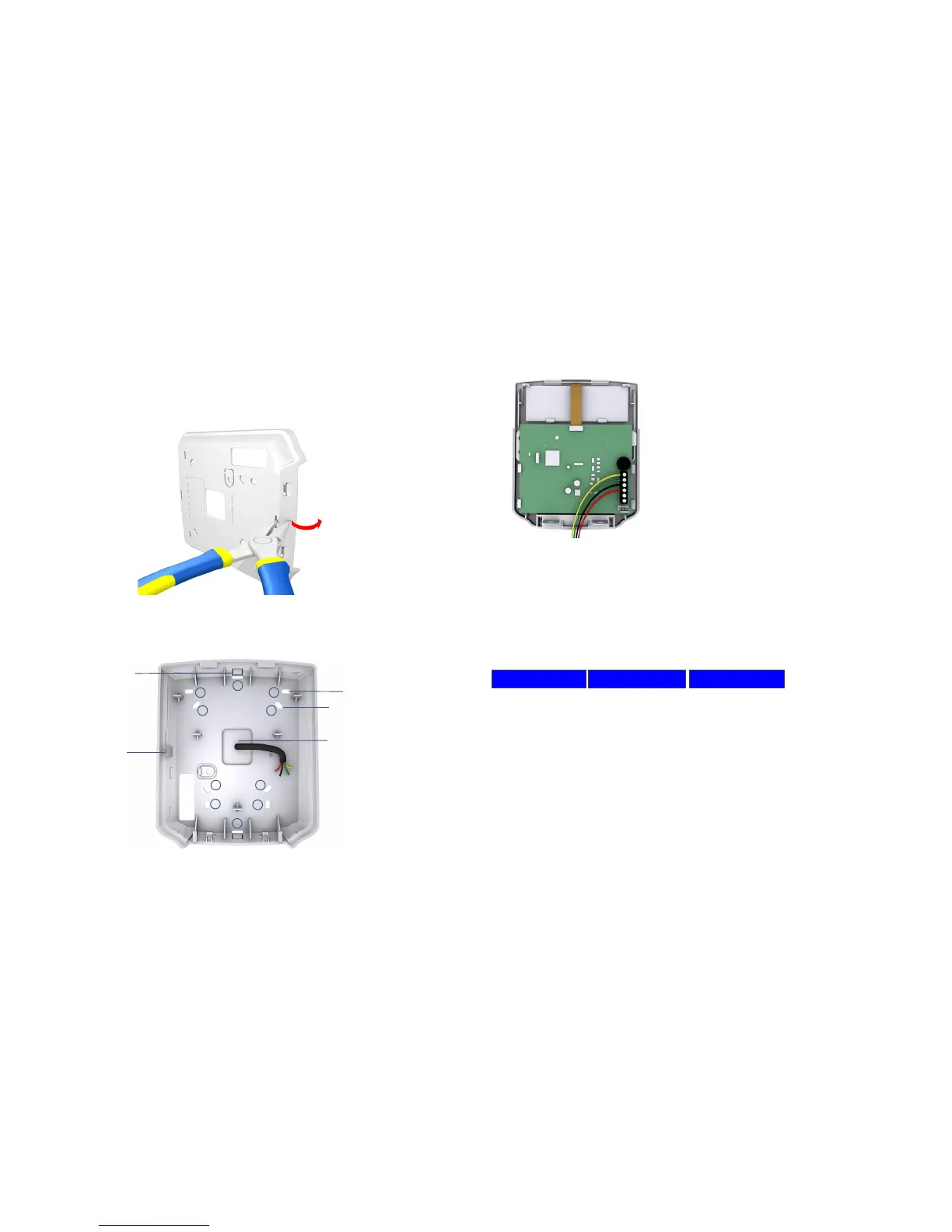

Figure 2: Surface-mount cabling plastic tab removal
4. Mount the backplate to the wall by securing a M3.5 (#6) screw in each of the
dedicated mounting holes and tamper hole while ensuring that the top is up, as
shown in figure 3. For EN installations, use the designated mounting holes (#2).
Figure 3: K641+ Backplate
5. Connect the 4-wire combus wires to the connector bus, as shown.
Figure 4: Wiring
6. Assemble both items by joining the hooks on the backplate to their respected
slots on the front housing assembly.
7. Secure the front housing to the backplate by snapping it into place.
The installation process is now complete.
Configuration
Modules can be configured using this keypad or BabyWare. The preferred option is
to use BabyWare to configure the system.
To configure modules through the keypad
1. Press and hold the 0 (number zero) key.
NOTE: The area must be disarmed to configure modules.
2. Initially you will see User Access Code but within 2 seconds it will change to
Installer Code.
3. When the Installer code appears, input the Installer code number, the default
number is [000000].
4. Input the 4 digit section code for Module Programming [4003].
NOTE: You need module serial numbers for programming.
5. Input the module serial number.
6. Input module section [001].
7. Now you can start module programming.
