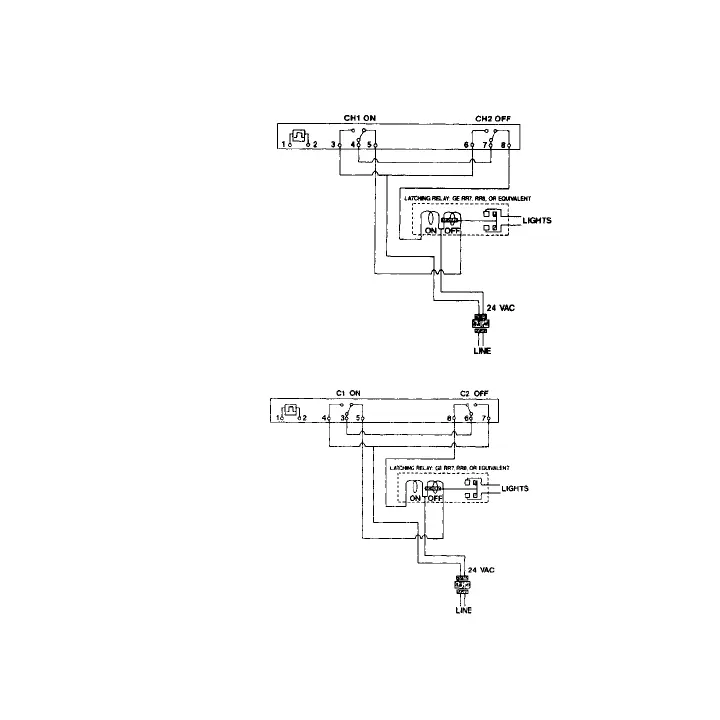

Figure 22. EC72
Latching Relay
Alternate Wiring
Diagram
Figure 23. EC72D
Latching Relay
Alternate Wiring
Diagram
44
