Display of the driving gear in the control element
The selected or shifted driving gear is displayed on the instru-
ment cluster of the vehicle and in the control element.
The manner of display for the instrument cluster in the vehicle is
described in the respective vehicle documents of the manufacturer.
The signaling and display of the driving gear/sub-gear in the control
element (pure control) is indicated by a
› colored lit ring around the respective driving gear
→ Continuously lit for driving gears P, R, N, and D.
→ Flashing light for sub-gears 1, 2, and 3 of driving gear D.
The ashing frequency changes as a function of the selected
sub-gear 1, 2, or 3.
Your service technician can adapt the color of the display and
of the ring to the color of the displays in the vehicle.

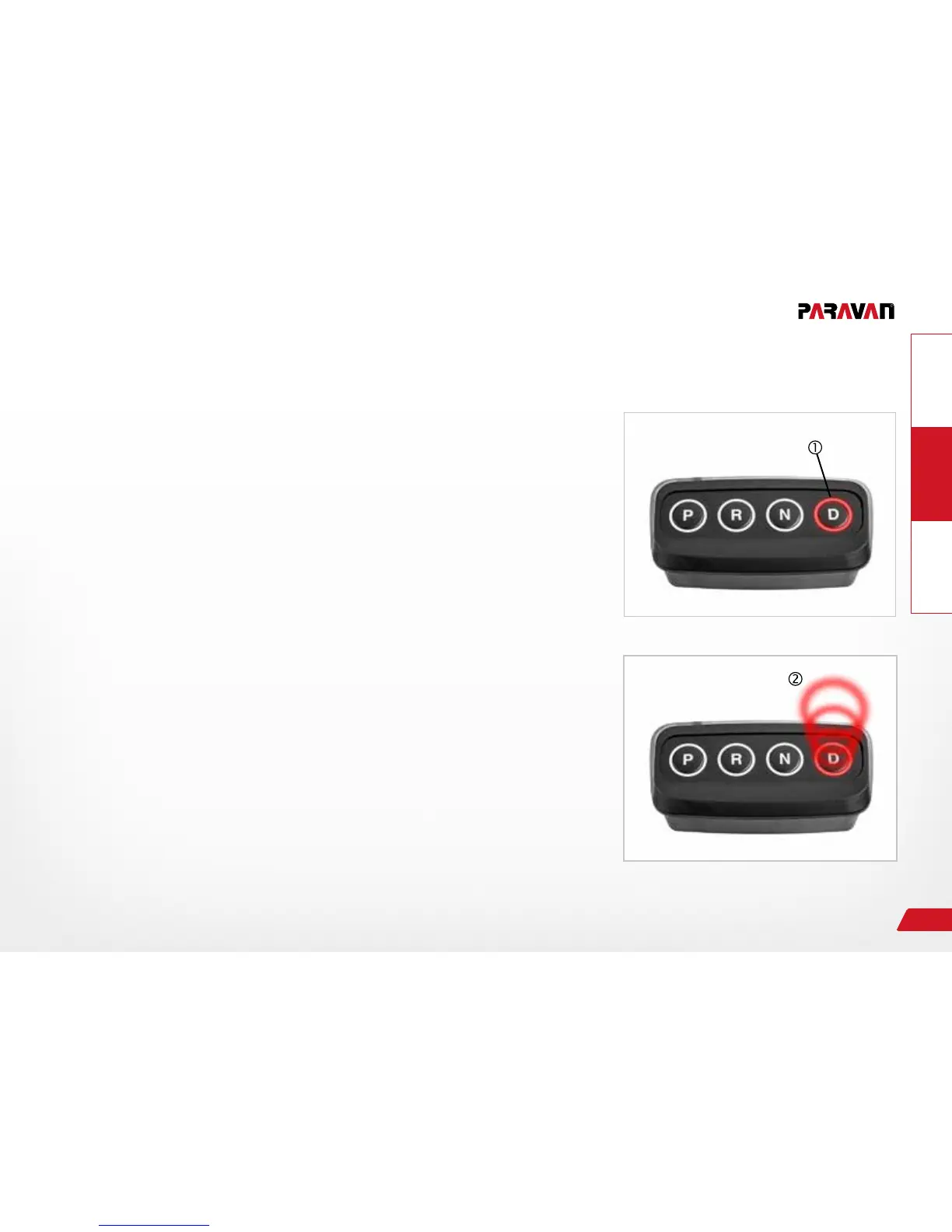

Fig. 3: Driving gear display
Fig. 4: Sub-gear display
