404/406XR Series Product Manual Chapter 3 - Component Specifications
16
Parker Hannifin Corporation
1140 Sandy Hill Road
Irwin, PA 15642
www.parkermotion.com

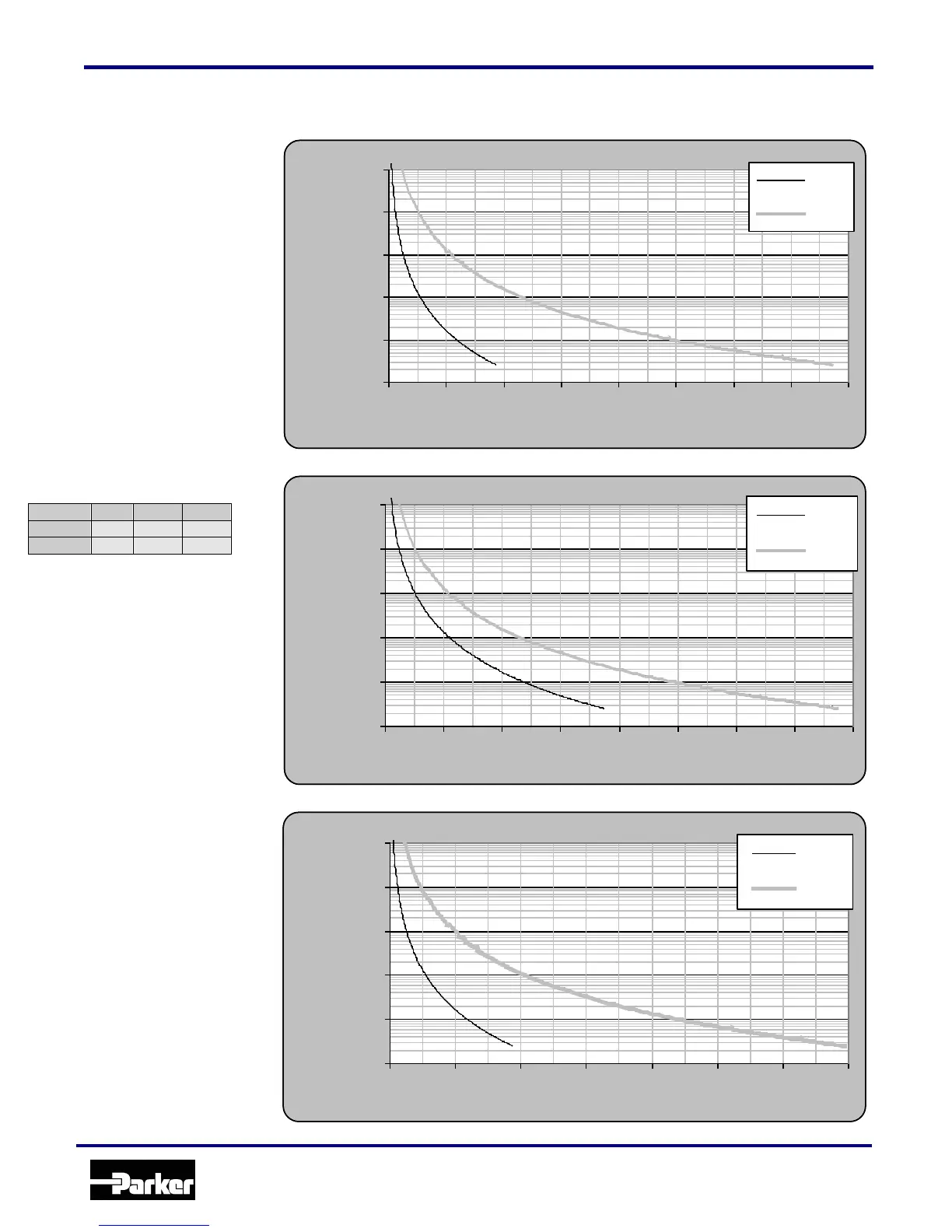

These charts are to be used in
conjunction with the corresponding
formulas found under Product
Information at www.parkermotion.com
to establish the life / load for each
bearing (4 per table).
Several dimensions, which are specific
to each linear positioning table model,
and the load geometry are required for
these computations. These dimensions
are supplied in the catalog information
for each positioner. The dimensions are
referenced as follows:
d1 – bearing block center-to-
center longitudinal spacing
d2 – bearing rail center-to-center
lateral spacing
da – rail center-to-carriage
mounting surface
d1
d2
da
404XR
80
50
28
406XR
114
90.3
42.5
Life with Compression Load
1000
10000
100000
1000000
10000000
100000000
0 200 400 600 800 1000 1200 1400 1600
Load per Bearing (N)
Life (Km)
404XR
406XR
Life with Tension Load
1000
10000
100000
1000000
10000000
100000000
0 100 200 300 400 500 600 700 800
Load per Bearing (N)
Life (Km)
404XR
406XR
Life with Side Load
1000
10000
100000
1000000
10000000
100000000
0 200 400 600 800 1000 1200 1400
Load per Bearing (N)
Life (Km)
404XR
406XR
