404/406XR Series Product Manual Chapter 6 - Maintenance and Lubrication
34
Parker Hannifin Corporation
1140 Sandy Hill Road
Irwin, PA 15642

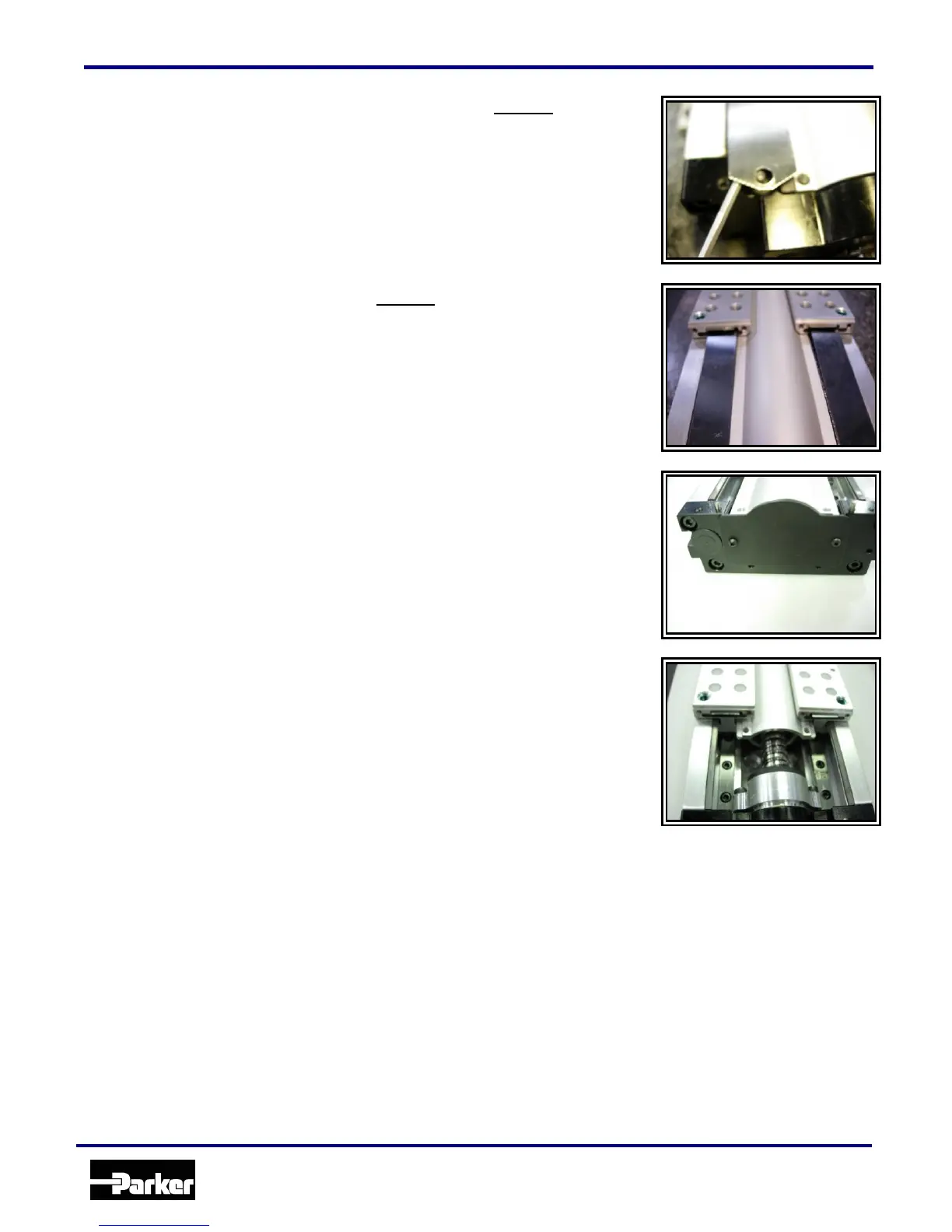

Lift both strip seals over locator pins with screwdriver. Caution: The
strip seal ends are VERY SHARP. It is recommended that a
screwdriver be used to lift strip seals over the locator pins.
Pull both strip seals through carriage. Caution: The strip seal ends
are VERY SHARP.
Remove bearing cover plate (or brake/rotary encoder cover,
depending on options) on non-motor endblock by removing (2)
button head cap screws. (Note: There is NO picture shown for this
step).
Pull center cover through carriage.
Reassemble positioner by reversing steps.
