Parker 590 series Owner's Manual

Parker Hannifin Corporation
Chelsea Products Division
Olive Branch, MS 38654 USA
15
Bulletin HY25-1590-M1/US
Owner’s Manual
Caterpillar
Installation Instructions
CHELSEA
F O
P.T. O. IS ENGAGED WHEN LIGHT IS ON
O N
F
READ MANUAL OWNERS
379928 - Valve Connector and Wire Assembly For Regulating Valve
Red Wire
Blue Wire
Black Wire
Run Wires through Grommet in Firewall
Installation Kits: 329443-12X (12V) 329443-24X (24V)
Drill 1" Dia. Hole in Firewall
379265 Grommet
Electrical Ground of Cab or Frame
Accepts #10 Screw
379502 Pressure Switch
380509-12 Regulating Valve 380509-24 Regulating Valve
Positive Terminal of Ignition or Battery
379257 Splice Connector
379900 Fuse Holder Ass’y w/10 Amp Fuse
329075-1X Hose Assembly
379486 90° Fitting Install in Transmission High Pressure Port
379306 Spade Terminal
378881 Switch
Slice Grommet, Insert in Hole in Firewall
379252 Butt Connector
379005 24V Indicator Light (Blue Wire) 378978 12V Indicator Light (Red Wire)
379336 Bracket

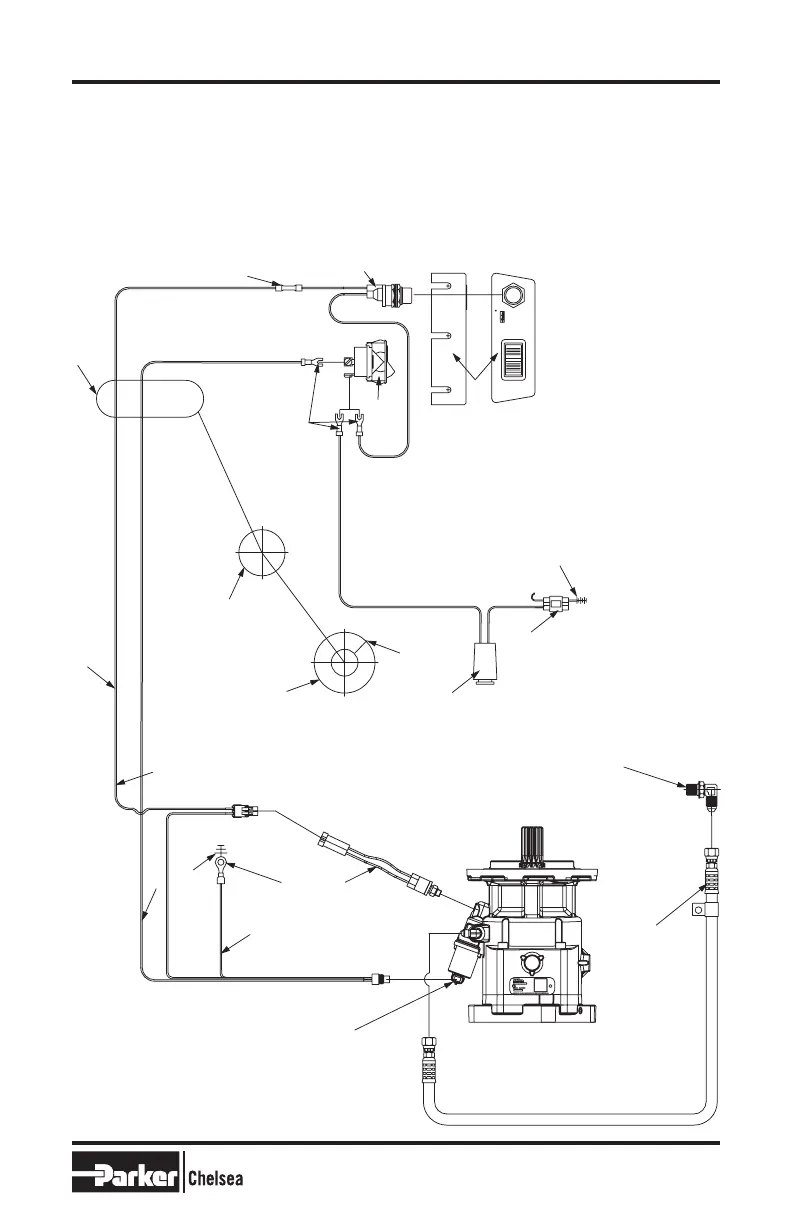

12V or 24V Electrical & Hydraulic Installation 590 Series
