Parker Hannifin Corporation
Proportional DC Valves
Series D*FC, D*1FC
Operation Manual
D_FC 5715-686 UK 07.02.2019

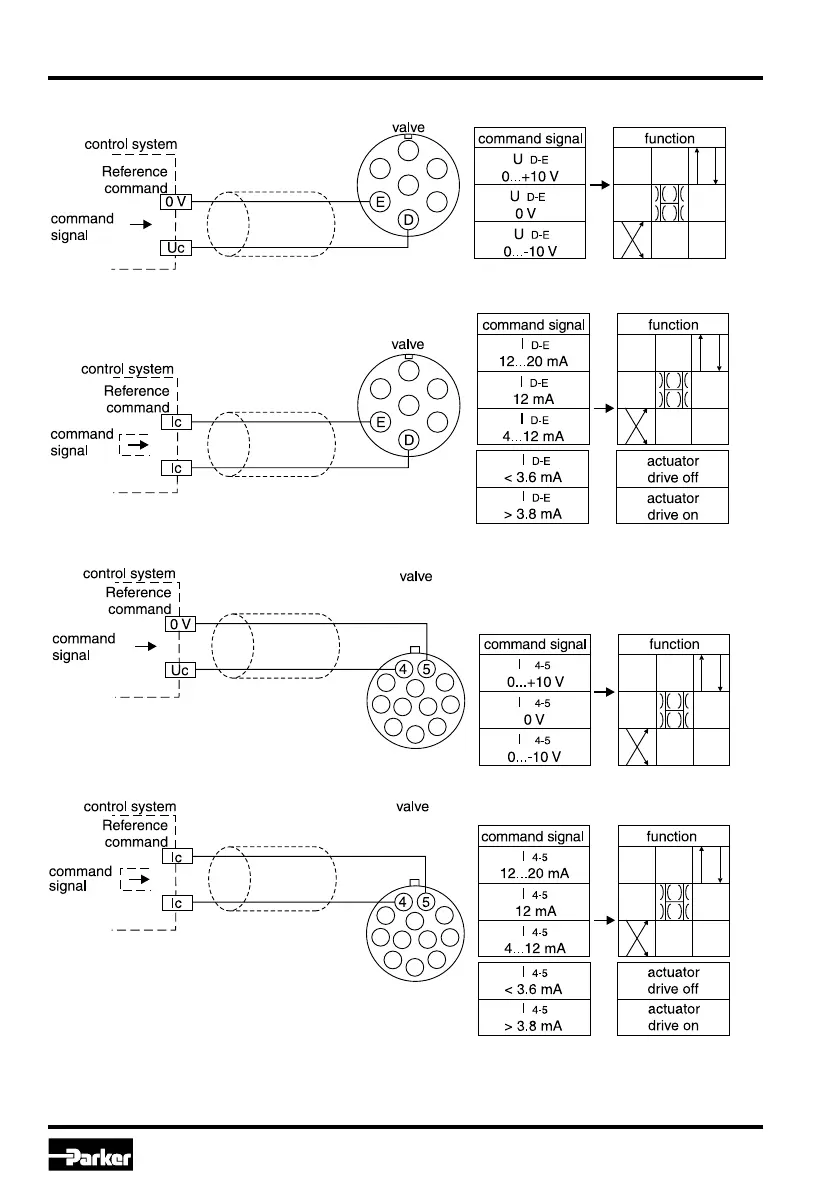

Wiring diagram of voltage command input +10...0...-10 V Code 0/7 (6 + PE)
Wiring diagram of current command input 4...12...20 mA Code 0/7 (6 + PE)
Wiring diagram of voltage command input +10...0...-10 V Code 5 (11 + PE)
Wiring diagram of current command input 4...12...20 mA Code 5 (11 + PE)
