Electrical Connection
The electrical connection of the valve takes place
by one common cable, which is coupled to the
integrated electronic driver by a central connector
assembly.

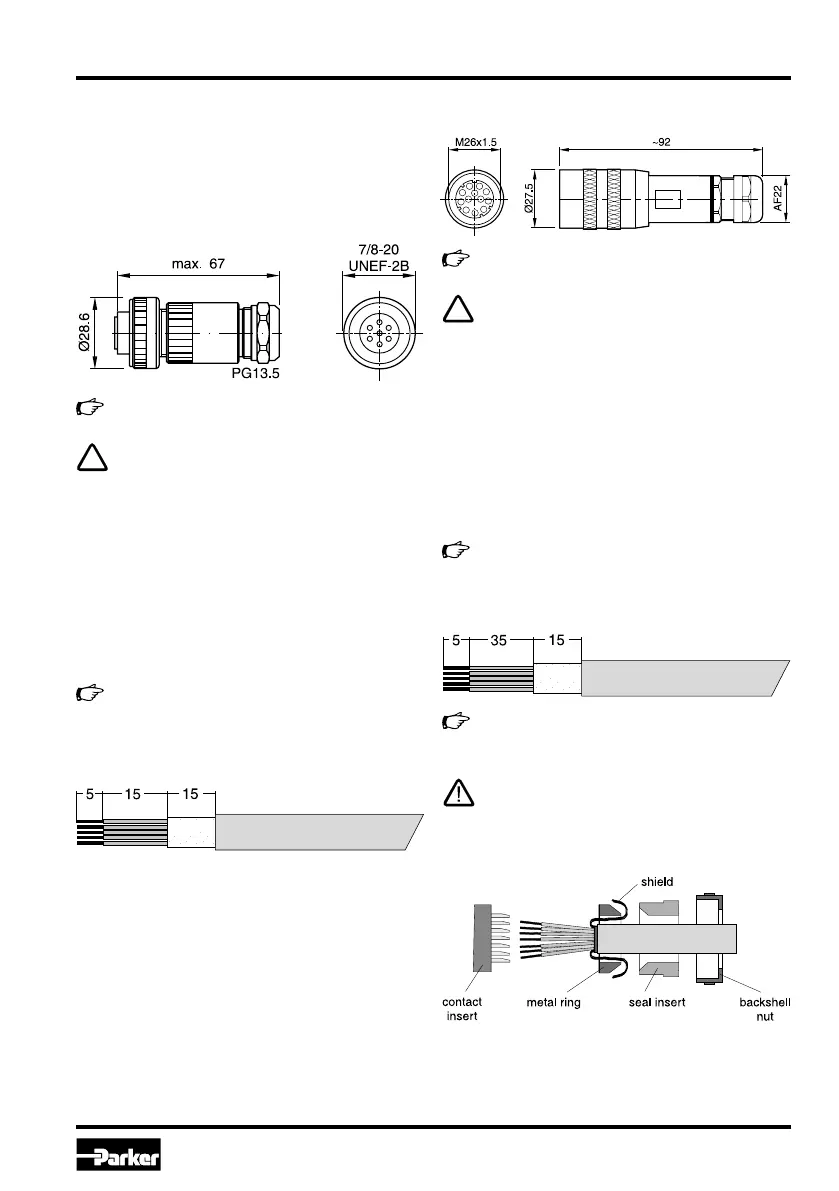

The connection Code 0 as well as Code 7 requires
a 6 + PE female connector EN 175201-804.
The female connector has to be ordered
separately under article nr. 5004072.
A female connector with metal housing is
required! Plastic made models may create
function problems due to insufficient EMC-
characteristics.
The connecting cable has to comply to the follow-
ing specification:
Cable type control cable, flexible,
7 conductors, overall braid
shield
Cross section min. AWG16
Outer dimension 8...12 mm
Cable length max. 50 m
For cable lengths > 50 m consult Parker.
The connection cable is coupled to the female
connector by solder joints.
Skinning lengths for the connecting cable:
The connection Code 5 requires a 11 + PE female
connector EN 175201-804.
The female connector has to be ordered
separately under article nr. 5004711.
A female connector with metal housing is
required! Plastic made models may create
function problems due to insufficient EMC-
characteristics.
The connecting cable has to comply to the follow-
ing specification:
Cable type control cable, flexible,
8 conductors, overall braid
shield
Cross section min. AWG16
Outer dimension 12...15 mm
Cable length max. 50 m
For cable lengths > 50 m consult Parker.
The connection cable is coupled to the female
connector by crimp contacts.
Skinning lengths for the connecting cable:
For the workmanlike termination of the crimp
contacts the tool # 932 507-001 – supplier:
Hirschmann – is required.
Do not disconnect cable socket under tension!
The shielding has to be assembled according the
outline below:
