HTG Series Integrated Hydrostatic Transmission
19
Parker Hannin Corporation
Hydraulic Pump/Motor Division
Greeneville, Tennessee USA
HY13-1524-002-M1/US
General Information

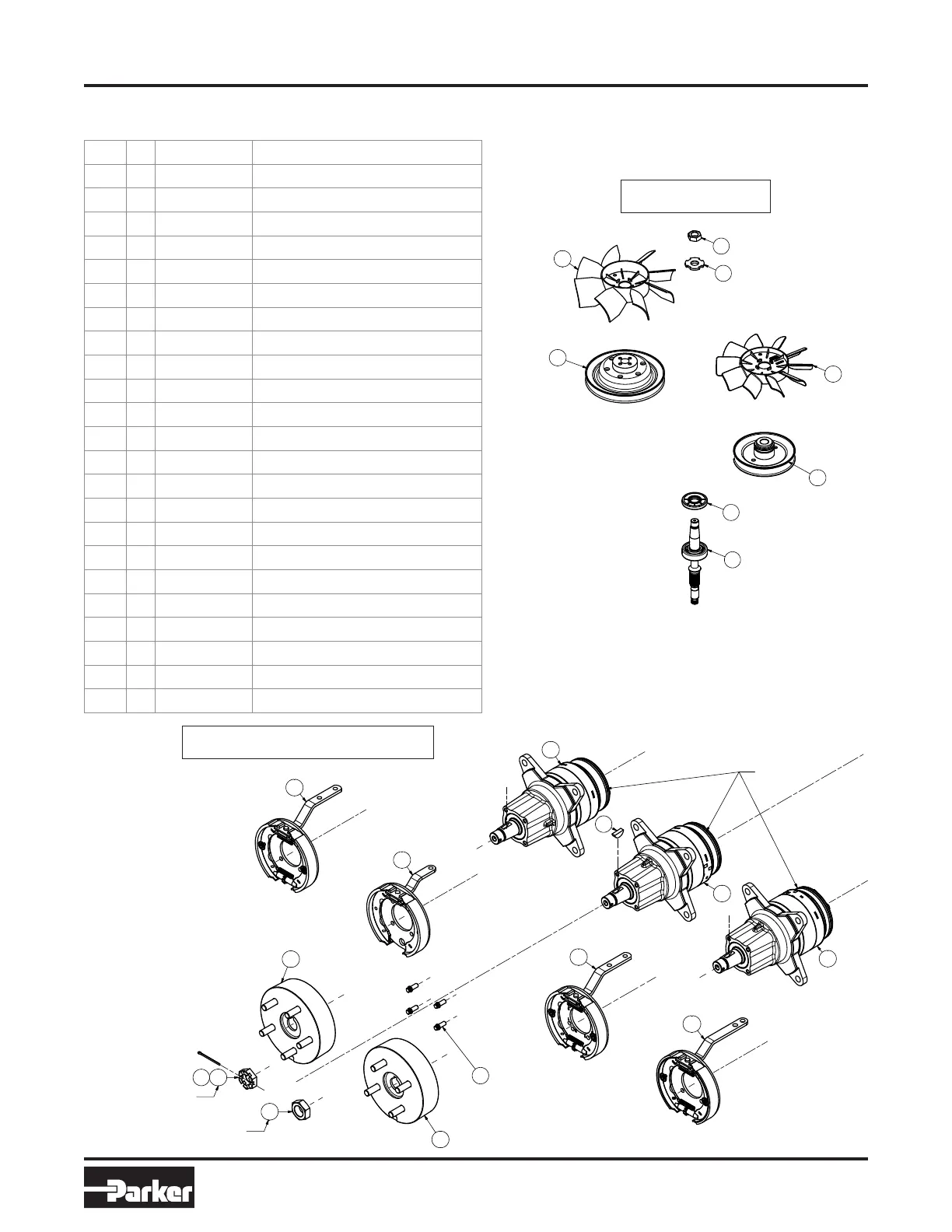

Right-hand Unit Exploded View & Parts List (page 2 of 4)
11
37A
37B
43B
43A
TORQUE TO
55-70 ft-lbs
51
59
49
14X
10A
28
52B
52A
52D
52C
53B
53A
THRU BRAKE ASSEMBLY
TO MOTOR HOUSING
TORQUE TO 25-28 ft-lbs
27
61A
61B
61C
THRU TOP
HOUSING
10B
TORQUE TO 200 ft-lbs MIN.
+ ROTATION TO ALIGN
FO
R COTTER PIN INSTALLATION
TORQUE TO 200 ft-lbs MIN.
Motor Assembly & Brake Detail
Fan & Pulley Detail
ITEM QTY PART NUMBER DESCRIPTION
1 4 020207 FLANGE HEAD CAP SCREW, 5/16-18 UNC-3A X .75
10A 1 025113 NUT 1-20 UNEF-2B
10B 1 025126 NUT 1-20 UNEF-2B
11 1 025164 NUT 5/8-18 UNF-2B
27 1 038016 WOODRUFF KEY 5/16 X 1
28 1 040204 COTTER PIN
32 1 401114 INTERNAL RETAINING RING (SHAFT SEAL)
37A 1 403855 PULLEY, Ø6.50 NOM, TAPERED HUB
37B 1 403856 PULLEY, Ø5.00 NOM, TAPERED HUB
43A 1 420067 FAN, Ø8.3
43B 1 420142 FAN, Ø7.8
49 1 477370 FAN SPACER
51 1 478086 SHAFT SEAL
52A 1 490164 BRAKE ASSEMBLY
52B 1 490169 BRAKE ASSEMBLY
52C 1 490225 BRAKE ASSEMBLY
52D 1 490242 BRAKE ASSEMBLY
53A 1 490216 BRAKE DRUM, 5 BOLT
53B 1 490218 BRAKE DRUM, 4 BOLT
59 1 HD019000-A1 SHAFT ASSEMBLY
61A 1 TG0240SD081HTAA MOTOR ASSEMBLY, 240cc/REV
61B 1 TG0280SD081HTAA MOTOR ASSEMBLY, 280cc/REV
61C 1 TG0310SD081HTAA MOTOR ASSEMBLY, 310cc/REV
