13
WARNING: This product can expose you to chemicals including lead or DEHP which are known to the state of California to cause cancer,
birth defects, and other reproductive harm. www.p65warnings.ca.gov
Catalog HY13-PMD600-SM/US
PGP/PGM 600 Series
Gear Pumps & Motors Service Manual
Assembly Instructions

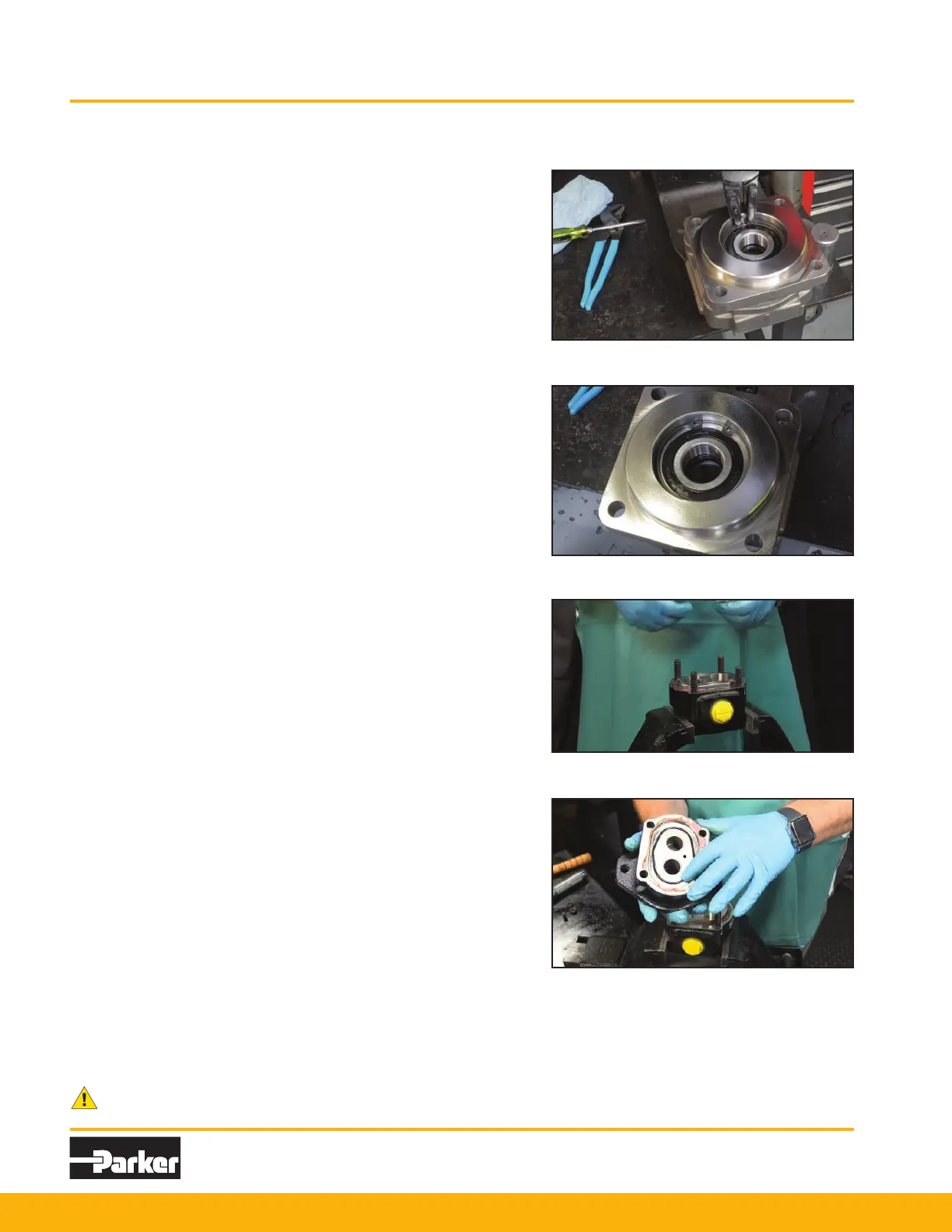

8) Mount shaft end cover facing down in a vise (Fig. 10).
9) Re-afx or replace section seal (Fig. 11).
Verify both sides of the section seal are free of
debris. If need to replace, grease the new section
seal and insert rmly into the grooves in both
sides of the gear housing.
7)
Assemble the snap ring
(Fig. 8 & 9)
. Using snap ring
pliers, seat new snap ring on top of bearing and lip
seal.
Figure 8
Figure 9
Figure 10
Figure 11
