PGP/PGM 600 Series
Gear Pumps & Motors Service Manual
Tool List
Arbor press Bearing puller (Owatonna Tool Co. M D - 956 or equivalent)
Awl Deburring tool (an old le with cutting teeth ground off)
1-1/2" Dia. steel ball No. 3 non-hardening sealant or equivalent
Clean, lintless cloths Permatex Aviation Form-A-Gasket
™
Machinist’s hammer Medium grit carborundurn stone
Soft hammer Scale (1/32" or 1/64" graduations)
Oil and grease Vise with 6" minimum opening
Snap ring pliers Seal removal tool (See A)
Prick punch Bushing installation tool (See B)
Small screw driver Special steel sleeve (See C)
Torque wrench
Bar for lip seal installation:
PGP/PGM610 use 1-5/8" dia. x 2" bar (22mm x 50mm) PGP/PGM640 use 2-1/2" dia. x 2" bar (32mm x 50mm)
PGP/PGM620 use 1-3/4" dia. x 2" bar (24mm x 50mm)

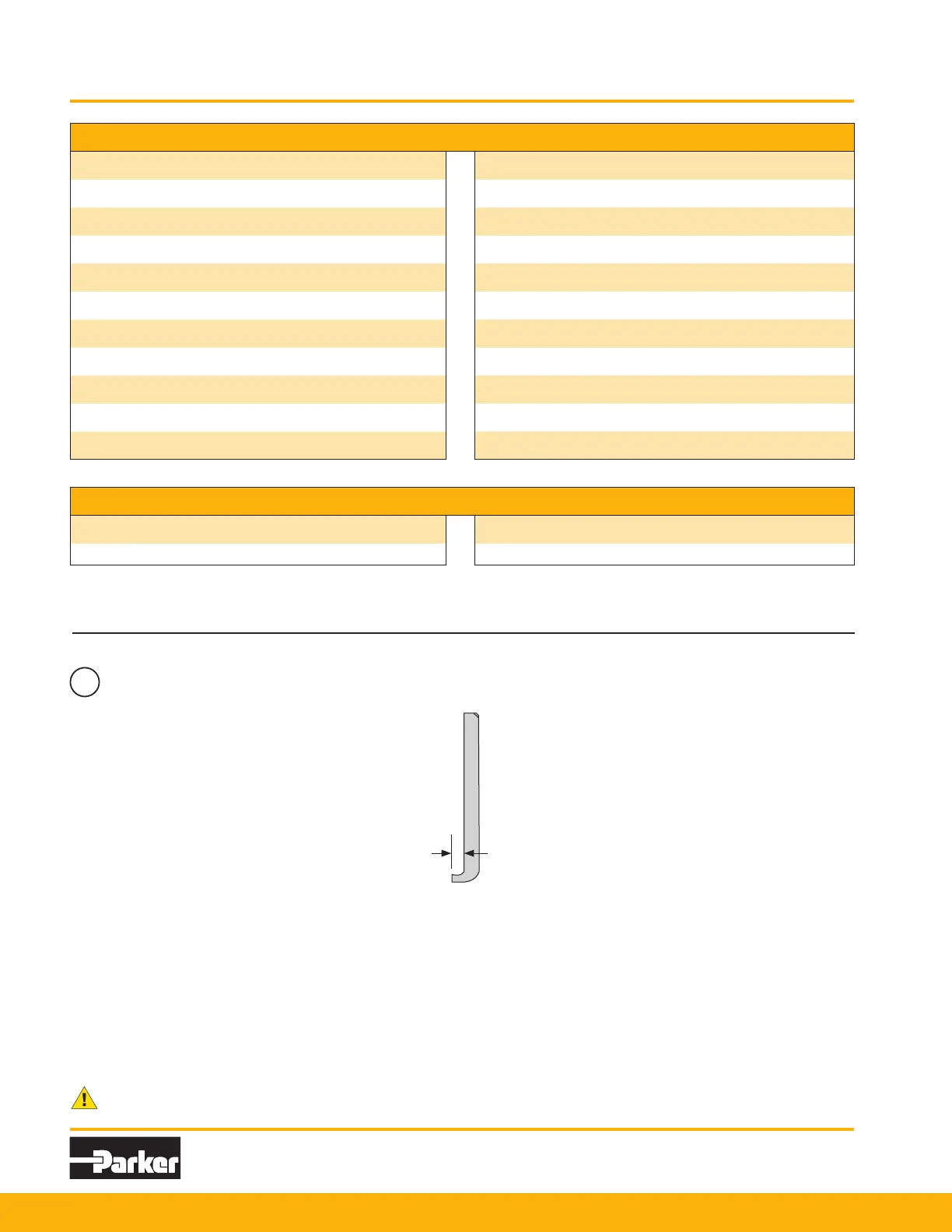

A
Seal Removal Tool
Easily made from an old screw driver. Heat the tip and bend as shown. Grind the tip to t the notch behind the shaft
seal.
1/4"
