Catalog HY13-PMD600-SM/US
PGP/PGM 600 Series
Gear Pumps & Motors Service Manual
Catalog HY13-PMD600-SM/US
General Information

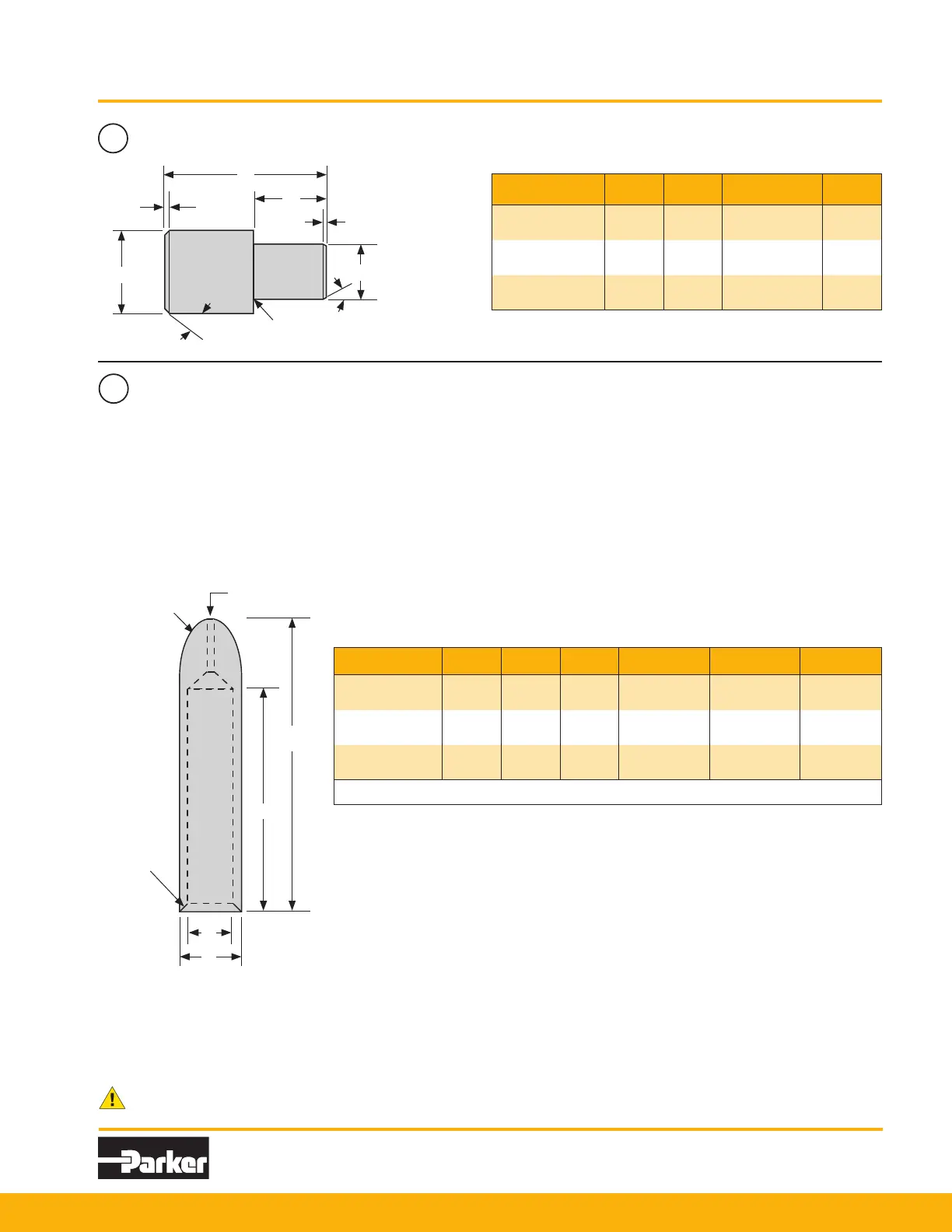

Special Steel Sleeve
The special steel sleeve is used to insert the drive shaft through the lip seal without damage and can be made from bar
stock:
PGP/PGM610: Use a 1" dia. x 3-1/4" bar
PGP/PGM620: Use a 1-3/8" dia. x 4-5/8" bar
PGP/PGM640: Use a 1" dia. x 4-5/8" bar
The drawing and chart give details for making this special tool.
Bushing Installation Tool: A.I.S.I 8620 Bearing Quality Steel Heat Treated
Pump/Motor A B
C
Radius
D Dia. E Dia.
F°
Chamfer
PGP/PGM610 1-7/8" 3" 9/16" .870"
+ .000"
- .002"
.610"
+ .000"
- .002"
.015" x 60°
PGP/PGM620 3-9/64" 4-21/64" 9/16" .925"
+ .000"
- .002"
.881"
+ .000
- .002"
.015" x 60°
PGP/PGM640 3-3/8" 4-1/2" 9/16" 1.290"
+ .000"
- .002"
1.250"
+ .000"
- .002"
.015" x 60°
PGP/PGM620 - Mylar Sleeve Part #8682-133-00G
C
B
Pump/Motor A B C Dia. D Dia.
PGP/PGM610 3.000" .854" .854"
+ .000"
- .002"
1.250
PGP/PGM620 3.000" 1.092" 1.172"
+ .000"
- .002"
1.250
PGP/PGM640 3.000" 1.280" 1.280"
+ .000"
- .002"
1.625
A
.06"
.06"
30°
30°
Grind Relief Allowable
B
C
D
B
A
E
F°
C Radius
1/4" Hole Drill
Through
D
