PH-8-HANDTOOL / PH-8-BENCHTOOL / PH-16-BENCHTOOL Operating Instructions
PKLPAI-8-16 Page 2 of 10
1.0 ASSEMBLY INSTRUCTIONS
1.1 Tool Selection:
PH-8-HANDTOOL / PH-8-BENCHTOOL
The „PH-8-HANDTOOL‟ and „PH-8-BENCHTOOL‟ Phastite Assembly Tools are suitable for the following sizes of Phastite product only,
and must not be used for any other application:
Metric Phastite Permanent Connectors for 6mm, 8mm,10mm and 12mm O.D. tube.
Inch Phastite Permanent Connectors for 1/4”, 3/8” and 1/2” O.D. tube.
A Phastite Permanent Connector can be a union straight, elbow, tee or cross.
The tool is also suitable to pre-assemble the termination sleeve of the following product.
Metric Phastite Termination Sleeves for 6mm, 8mm,10mm and 12mm O.D. tube.
Inch Phastite Termination Sleeves for 1/4”, 3/8” and 1/2” O.D. tube.
DANGER: The tool is not suitable for use for any other application than those stated above. Use of the tool for any other application may
result in equipment damage and/or personal injury.
PH-16-BENCHTOOL
The „PH-16-BENCHTOOL‟ Phastite Assembly Tool is suitable for the following sizes of Phastite product only, and must not be used for
any other application:
Metric Phastite Permanent Connectors for 12mm, 14mm,16mm, 18mm, 20mm, 22mm and 25mm O.D. tube.
Inch Phastite Permanent Connectors for 1/2”, 5/8”, 3/4", 7/8” and 1” O.D. tube.
A Phastite Permanent Connector can be a union straight, elbow, tee or cross.
The tool is also suitable to pre-assemble the termination sleeve of the following product.
Metric Phastite Permanent Connectors for 12mm, 14mm,16mm, 18mm, 20mm, 22mm and 25mm O.D. tube.
Inch Phastite Permanent Connectors for 1/2”, 5/8”, 3/4", 7/8” and 1” O.D. tube.
DANGER: The tool is not suitable for use for any other application than those stated above. Use of the tool for any other application may
result in equipment damage and/or personal injury.

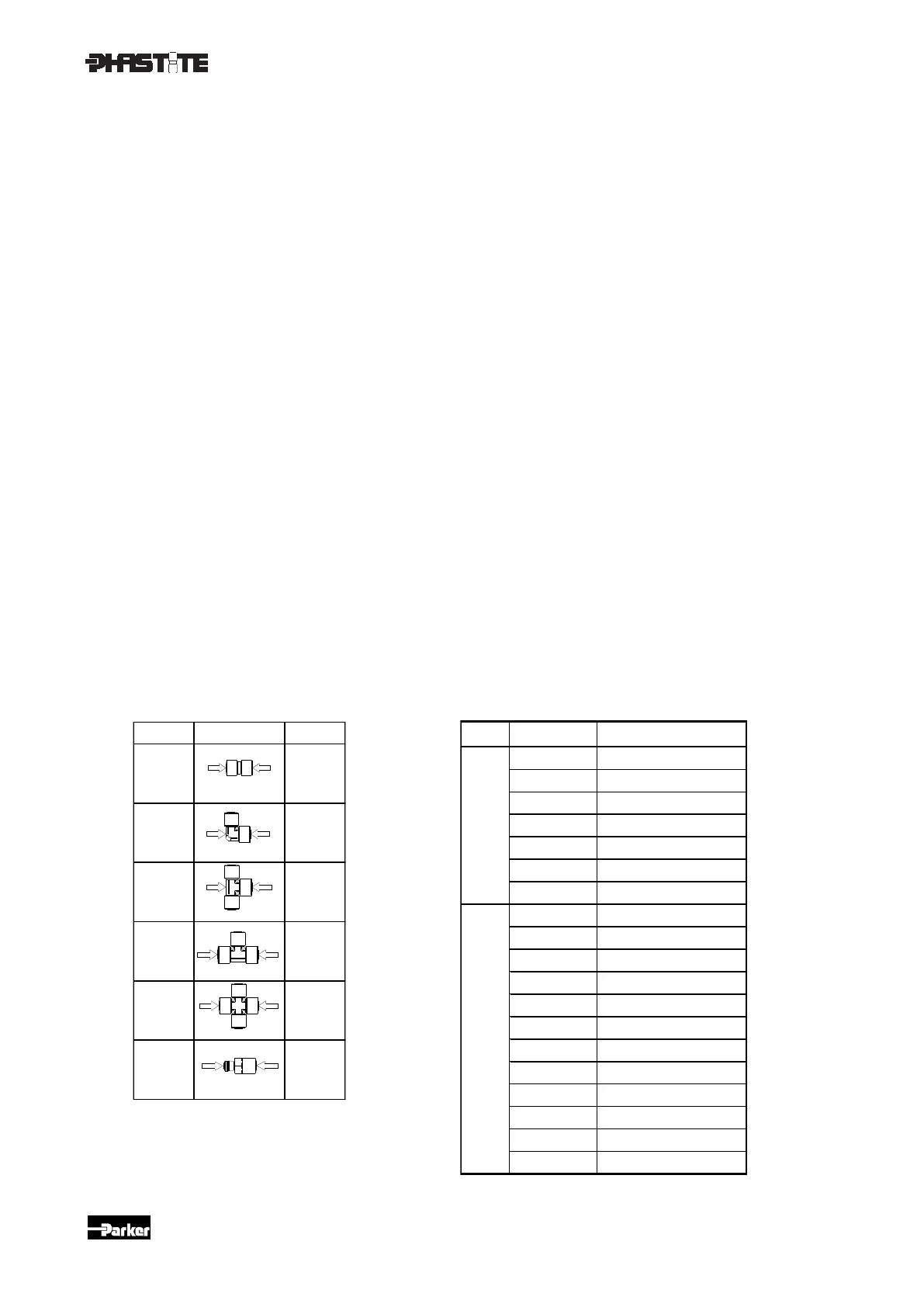

1.2 Jaw Insert Selection:
The following tables should be used for jaw insert selection.
Fixed Jaw Product Style. Moving Jaw
Straight
Elbow
Tee
Tee
Cross
Termination Sleave
C
B
B
A
A
Term
A
C
A
A
Shape
Shape
The „Shape‟ insert provided with each
tool is suitable for all sizes as per1.1.
DANGER: Incorrect jaw insert
selection may result in equipment
damage and/or personal injury.
Tool Tube O.D. Jaw Size
6mm 6mm / 1/4"
8mm 8mm
10mm 10mm / 3/8"
12mm 12mm / 1/2"
1/4" 6mm / 1/4"
3/8" 10mm / 3/8"
1/2" 12mm / 1/2"
12mm 12mm / 1/2"
14mm 14mm
16mm 16mm / 5/8"
18mm 18mm / 20mm / 3/4"
20mm 18mm / 20mm / 3/4"
22mm 22mm / 7/8"
25mm 25mm / 1"
1/2" 12mm / 1/2"
5/8" 16mm / 5/8"
3/4" 18mm / 20mm / 3/4"
7/8" 22mm / 7/8"
1" 25mm / 1"
PH-8-HANDTOOL
PH-8-BENCHTOOL
PH-16-BENCHTOOL
