PSE 120-350
Y Wc version, close the water circuit with the dryer stopped.

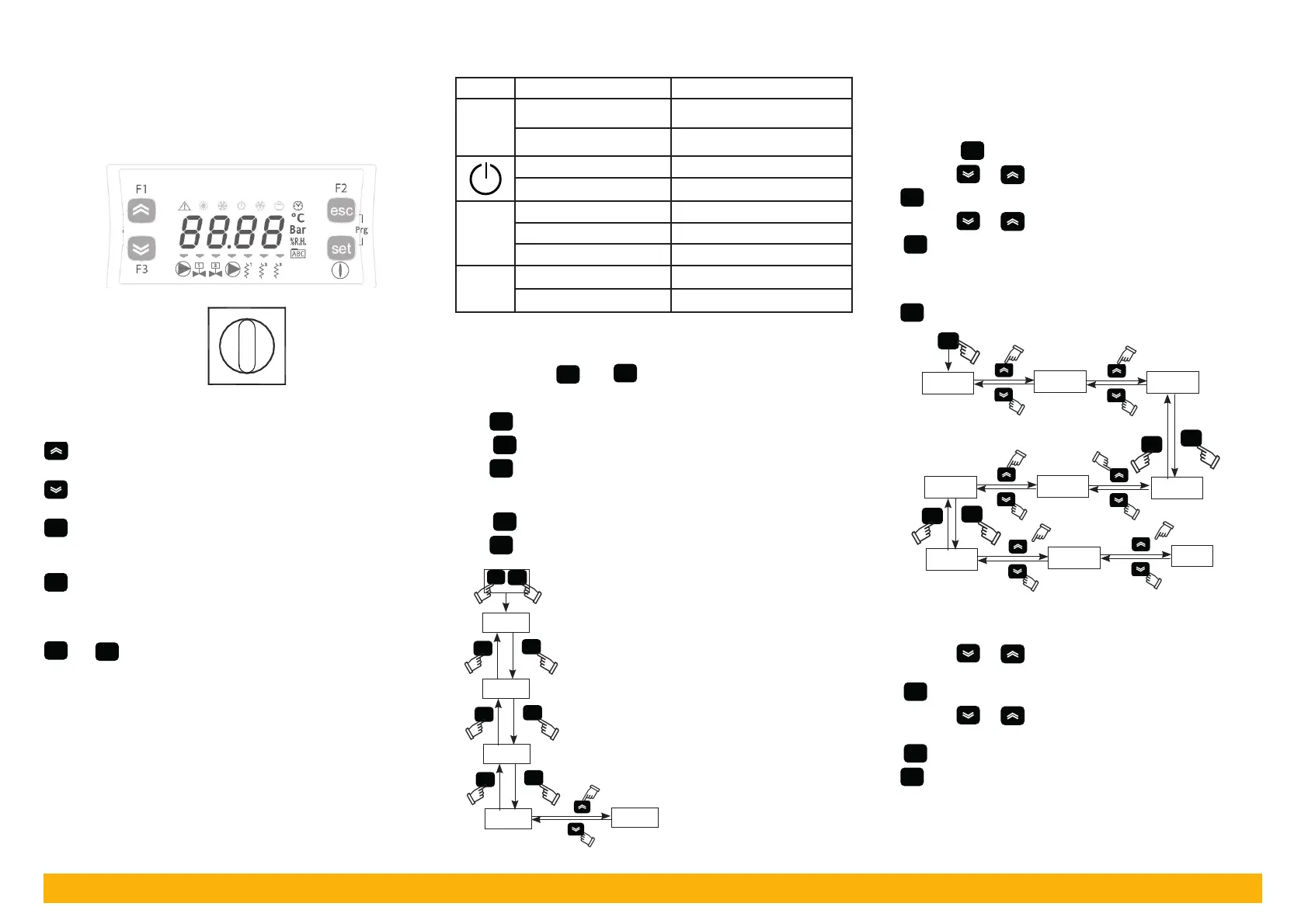

5 Control (PSE120-180)
5.1 Control panel
Fig.1
O
I
QS
1
1
2
2 3
QS Main power switch.
UP button: press to increment the value of a selected
editable parameter.
DOWN button: press to decrement the value of a selected
editable parameter.
esc
ESC button : to exit without saving;
returns to the previous level;
PRESSED FOR 5s. ALARM RESET.
set
SET button : to exit and saving/ con rm the value;
go to the next level;
enter on Set Menu;
PRESSED FOR 5s. START CHILLER.Scroll with
esc
and
set
. : press together ro enter on the parameters of the
program
5.2 Symbol
Symbol Symbol status Function
k
Lit up compressor ON
Off compressor OFF
Lit up dryer ON
FLashing dryer OFF
!
Lit up Alarm present
FLashing Warning present
Off No alarm present
q
Lit up Condensate drain ON
Off Condensate drain OFF
5.3 Parameter settings
Temperature measurement unit
How to set the temperature measurement unit.
Press the buttons
set
and
esc
together to enter on general
menu “PAr” .
Press
set
to enter on menu “ CF9“
Press
set
to enter on the parameter “ C_F“.
Press
set
to choose:
ON : Fahrenheit;
OFF: Celsius.
Press
set
to con rm.
Press
esc
to exit.
PAr
esc
set
Y
Y
set
Y
CF9
esc
Y
set
Y
C_F
esc
Y
set
Y
OFF
esc
Y
Y
Y
On
5.4 Confi guration condensate drain
There are three modes of operation:
a) CAPACITIVE = Automatic drainign using a capacitive sensor;
b) TIMED = programmable draining times;
c) CONTINUOUS (external) = if there is an external drain.
Press the button
set
to enter on menu of the direct parameters.
Use the arrows
or to  nd the menu “ Cd “
Press
set
to enter.
Use the arrows
or to  nd the parameter “ d3 “
Press
set
to choose the type of the drain:
0 = capacitive;
1 = timed;
2 = external.
Press
set
for  ve seconds to select the drain.
set
HiSt
Y
set
Y
d1
esc
Y
Y
Y
Al
Y
Y
Cd
d3
Y
Y
d2
Y
Y
set
Y
0
esc
Y
Y
Y
1
Y
Y
2
For the option (1) timed drain,it is possible to set the ON/OFF time of
the drain.
On menu “ Cd “
Use the arrows
or to  nd the parameter “d1” to chose the
opening time.
Press
set
to con rm.
Use the arrows
or to  nd the parameter “ d2 ” to choose
the closed time.
Press
set
to con rm.
Press
esc
to exit.
