Parker PSE User Manual

English
6/12
PSE 120-350

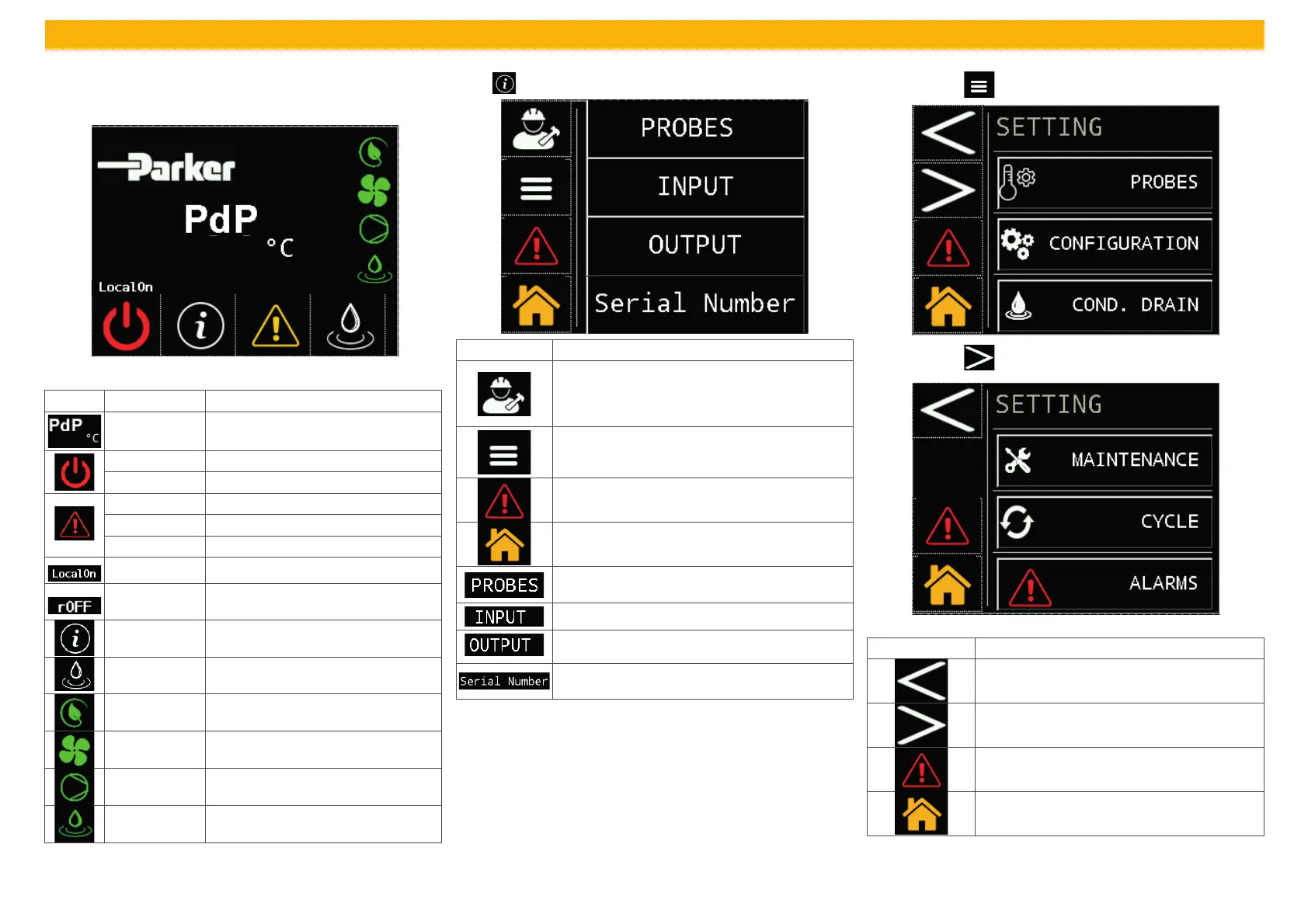

6 Control (PSE120-350) Touch
6.1 Control panel “Touch”
Fig.1
3.0
6.2 Symbol
Symbol Status symbol Function
3.0
- Dew point temperature
Green dryer ON
Red dryer OFF
Red Alarm present
Yellow Warning present
Absent No alarm/warning present
Local ON Touch ON/OFF command
rOFF
Remote control with clean contact on
the terminal board
- Touch to enter on information menu
- Touch to manually activate the drain
Acceso
It turns on with the dryer ON, compres-
sor OFF and without alarm (cycling)
Acceso It turns on when the fan is ON.
Acceso It turns on when the compressor is ON.
Acceso It turns on when the drain is ON.
6.3 Information menu
Touch form the control panel to enter on information menu
Symbol Function
Touch to enter the “service / Factory” menus: these
menus are password protected.
access is allowed only to Parker quali ed or certi ed
personnel.
Touch to enter the “parameter settings” menu: LB1,
HB1; C ° or F °; local or remote; Drain on / off times;
working hours.
Touch to see all available alarm / warning signals.
Touch to return to the control panel
Touch to see the brobes : B0, B2, B5, B8, P1,
Touch to see the digital input
Touch to see the digital output
Touch to get information on the dryer: serial number,
software version of the PLC / HMI
6.3.1 Setting parameter menu
Touch the button to eneter on menu 1
Touch the button for menu 2
Symbol Function
Touch to go back
Touch to go ahead
Touch to see all available alarm / warning signals.
Touch to return to the control panel
