Electronic Prop. Pressure/Throttle Valves
Series PCD 00A-400
Installation Manual
3
Parker Hannifin Corporation
Hydraulics Group

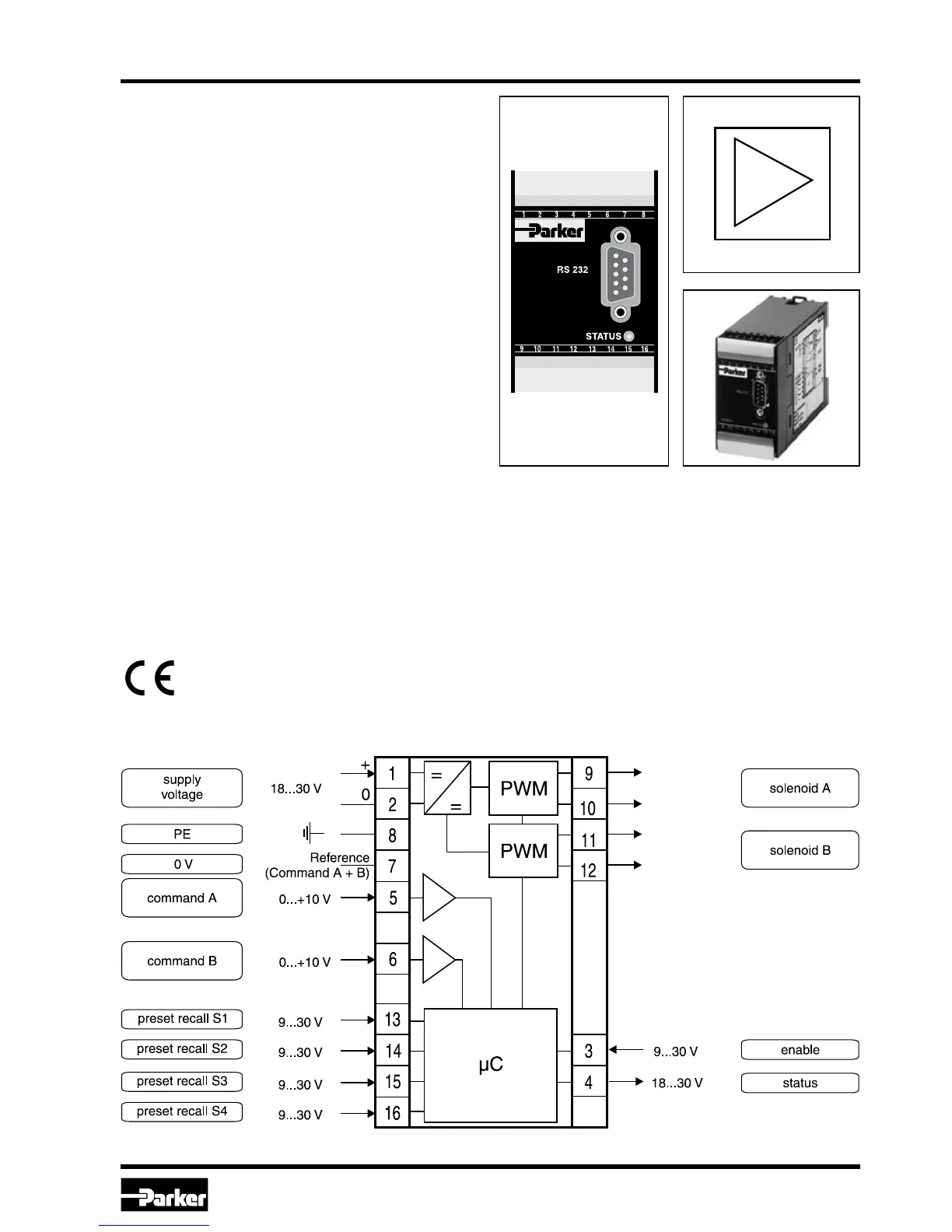

Diagram
Parker electronic modules series PCD00A-400 for
rail mounting are compact, easy to install and
provide time-saving wiring by disconnectable ter-
minals. The digital design of the circuit results in
good accuracy and optimal adaption for propor-
tional pressure/flow control valves by a comfortable
interface program.
Features
The described electronic unit combines all neces-
sary functions for the optimal operation of two
proportional pressure/flow control valves (series
R*V, RE*E*W, RE06M*W, DUR, PRPM, VBY, VMY,
TDA, TEA). The most important features are:
• Digitalcircuitdesign
• Twoindependentoperableampliers
• Fourparameterizablepresetrecallchannels
• Constantcurrentcontrol
• Twoinputstages0...10V
• Statusoutput
• Twoup/downrampfunctions
• Enableinputforsolenoiddriver
• Statusindicator
• ParameteringbyserialinterfaceRS232C
• Connectionbydisconnectableterminals
• Compatible to the relevant European EMC
standards
• ComfortablePCusersoftware,freeofcharge:
www.parker.com/euro_hcd
see "Support", or directly at
www.parker.com/propxd.
