Commands
Additionally to the external analogue command
inputs (Pins 5-7 and 6-7), the PCD00A-400-elec-
tronic includes, for each channel, two internal
programmable command values S1 to S4, which
can be activated by the switching inputs (Pins 13,
14, 15, 16). S1 (Pin 13) has a higher priority than

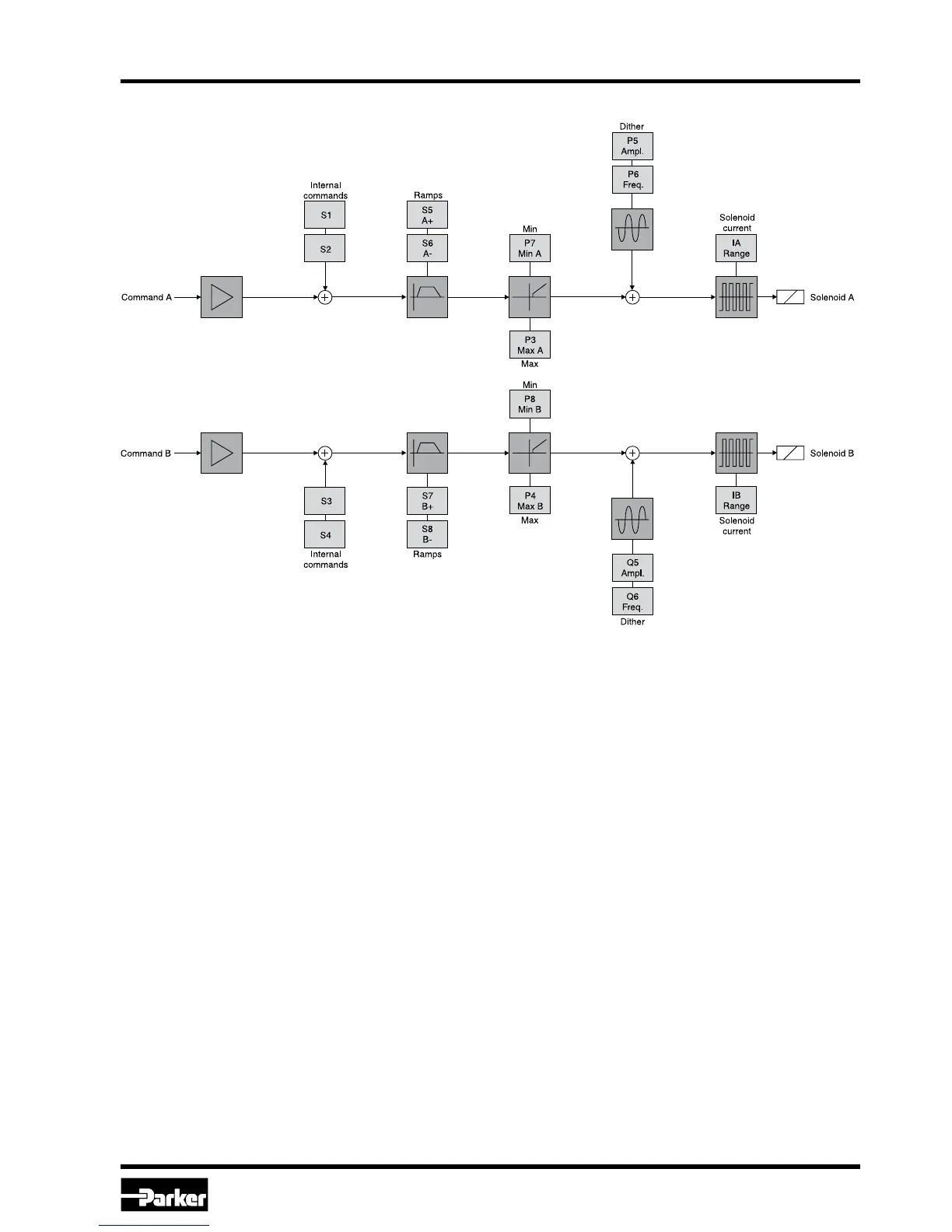

Signal Flow Diagram A
S2 (Pin 14) and S3 (Pin 15) has a higher priority
than S4 (Pin 16).
If only one amplifier channel is used, it is possible
to switch all four internal commands to this channel
by setting parameter N=1.
