Electronic Prop. Pressure/Throttle Valves
Series PCD 00A-400
Installation Manual
7
Parker Hannifin Corporation
Hydraulics Group

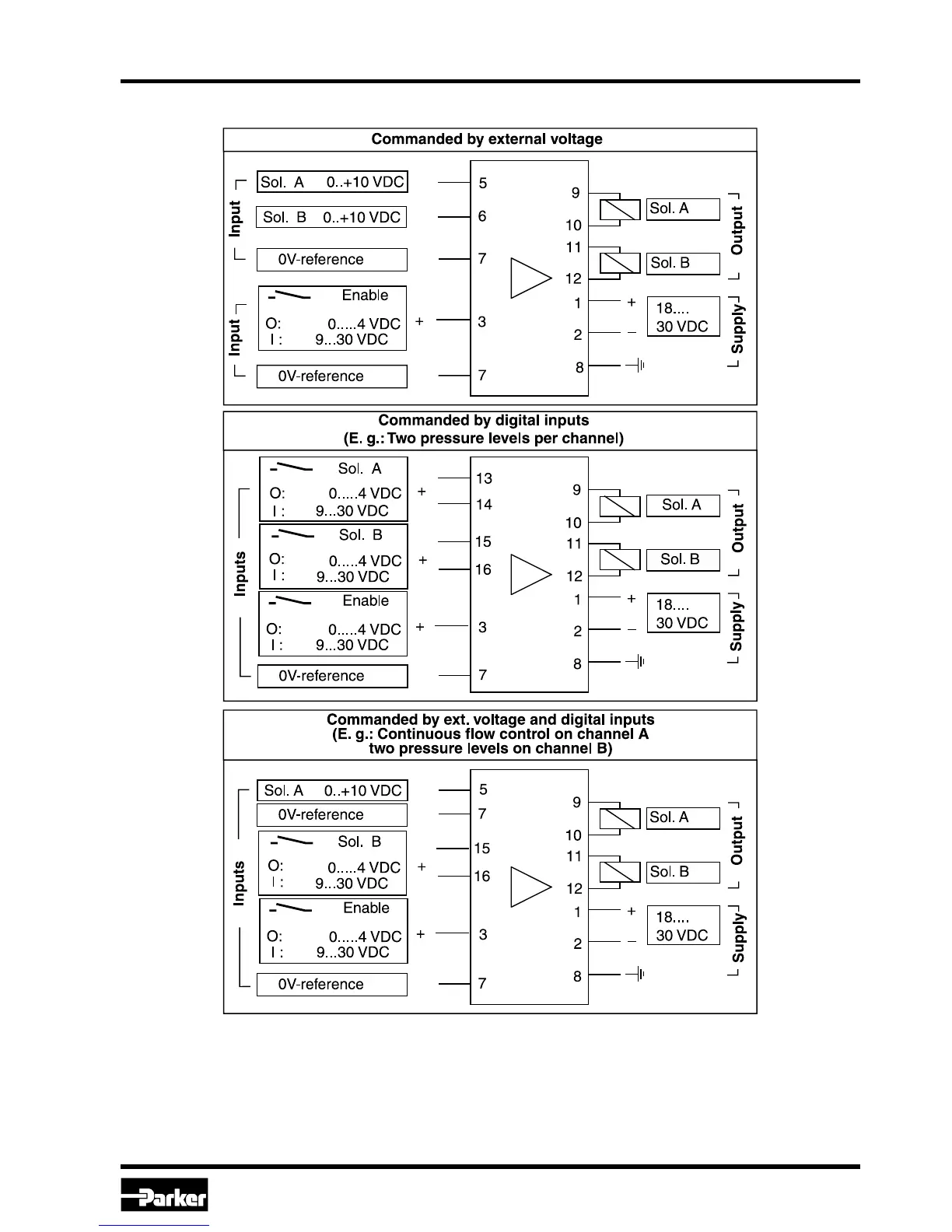

Connection Examples
Certainly combinations and / or modifications of these examples are possible. The priority of the digital
inputs over the analogue inputs has to be kept in mind! Via parameter N=1 all four digital inputs may
be dedicated to channel A.
